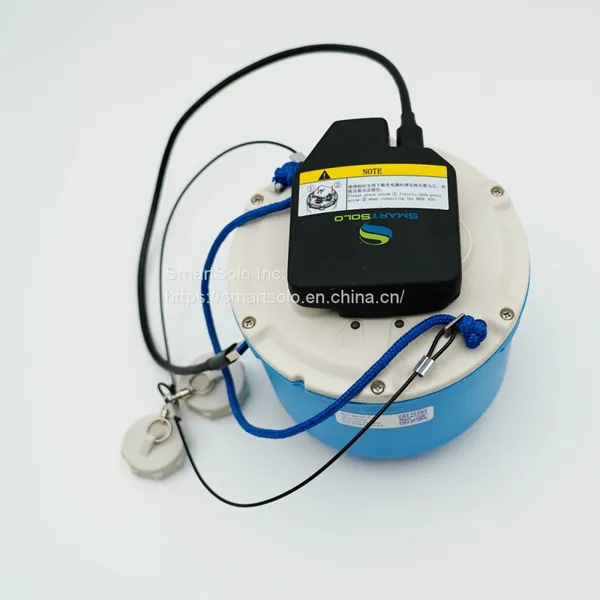

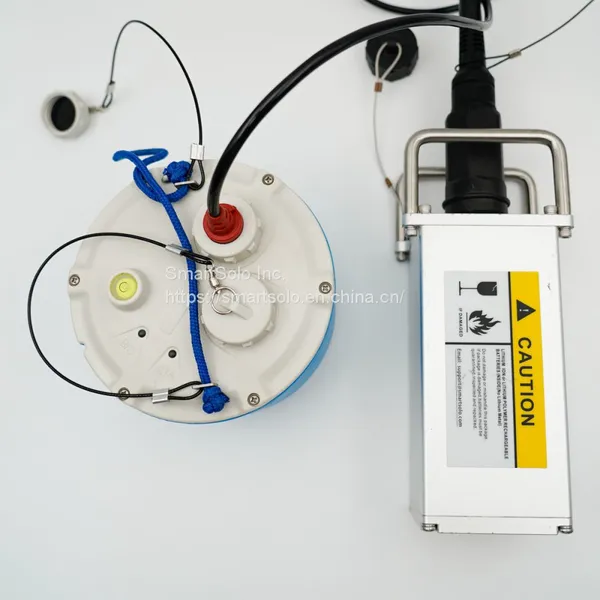

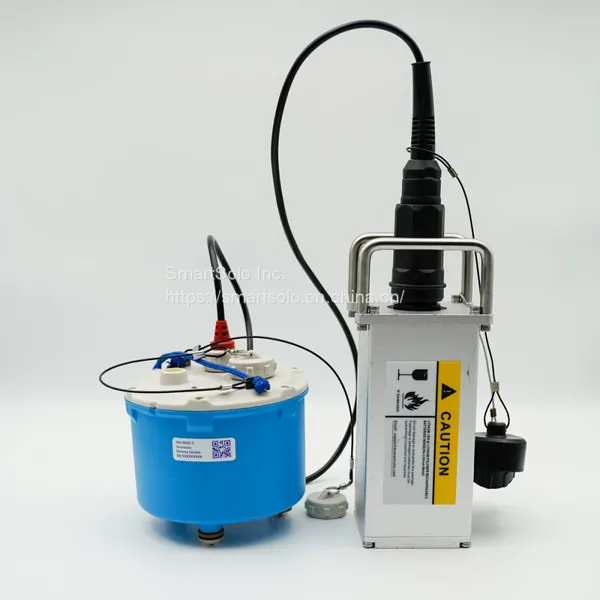

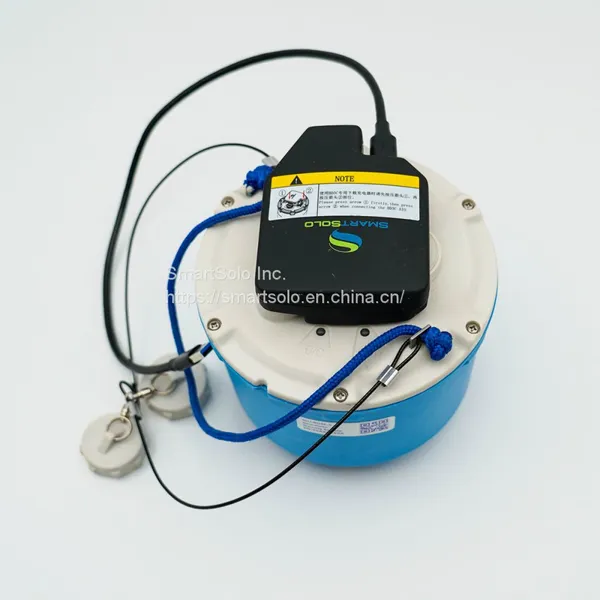

Two Horizontal One Vertical Geophones Three Components Seismic Sensor for Mobile Station Natural Earthquake Monitoring
US$ 2000 - 2300
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
SmartSolo
Place of Origin:
China
Model Number:
IGU-1BD3C
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
30 days
Related Products
-
Real-time Wireless Microtremor Method Surface Wave Monitor for Geothermal ExplorationUS$ 300 - 420MOQ: 1 Piece -
Well-known Geophysical Geophone 3 C Seismic Sensor for Transient Surface WavesurveyUS$ 2000 - 2300MOQ: 1 Piece
-
DTCC 2Hz to 100Hz Geophone SampleUS$ 15 - 70MOQ: 1 Piece
-
Simply Realtime Data Transmit Seismic Microtremor For Nearsurface Geophysical InvestigationUS$ 3560 - 4560MOQ: 1 Piece
-
Vertical Low Price Waterproof Geological Seismograph Geophone String With ConnectorUS$ 20 - 50MOQ: 1 Piece
Brand Name
SmartSolo
Place of Origin
China
Model Number
IGU-1BD3C
Production Description

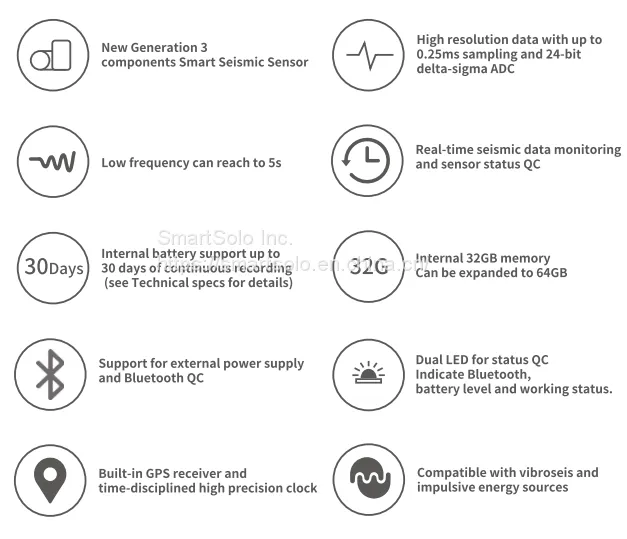

IGU-BD3C-5 is a low-cost, broadband, and micro power consumption broadband smart seismic sensor.Based on the high-sensitivity geophone DT-SOLO——proudly produced by DTCC, and incorporated with electronics and software technologies in mobile internet era.With internationally well-received and reliable electronic spread spectrum technology, the frequency band range of lGU-BD3C-5 is up to 0.2Hz-150Hz.Due to its high reliability and high level of customization of storage and power capacity, it is very suitable not only for traditional active seismic exploration, but also for long-period observation of natural micro seismic, transient surface wave survey and mobile station natural earthquake monitoring, etc.
Specification
Physical Specifications
ADC resolution: 24 bits
Sample intervals: 0.25, 0.5, 1, 2, 4, 8,10, 20 ms
Self-noise Level: Whole frequency band lower than the NHNM curve，5s~1Hz lower than the NLNM curve
Operating temperature: -40℃ ~ +70℃
Waterproof: IP67
Physical Size: φ158mm × 160mm (w/o spike)
Weight: 2.8 kg (Including internal battery and spike)
Data Storage: 32GB (can be expanded to 64GB)
Operating Life@25℃: 30 days Continuous / 60 days Segmented (12hours ON/12hours SLEEP)
External Power Supply: 7V~15V DC (single supply)
Bluetooth QC: Available
Data Harvesting: USB 3.0
Charging Temperature Range: +3˚C ~ +45˚C
Seismic data channel(s): 3
ADC resolution: 24 bits
Sample intervals: 0.25, 0.5, 1, 2, 4, 8,10, 20 ms
Self-noise Level: Whole frequency band lower than the NHNM curve，5s~1Hz lower than the NLNM curve
Operating temperature: -40℃ ~ +70℃
Waterproof: IP67
Physical Size: φ158mm × 160mm (w/o spike)
Weight: 2.8 kg (Including internal battery and spike)
Data Storage: 32GB (can be expanded to 64GB)
Operating Life@25℃: 30 days Continuous / 60 days Segmented (12hours ON/12hours SLEEP)
External Power Supply: 7V~15V DC (single supply)
Bluetooth QC: Available
Data Harvesting: USB 3.0
Charging Temperature Range: +3˚C ~ +45˚C
Sensor Specifications
Frequency Bandwidth: 0.2Hz~150Hz
Distortion:Sensitivity: 200V/m/s (5.08 V/in/s)
Remark: All parameters are specified at +22℃ in the vertical position and horizontal position for horizontal geophone unless
otherwise stated.
Distortion:Sensitivity: 200V/m/s (5.08 V/in/s)
Remark: All parameters are specified at +22℃ in the vertical position and horizontal position for horizontal geophone unless
otherwise stated.
Channel Performance
(@ 2ms sample interval, 31.25 Hz, 25°C, unless otherwise indicated)
Maximum Input Signal: ±2.5Vpeak @ Gain 0dB
Instantanteous Dynamic Range: 120dB@ Gain 0dB
Common Mode Rejection: >100dB
Gain Accuracy:GPS Time Standard: 1 ppm
Timing Accuracy: ± 10µs, GPS Disciplined
Cross Feed: Inter-channel Phase Offset:Transverse Vibration Rejection: Better than 1%
Inter-channel Amplitude Coherence: 5%
System Dynamic Range: 140dB
Frequency Response: 0~1652Hz
Maximum Input Signal: ±2.5Vpeak @ Gain 0dB
Instantanteous Dynamic Range: 120dB@ Gain 0dB
Common Mode Rejection: >100dB
Gain Accuracy:GPS Time Standard: 1 ppm
Timing Accuracy: ± 10µs, GPS Disciplined
Cross Feed: Inter-channel Phase Offset:Transverse Vibration Rejection: Better than 1%
Inter-channel Amplitude Coherence: 5%
System Dynamic Range: 140dB
Frequency Response: 0~1652Hz
