Home > Products > geophone element > Top Brand Hot Sell Good Quality High Sensitivity DT-SOLO OMNI 15Hz (HP315) Geophone Element

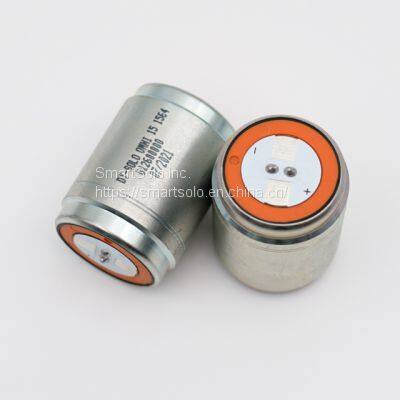

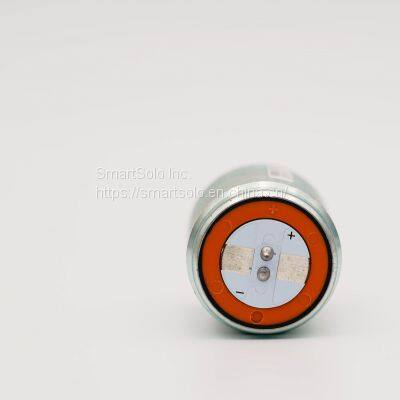

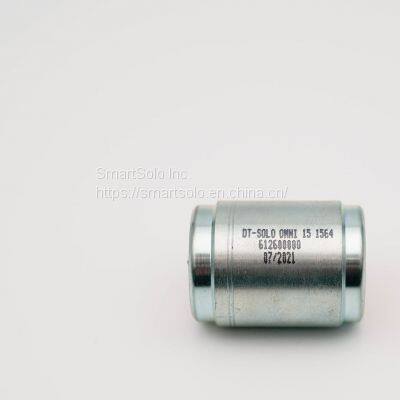

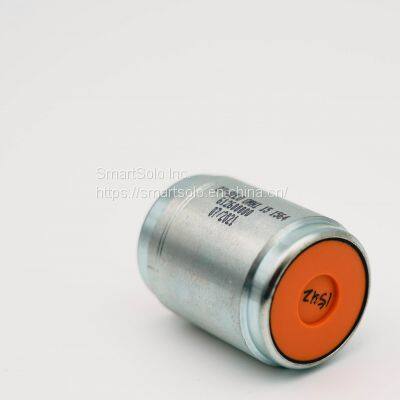

Top Brand Hot Sell Good Quality High Sensitivity DT-SOLO OMNI 15Hz (HP315) Geophone Element
- Shenzhen
- T/T L/C D/P D/A Credit Card PayPal Cash Escrow
- 10 days
You May Like
-
Top Brand DTCC Seismograph Seismic Sensor Vertical Horizontal 2Hz Geophone Element 2hz
-
High Sensitivity Horizontal 10Hz Seismic Geophone Element for Three Component Seismic Sensor
-
Two Horizontal One Vertical Geophones Three Components Seismic Sensor for Mobile Station Natural Earthquake Monitoring
-
DTCC 2Hz to 100Hz Geophone Sample
-
Simply Realtime Data Transmit Seismic Microtremor For Nearsurface Geophysical Investigation
-
Vertical Low Price Waterproof Geological Seismograph Geophone String With Connector
Product Details
| Brand Name | DTCC | Place of Origin | China | |
| Model Number | HP315 |
Product Description
Product Paramenters
| (All parameters are specified at +25° C) | ||
| Frequency | Natural Frequency (Fn) | 15Hz |
| Tolerance | ﹢10%，﹣5% | |
| Max. Tilt Angle for Specified | Horizontal to ± 90° | |
| Spurious Frequency | >240Hz | |
| Distortion | Distortion | <0.2%（15 Hz with 0.2 in/s p-p） |
| <0.30%（15 Hz with 0.7 in/s p-p） | ||
| Damping | Open Circuit Damping | 0.6 |
| Damping with 20KΩ load | 0.7 | |
| Tolerance | ± 10% | |
| Coil Resistance | Standard | 1564ohm |
| Resistance with 20KΩ load | 1455ohm | |
| Tolerance | ± 5% | |
| Sensitivity | Open Circuit Intrinsic Voltage Sensitivity | 74.8V/m/s (1.89 V/in/s) |
| Sensitivity with 20KΩ load | 69.6 V/m/s (1.767 V/in/s) | |
| Tolerance | ﹢5%，﹣10% | |
| Physical Characteristics | Moving Mass | 13.2g (0.47 oz) |
| Max. Coil Excursion p.p. | 4.06 mm (0.16 in) | |
| Min. Coil Excursion p-p | 1.02 mm (0.04 in) | |
| Diameter | 30.5 mm (1.2 in) | |
| Height | 40.7 mm (1.6 in) | |
| Weight | 130 g (4.60 oz) | |
| Operating Temperature Range | ﹣40℃ - +90℃ | |
| Warranty excludes damage caused by high voltage and physical damage to the element case. SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE. | ||

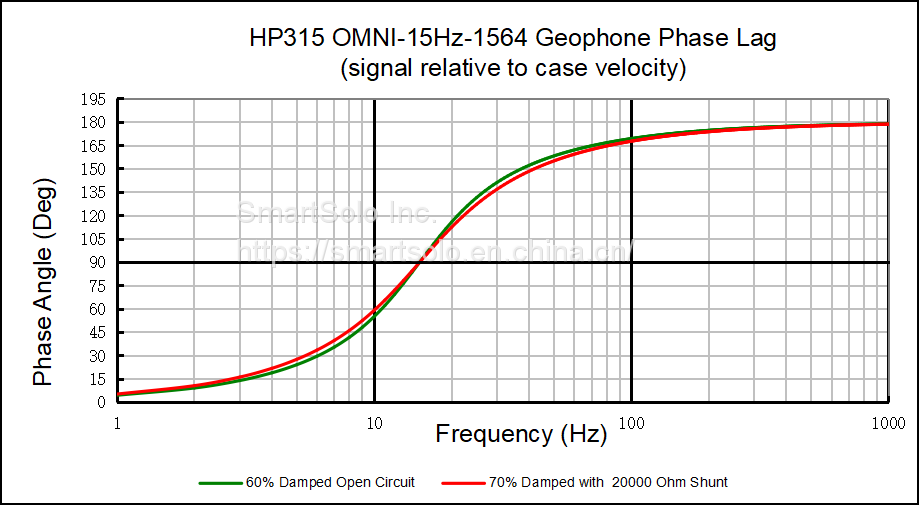

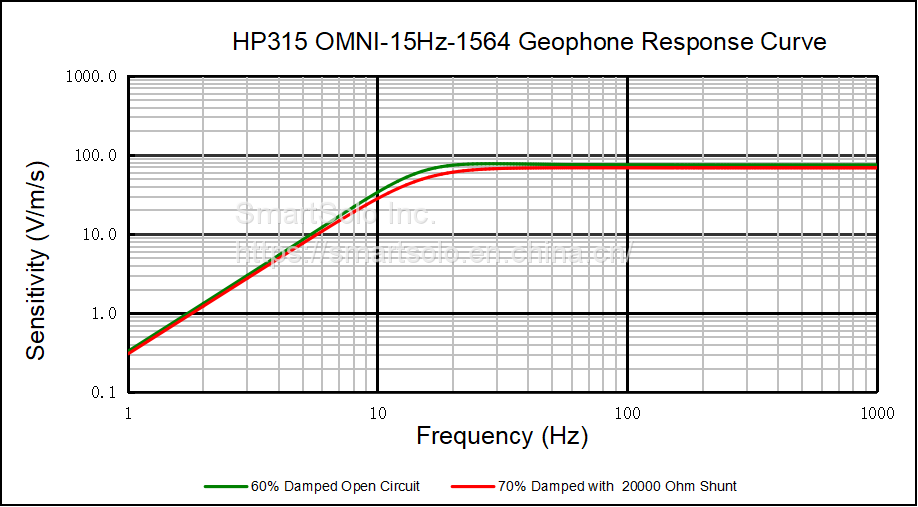

HP315 15Hz Omni Direction Geophone Response Curve and Phase Lag
Why Choose US
Geophone Element DT-SOLO OMNI 15Hz is one of our flagship geophone elements.
Company Profile

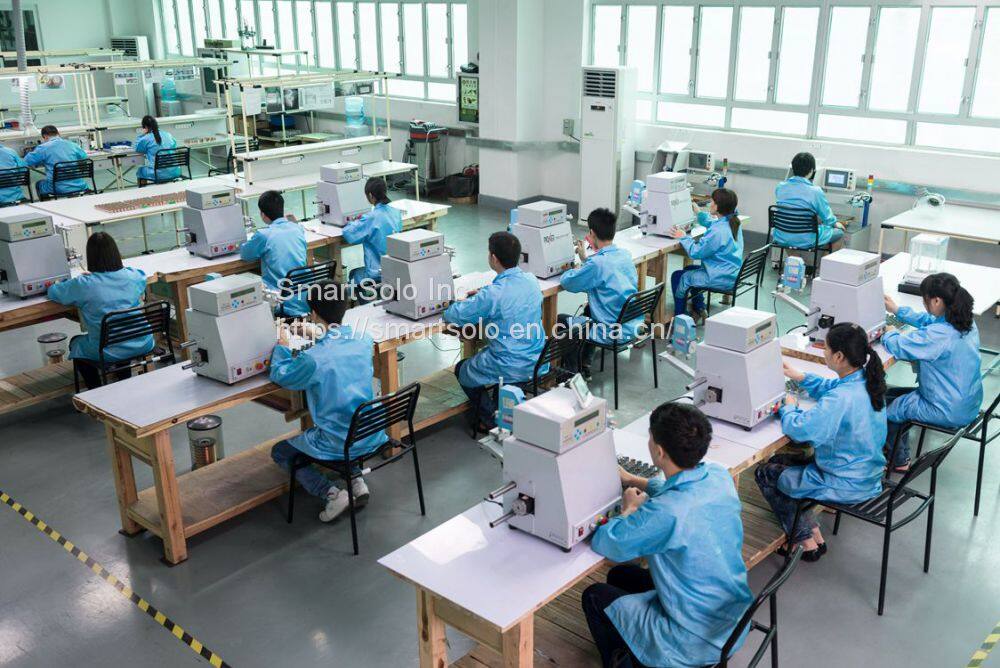

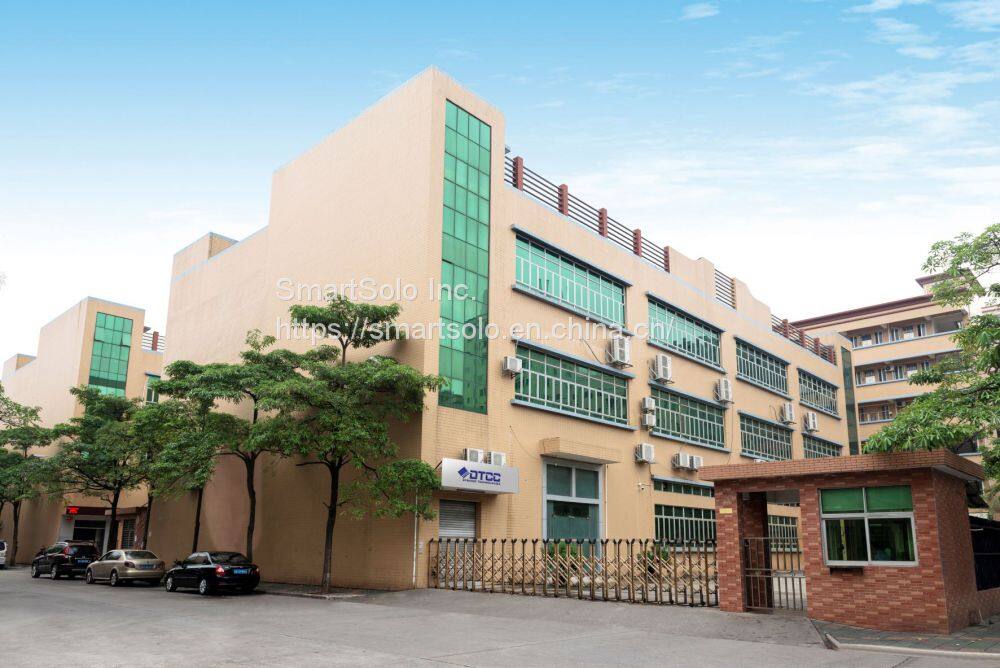

The DTCC Group was formed in 1999, with its headquarters located in Calgary, Canada. It is a manufacturer of vibration sensing and measuring equipment. This equipment, which uses “internet of Things” technology is designed for use in unusual and challenging environments.The DTCC Group has an international presence. in addition to the corporate, training and marketing facilities in North America, we have a Business Development Center located in Beijing, together with a Research, Development and Manufacturing Facility in Shenzhen. Aditional production locations are in Langfang, Hebei and Dongguan, Guangdong.DTCC also has offices and subsidiaries in several other countries round the world. Our product ranges from Geophones, Geophone Strings available in Land, Marsh,3C, Hydrophones, Dual Component for transition and marine seismic.Digital cables for Land, Marsh and Transition Zone for the most widely used recording systems. Leader wire and connectors of all types used in seismic acquisition.
