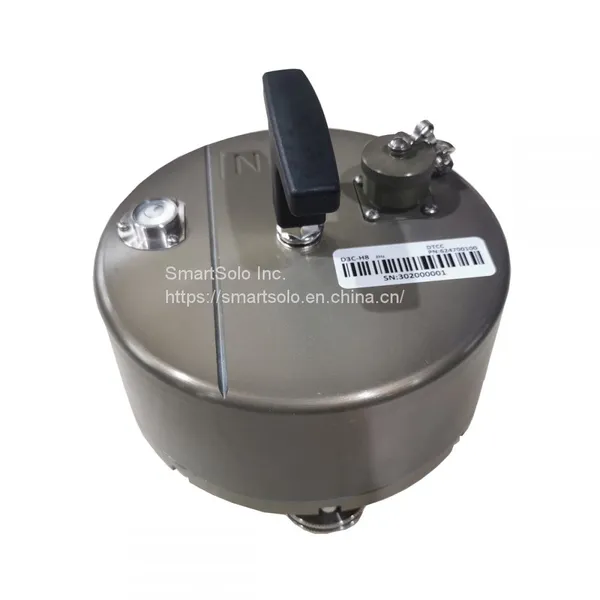

Help CenterTop Brand DTCC Seismograph Seismic Sensor Vertical Horizontal 2Hz Geophone Element 2hz
Related Products
-
High Sensitivity Horizontal 10Hz Seismic Geophone Element for Three Component Seismic SensorUS$ 40 - 70MOQ: 1 Piece -
DTCC 2Hz to 100Hz Geophone SampleUS$ 15 - 70MOQ: 1 Piece
-
China Manufacture 4.5 Hz Horizontal Vertical Seismic Geophone Element for 3C Seismic Survey EquipmentUS$ 20 - 30MOQ: 1 Piece
-
4.5Hz Horizontal Seismic Geophone Element for 3C Seismic Survey EquipmentUS$ 20 - 30MOQ: 1 Piece
-
Top Brand Hot Sell Good Quality High Sensitivity DT-SOLO OMNI 15Hz (HP315) Geophone ElementUS$ 40 - 70MOQ: 1 Piece
Product Paramenters
| (All parameters are specified at +20° C in the vertical position unless otherwise stated.) | ||
| Frequency | Natural Frequency (Fn) | 2Hz |
| Tolerance | ±15% | |
| Spurious Frequency | - | |
| Distortion | Distortion | |
| measured at 12 Hz with 0.7 in/s p-p | ||
| Damping | Open Circuit Damping | 0.7 |
| Tolerance | ±15% | |
| Coil Resistance | Standard | 6000ohm |
| Tolerance | ± 5% | |
| Sensitivity | Open Circuit Intrinsic Voltage Sensitivity | 260 V/m/s (6.60 V/in/s) |
| Tolerance | ±10% | |
| Physical Characteristics |
Moving Mass | 60 g (2.12 oz) |
| Max. Coil Excursion p.p. | 3mm (0.12 in) | |
| Diameter | 38.5 mm (1.52 in) | |
| Height | 47mm (1.85 in) | |
| Weight | 260 g (9.17 oz) | |
| Warranty excludes damage caused by high voltage and physical damage to the element case. SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE. | ||

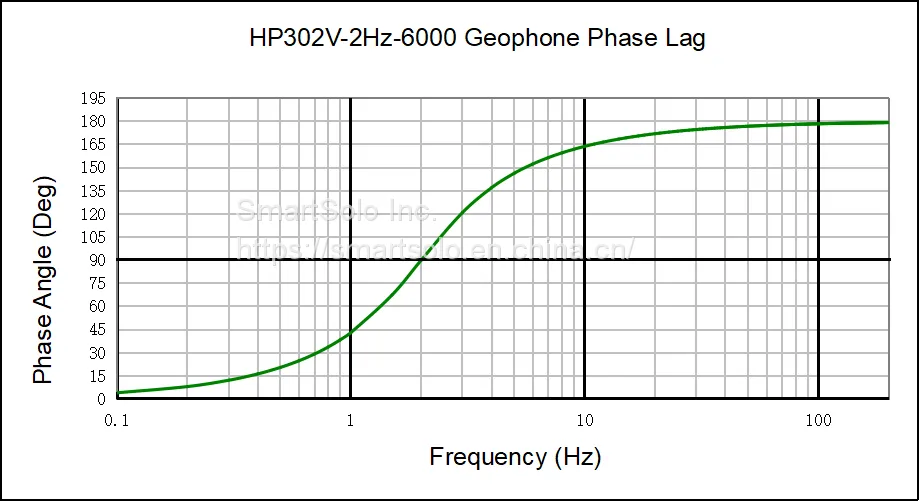

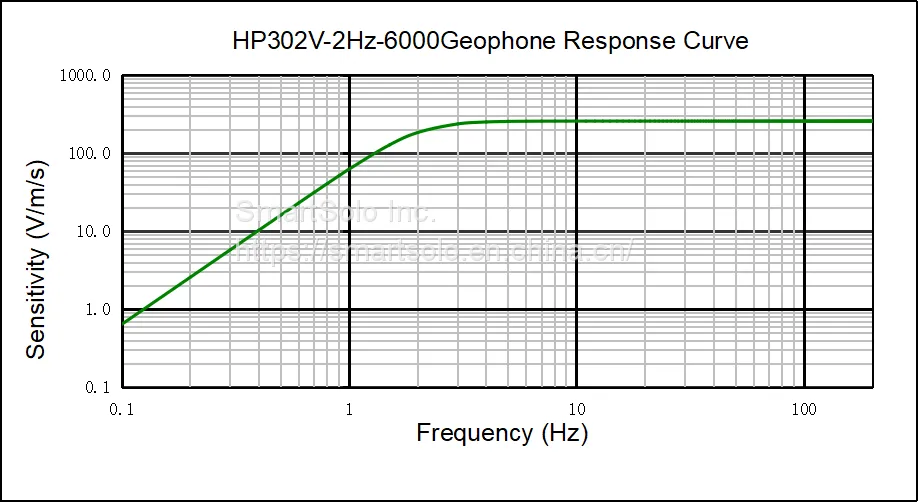

HP302 2Hz Geophone Response Curve and Phase Lag
Why Choose US
Geophone Element DT-SOLO OMNI 15Hz is one of our flagship geophone elements.
Company Profile
The DTCC Group was formed in 1999, with its headquarters located in Calgary, Canada. It is a manufacturer of vibration sensing and measuring equipment. This equipment, which uses “internet of Things” technology is designed for use in unusual and challenging environments.The DTCC Group has an international presence. in addition to the corporate, training and marketing facilities in North America, we have a Business Development Center located in Beijing, together with a Research, Development and Manufacturing Facility in Shenzhen. Aditional production locations are in Langfang, Hebei and Dongguan, Guangdong.DTCC also has offices and subsidiaries in several other countries round the world. Our product ranges from Geophones, Geophone Strings available in Land, Marsh,3C, Hydrophones, Dual Component for transition and marine seismic.Digital cables for Land, Marsh and Transition Zone for the most widely used recording systems. Leader wire and connectors of all types used in seismic acquisition.
