4.5Hz Horizontal Seismic Geophone Element for 3C Seismic Survey Equipment
US$ 20 - 30
/ Piece
1 Piece(Min. Order)
- Shenzhen
- T/T L/C D/P D/A Credit Card PayPal Cash Escrow
- 10 days
You May Like
-
Well-known Geophysical Geophone 3 C Seismic Sensor for Transient Surface Wavesurvey
-
Top Brand Hot Sell Good Quality High Sensitivity DT-SOLO OMNI 15Hz (HP315) Geophone Element
-
Top Brand DTCC Seismograph Seismic Sensor Vertical Horizontal 2Hz Geophone Element 2hz
-
High Sensitivity Horizontal 10Hz Seismic Geophone Element for Three Component Seismic Sensor
-
Two Horizontal One Vertical Geophones Three Components Seismic Sensor for Mobile Station Natural Earthquake Monitoring
-
DTCC 2Hz to 100Hz Geophone Sample
Product Details
| Brand Name | DTCC | Place of Origin | China | |
| Model Number | HP206 |
Product Description
HP206V 4.5Hz Vertical Geophone Element
4.5Hz Vertical Seismic Geophone element
High quality, reliable and cost effective
3 years limited warranty 2-D and 3-D seismic application Suitable for land, transition zone, marsh and shallow water environments with different cases
HP206V 4.5Hz Vertical Geophone Element Specification
| (All parameters are specified at +20° C in the vertical position unless otherwise stated.) | ||
| Frequency | Natural Frequency (Fn) | 4.5Hz |
| Tolerance | ±0.5Hz | |
| Spurious Frequency | >120Hz | |
| Distortion | Distortion | <0.3% |
| Distortion at vertical | < 0.3% measured at 12 Hz with 0.7 in/s p-p | |
| Damping | Open Circuit Damping | 0.6 |
| Tolerance | ± 5% | |
| Coil Resistance | Standard | 375ohm |
| Tolerance | ± 5% | |
| Sensitivity | Open Circuit Intrinsic Voltage Sensitivity | 28.8 V/m/s (0.73 V/in/s) |
| Tolerance | ±5% | |
| Physical Characteristics | Moving Mass | 11 .1g (0.39 oz) |
| Max. Coil Excursion p.p. | 4mm (0.16 in) | |
| Diameter | 25.4 mm (1.0 in) | |
| Height | 36mm (1.4 in) | |
| Weight | 81 g (2.86 oz) | |
| Operating Temperature Range | ﹣40℃ - +90℃ | |
| Warranty excludes damage caused by high voltage and physical damage to the element case. SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE. | ||

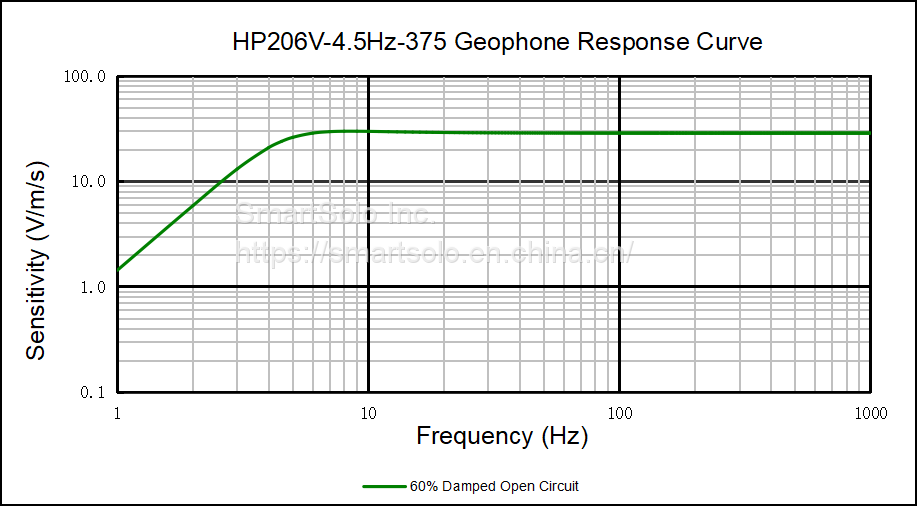

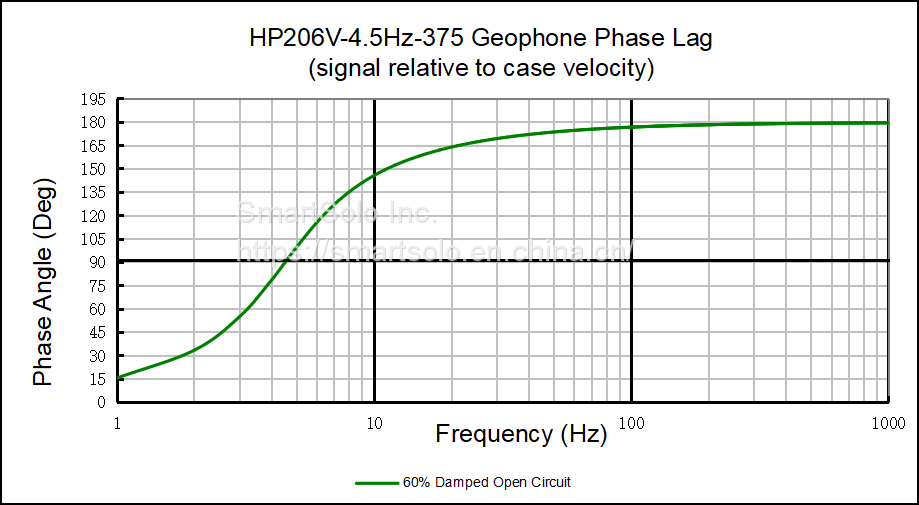

HP206V 4.5Hz Vertical Geophone Response Curve and Phase Lag
