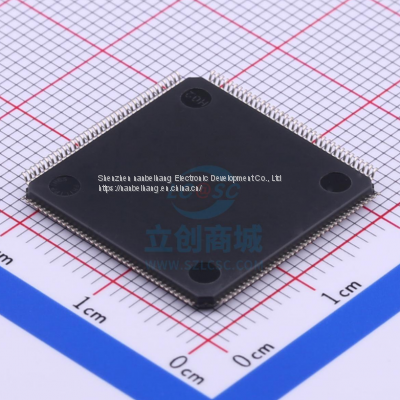

STM32F429ZGT6 ARM Microcontroller - MCU ST Original Stock

FOB Price

Negotiable / Piece

1 Piece(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	st	Place of Origin	Albania
Model Number	STM32F429ZGT6	Type	Drive IC
Package	1080	D/C	22+

Product Description

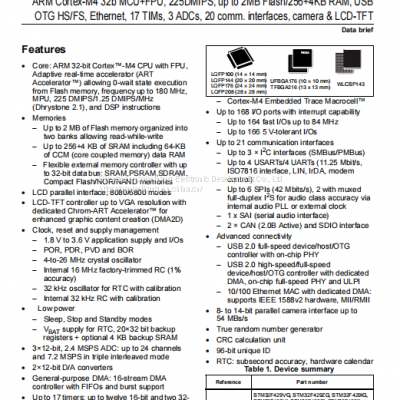

Features

• Core: ARM 32-bit Cortex™-M4 CPU with FPU,

Adaptive real-time accelerator (ART

Accelerator™) allowing 0-wait state execution

from Flash memory, frequency up to 180 MHz,

MPU, 225 DMIPS/1.25 DMIPS/MHz

(Dhrystone 2.1), and DSP instructions

• Memories

– Up to 2 MB of Flash memory organized into

two banks allowing read-while-write

– Up to 256+4 KB of SRAM including 64-KB

of CCM (core coupled memory) data RAM

– Flexible external memory controller with up

to 32-bit data bus: SRAM,PSRAM,SDRAM,

Compact Flash/NOR/NAND memories

• LCD parallel interface, 8080/6800 modes

• LCD-TFT controller up to VGA resolution with

dedicated Chrom-ART Accelerator™ for

enhanced graphic content creation (DMA2D)

• Clock, reset and supply management

– 1.8 V to 3.6 V application supply and I/Os

– POR, PDR, PVD and BOR

– 4-to-26 MHz crystal oscillator

– Internal 16 MHz factory-trimmed RC (1%

accuracy)

– 32 kHz oscillator for RTC with calibration

– Internal 32 kHz RC with calibration

•

Low power

– Sleep, Stop and Standby modes

– VBAT supply for RTC, 20×32 bit backup

registers + optional 4 KB backup SRAM

• 3×12-bit, 2.4 MSPS ADC: up to 24 channels

and 7.2 MSPS in triple interleaved mode

• 2×12-bit D/A converters

• General-purpose DMA: 16-stream DMA

controller with FIFOs and burst support

• Up to 17 timers: up to twelve 16-bit and two 32-

bit timers up to 180 MHz, each with up to 4

IC/OC/PWM or pulse counter and quadrature

(incremental) encoder input

• Debug mode

– SWD & JTAG interfaces

– Cortex-M4 Embedded Trace Macrocell™

• Up to 168 I/O ports with interrupt capability

– Up to 164 fast I/Os up to 84 MHz

– Up to 166 5 V-tolerant I/Os

• Up to 21 communication interfaces

– Up to 3 × I2C interfaces (SMBus/PMBus)

– Up to 4 USARTs/4 UARTs (11.25 Mbit/s,

ISO7816 interface, LIN, IrDA, modem

control)

– Up to 6 SPIs (42 Mbits/s), 2 with muxed

full-duplex I2S for audio class accuracy via

internal audio PLL or external clock

– 1 x SAI (serial audio interface)

– 2 × CAN (2.0B Active) and SDIO interface

• Advanced connectivity

– USB 2.0 full-speed device/host/OTG

controller with on-chip PHY

– USB 2.0 high-speed/full-speed

device/host/OTG controller with dedicated

DMA, on-chip full-speed PHY and ULPI

– 10/100 Ethernet MAC with dedicated DMA:

supports IEEE 1588v2 hardware, MII/RMII

• 8- to 14-bit parallel camera interface up to54 MBs/s

• True random number generator

• CRC calculation unit

• 96-bit unique ID

• RTC: subsecond accuracy, hardware calendar

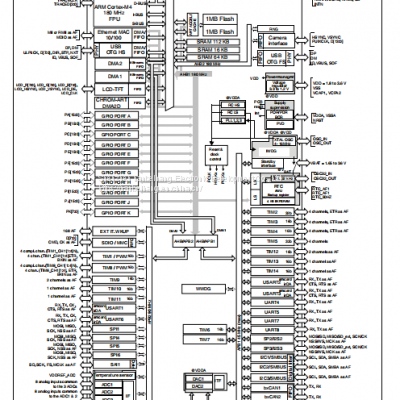

The STM32F429XX devices is based on the high-performance ARM® Cortex™-M4 32-bit

RISC core operating at a frequency of up to 180 MHz. The Cortex-M4 core features a

Floating point unit (FPU) single precision which supports all ARM single-precision data

processing instructions and data types. It also implements a full set of DSP instructions and

a memory protection unit (MPU) which enhances application security.

The STM32F429xx devices incorporates high-speed embedded memories (Flash memory

up to 2 Mbyte, up to 256 Kbytes of SRAM), up to 4 Kbytes of backup SRAM, and an

extensive range of enhanced I/Os and peripherals connected to two APB buses, two AHB

buses and a 32-bit multi-AHB bus matrix.

All devices offer three 12-bit ADCs, two DACs, a low-power RTC, twelve general-purpose

16-bit timers including two PWM timers for motor control, two general-purpose 32-bit timers.

a true random number generator (RNG). They also feature standard and advanced

communication interfaces.

•

Up to three I2Cs

•

Six SPIs, two I2Ss full duplex. To achieve audio class accuracy, the I2S peripherals can

be clocked via a dedicated internal audio PLL or via an external clock to allow

synchronization.

•

Four USARTs plus four UARTs

•

An USB OTG full-speed and a USB OTG high-speed with full-speed capability (with the

ULPI),

•

Two CANs

•

One SAI serial audio interface

•

An SDIO/MMC interface

•

Ethernet and the camera interface

•

LCD-TFT display controller

•

DMA2D controller.

Advanced peripherals include an SDIO, a flexible memory control (FMC) interface, a

camera interface for CMOS sensors. Refer to Table 2: STM32F429xx features and

peripheral counts for the list of peripherals available on each part number.

The STM32F429xx devices operates in the –40 to +105 °C temperature range from a 1.8 to

3.6 V power supply.

The supply voltage can drop to 1.7 V when the device operates in the 0 to 70 °C

temperature range with the use of an external power supply supervisor (refer to

Section 3.17.2: Internal reset OFF). A comprehensive set of power-saving mode allows the

design of low-power applications.

The STM32F429xx devices offers devices in 7 packages ranging from 100 pins to 216 pins.

The set of included peripherals changes with the device chosen.

These features make the STM32F429xx microcontrollers suitable for a wide range of applications:

•

Motor drive and application control

•

Medical equipment

•

Industrial applications: PLC, inverters, circuit breakers

•

Printers, and scanners

•

Alarm systems, video intercom, and HVAC

•

Home audio appliances
