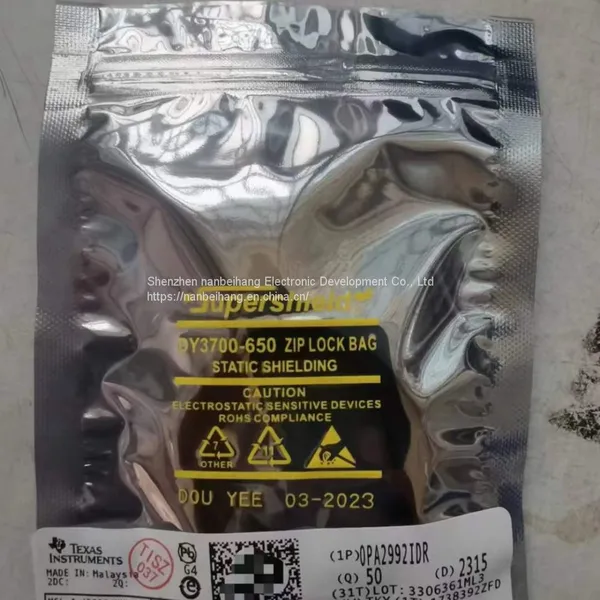

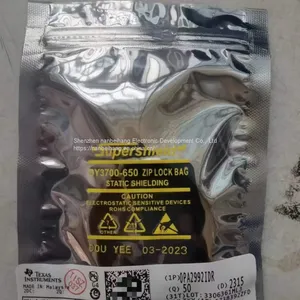

OPA2992IDR Operational Amplifier TI Original Stock

explain

OPAx992 (OPA992, OPA2992, and OPA4992) is a series of high voltage (40V) general-purpose operational amplifiers. These devices have excellent DC accuracy and AC performance, including rail to rail input/output, low offset voltage (± 210 µ V, typical), low temperature drift (± 0.25 µ V/° C, typical), and low noise (7nV/√ Hz at 1 kHz and 4.4nV/√ Hz at 10 kHz).

OPAx992 has many characteristics, such as differential and common mode input voltage range of power rails, high short-circuit current (± 65 mA), and high voltage swing rate (32 V/µ s), making it a flexible and reliable high-performance operational amplifier suitable for various high-voltage industrial applications.

The OPAx992 operational amplifier series adopts micro packaging (such as WSON) and standard packaging (such as SOT-23, SOIC, and TSSOP), with a rated operating temperature range of -40 ° C to 125 ° C.

characteristic

Low offset voltage: ± 210 µ V

Low offset voltage drift: ± 0.25 µ V/° C

Low noise: 7nV/√ Hz at 1kHz, 4.4nV/√ Hz broadband

High common mode suppression: 115dB

Low bias current: ± 10pA

• Rail to rail input and output

Support input for multiplexers/comparators

- The amplifier operates with differential input up to the power rail

Amplifiers can be used in open loop or as comparators

High bandwidth: 10.6MHz GBW, stable unit gain

High voltage swing rate: 32 V/µ s

Low quiescent current: 2.4mA per amplifier

Wide power supply voltage: ± 1.35V to ± 20V, 2.7V to 40V

• Powerful EMIRR performance

application

Multiplexing data acquisition system

• Testing and measuring equipment

Motor drive: power stage and control module

• Power transmission: UPS, servers, and commercial network power supply

ADC driver and reference buffer amplifier

• Programmable Logic Controller

• Analog input and output modules

• High side and low side current detection

High precision comparator
