5P49V6968A000NDGI Clock Generator/frequency Synthesis IDT Original Stock

5P49V6968A000NDGI Clock Generator/frequency Synthesis IDT Original Stock thumbnail-1
5P49V6968A000NDGI Clock Generator/frequency Synthesis IDT Original Stock thumbnail-2
5P49V6968A000NDGI Clock Generator/frequency Synthesis IDT Original Stock photo-1
5P49V6968A000NDGI Clock Generator/frequency Synthesis IDT Original Stock photo-2
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
IDT
Place of Origin:
Albania
Model Number:
5P49V6968A000NDGI
Contact Supplier Request Quote Chat Now
Shenzhen Nanbeihang Electronic Development Co., Ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name IDT
Place of Origin Albania
Model Number 5P49V6968A000NDGI
Type Drive IC
Package 2500
D/C 21+

describe

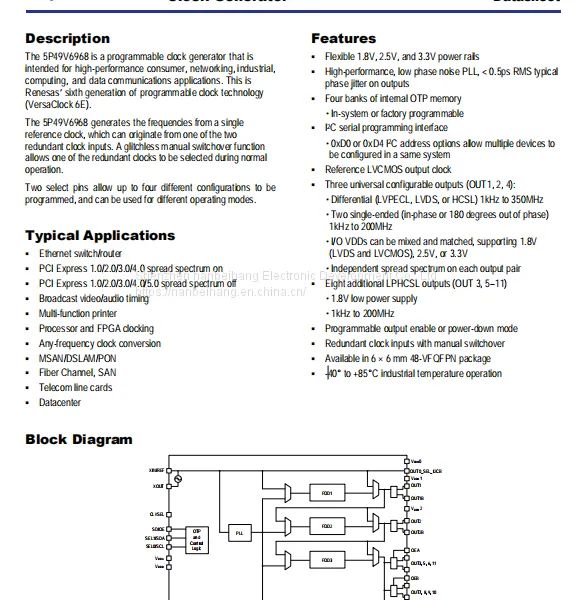

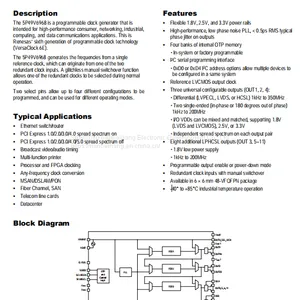

5P49V6968 is a programmable clock generator designed for high-performance consumer, network, industrial, computing, and data communication applications. This is the sixth generation programmable clock technology (VersaClock 6E) from Renesa Company.

5P49V6968 generates frequency from a single reference clock, which can come from one of two redundant clock inputs. A fault free manual switching function that allows the selection of one of the redundant clocks during normal operation.

Two selection pins allow up to four different configurations to be programmed and can be used for different operating modes.


Features
 Flexible 1.8V, 2.5V, and 3.3V power rails
 High-performance, low phase noise PLL,
phase jitter on outputs
 Four banks of internal OTP memory
• In-system or factory programmable
 I2C serial programming interface
• 0xD0 or 0xD4 I2C address options allow multiple devices to
be configured in a same system
 Reference LVCMOS output clock
 Three universal configurable outputs (OUT1, 2, 4):
• Differential (LVPECL, LVDS, or HCSL) 1kHz to 350MHz
• Two single-ended (in-phase or 180 degrees out of phase)
1kHz to 200MHz
• I/O VDDs can be mixed and matched, supporting 1.8V
(LVDS and LVCMOS), 2.5V, or 3.3V
• Independent spread spectrum on each output pair
 Eight additional LPHCSL outputs (OUT 3, 5–11)
• 1.8V low power supply
• 1kHz to 200MHz
 Programmable output enable or power-down mode
 Redundant clock inputs with manual switchover
 Available in 6 × 6 mm 48-VFQFPN package

 -40° to +85°C industrial temperature operation



Typical Applications
 Ethernet switch/router
 PCI Express 1.0/2.0/3.0/4.0 spread spectrum on
 PCI Express 1.0/2.0/3.0/4.0/5.0 spread spectrum off
 Broadcast video/audio timing
 Multi-function printer
 Processor and FPGA clocking
 Any-frequency clock conversion
 MSAN/DSLAM/PON
 Fiber Channel, SAN
 Telecom line cards

 Datacenter






Product Tags: 5P49V6968A000NDGI , clock generator/frequency synthesis , original stock
