Si2151-A10-GMR Video Interface Chip SILICON LABS Original Stock

Si2151-A10-GMR Video Interface Chip SILICON LABS Original Stock thumbnail-1
Si2151-A10-GMR Video Interface Chip SILICON LABS Original Stock thumbnail-2
Si2151-A10-GMR Video Interface Chip SILICON LABS Original Stock photo-1
Si2151-A10-GMR Video Interface Chip SILICON LABS Original Stock photo-2
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
SILICON LABS
Place of Origin:
Albania
Model Number:
Si2151-A10-GMR
Contact Supplier Request Quote Chat Now
Shenzhen Nanbeihang Electronic Development Co., Ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name SILICON LABS
Place of Origin Albania
Model Number Si2151-A10-GMR
Type Drive IC
Package 2500
D/C 23+

explain

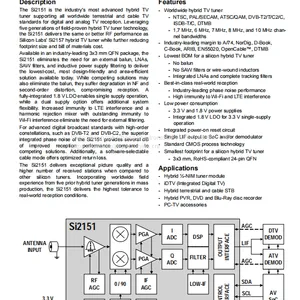

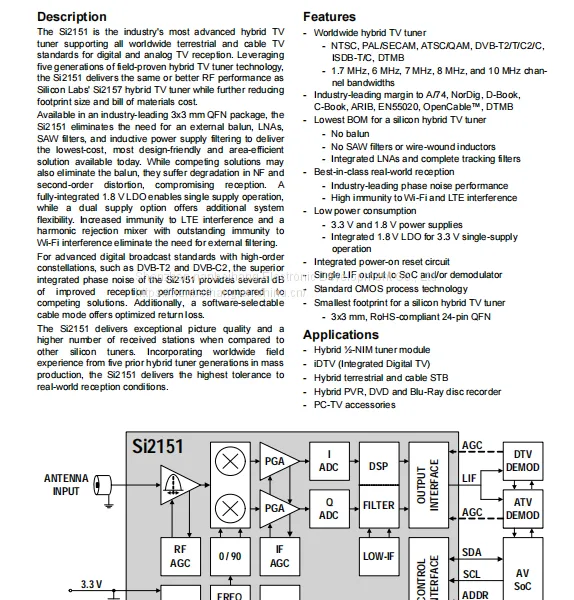

Si2151 is the industry's most advanced hybrid TV tuner, supporting digital and analog TV reception for all global terrestrial and cable TV standards. Utilizing the fifth generation of on-site validated hybrid TV tuner technology, Si2151 provides the same or better RF performance as the Si2157 hybrid TV tuner from Silicon Labs, while further reducing footprint size and material costs.
Si2151 is packaged in an industry-leading 3x3 mm QFN package, eliminating the need for external balancers, LNAs, SAW filters, and induction power filters to provide the lowest cost, most design friendly, and region efficient solution currently available. Although competitive solutions may also eliminate balun, they suffer from NF degradation and second-order distortion, affecting reception. A fully integrated 1.8 V LDO supports single supply operations, while a dual supply option provides additional system flexibility. The harmonic suppression mixer has improved immunity to LTE interference and significant immunity to Wi Fi interference, eliminating the need for external filtering.
For advanced digital broadcasting standards with higher-order constellations, such as DVB-T2 and DVB-C2, Si2151 provides superior integrated phase noise and several dB of reception performance compared to competing solutions. In addition, a software selectable cable mode provides optimized return losses.
Compared to other silicon tuners, Si2151 provides excellent image quality and more receiving stations. Si2151 combines the global on-site experience of previous five generations of hybrid tuners, providing the highest tolerance for real-world reception conditions.

Features

- Worldwide hybrid TV tuner
- NTSC, PAL/SECAM, ATSC/QAM, DVB-T2/T/C2/C,
ISDB-T/C, DTMB
- 1.7 MHz, 6 MHz, 7 MHz, 8 MHz, and 10 MHz chan
nel bandwidths
- Industry-leading margin to A/74, NorDig, D-Book,
C-Book, ARIB, EN55020, OpenCable™, DTMB
- Lowest BOM for a silicon hybrid TV tuner
- No balun
- No SAW filters or wire-wound inductors
- Integrated LNAs and complete tracking filters
- Best-in-class real-world reception
- Industry-leading phase noise performance
- High immunity to Wi-Fi and LTE interference
- Low power consumption
- 3.3 V and 1.8 V power supplies
- Integrated 1.8 V LDO for 3.3 V single-supply
operation
- Integrated power-on reset circuit
- Single LIF output to SoC and/or demodulator
- Standard CMOS process technology
- Smallest footprint for a silicon hybrid TV tuner
- 3x3 mm, RoHS-compliant 24-pin QFN
Applications
- Hybrid ½-NIM tuner module
- iDTV (Integrated Digital TV)
- Hybrid terrestrial and cable STB
- Hybrid PVR, DVD and Blu-Ray disc recorder

- PC-TV accessories
