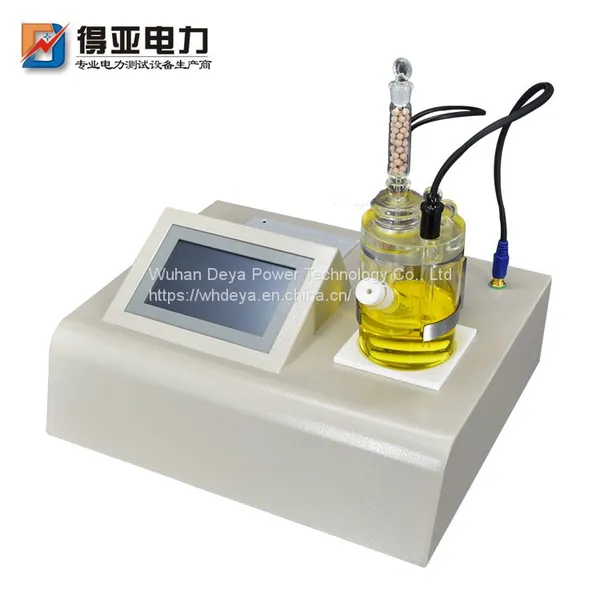

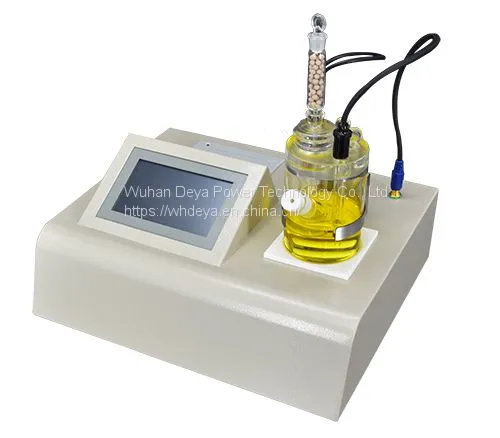

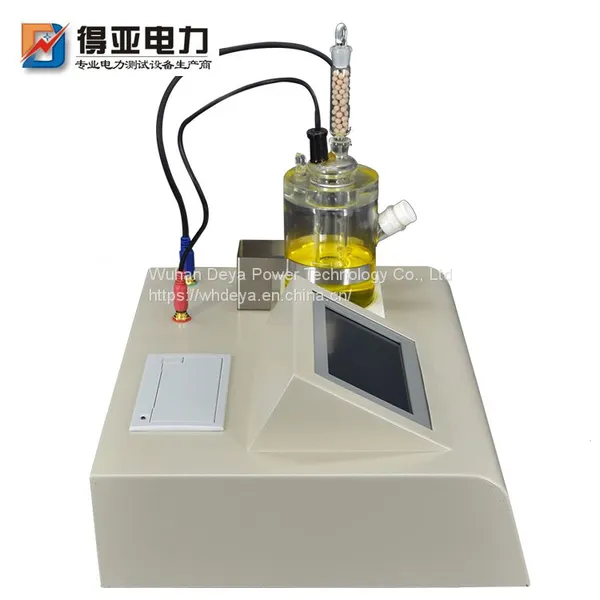

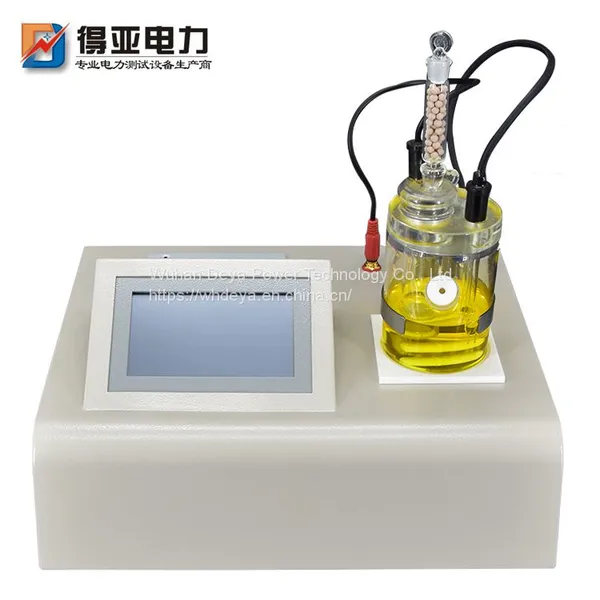

Help CenterMicro Moisture Tester DYWS-II
Related Products
-
Full Automatic Dielectric Loss Measuring Instrument DYJS-8000US$ 2515 - 2585MOQ: 1 Set -
Dielectric Loss and Resistivity Tester DYJS-6000US$ 2906 - 3048MOQ: 1 Set
-
SF6 Gas Recovery Instrument DYHS-205US$ 9500 - 9600MOQ: 1 Set
-
Density Relay Calibrator DYJY-NUS$ 2382 - 2664MOQ: 1 Set
-
Sf6 Intelligent Micro Water Measuring Instrument DYWS-VUS$ 2793 - 3075MOQ: 1 Set
1、 Product introduction
Karl Fischer Coulomb titration is the most reliable method for the determination of trace water in different substances. DYWS-II micro moisture analyzer has successfully applied this method, using the most advanced automatic control circuit, 32-bit embedded microprocessor as the main control core, and embedded in the mini operating system. This makes the instrument more reliable and convenient to use. It is characterized by fast analysis speed, simple operation, high accuracy and strong automaticity. It is widely used in petroleum, chemical industry, electric power, railway, pesticide, medicine, environmental protection and other departments.
2、 Product characteristics
The 32-bit embedded microprocessor is used as the main control core and embedded in the mini operating system.
·0-400 ma automatic detection, high precision, fast measurement speed, stable and reliable.
·The motherboard adopts high-quality chip components with high integration, simple operation and long service life
·It contains 4 calculation formulas, and the measurement results can be automatically converted to the required units and can be converted to each other.
·Color touch screen, full digital keyboard, more concise operation, convenient and fast data calculation.
·Up to 1000 groups of data can be stored, and the name of the operator can be set to facilitate searching. The reagent failure prompt is more user-friendly.
3、 Technical parameters
Titration method: coulometric titration (coulometric analysis)
Display: color LCD touch screen
Electrolytic current control: 0~400mA automatic control
Measuring range: 1ug~100mg
Sensitive valve: 0.1 µ g H2O
Accuracy: 10 µ g ～ 1000 µ g ± 3 µ g
No more than 0.3% above 1mg
Printer: micro thermal printer
Power supply: 220V ± 10%, 50Hz
Power: ＜ 40W
Operating ambient temperature: 5~40 ℃
Ambient humidity: ≤ 85%
Overall dimension: 340 × two hundred and ninety-five × one hundred and fifty-five
Weight: about 5.5kg
