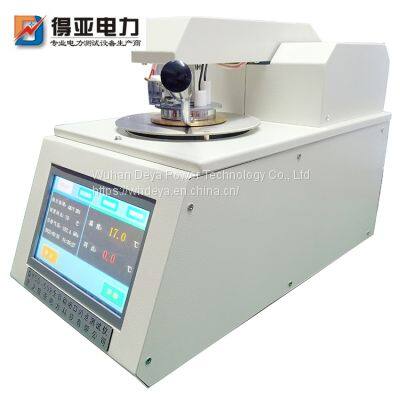

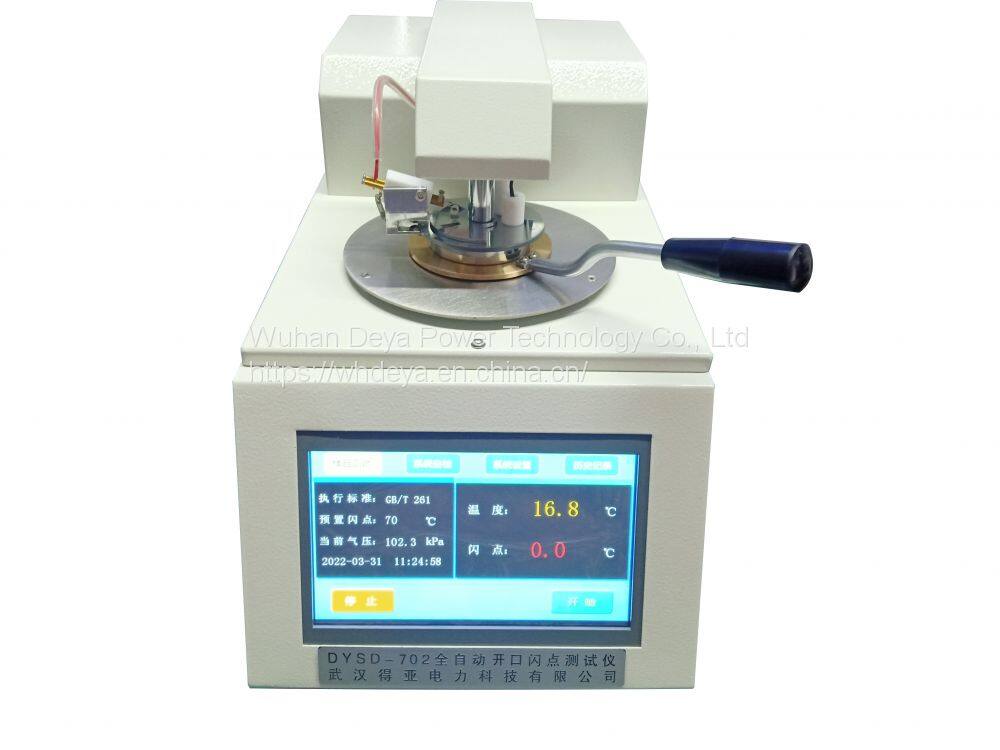

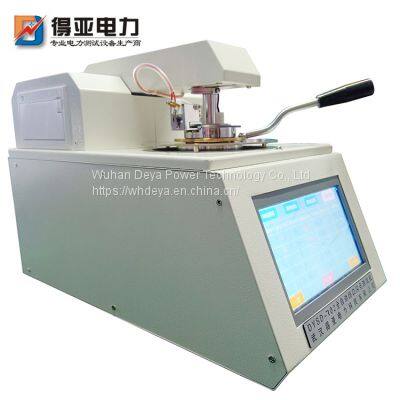

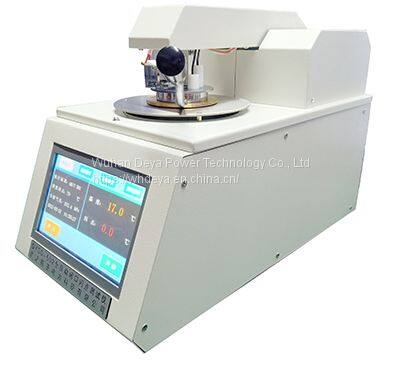

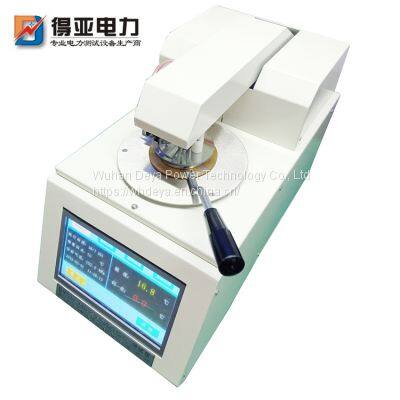

Help CenterOpen Flash Point Tester DYSD-702
Related Products
-
Micro Moisture Tester DYWS-IIUS$ 1118 - 1188MOQ: 1 Set -
Full Automatic Dielectric Loss Measuring Instrument DYJS-8000US$ 2515 - 2585MOQ: 1 Set
-
Dielectric Loss and Resistivity Tester DYJS-6000US$ 2906 - 3048MOQ: 1 Set
-
SF6 Gas Recovery Instrument DYHS-205US$ 9500 - 9600MOQ: 1 Set
-
Density Relay Calibrator DYJY-NUS$ 2382 - 2664MOQ: 1 Set
1、 Product features:
1. Strong function. The flash point is detected and the test results are printed. The clock chip is equipped inside, which automatically displays the current date, time and power failure hold.
2. High precision. The temperature resolution is 0.1 ℃.
3. Good repeatability. Under the condition that the test environment complies with GB3536 or GB/T 267-88, continuously test the same sample, and the difference between their flash point values is ≤ 8 ℃.
4. High degree of automation. It can automatically complete the test process, automatically cool down, automatically prompt information, etc.
5. The interface is friendly and humanized. All Chinese characters input is convenient for users to mark and search.
The function and performance of the open flash point tester are in line with the highest level at home and abroad. It is a special instrument for petroleum, power, chemical, commodity inspection and other industries to replace imported products.
2、 Technical parameters
Measuring range: room temperature~400 ℃
Test type: open flash point
Temperature detection: platinum resistance
Accuracy: ± 2 ℃
Repeatability: in accordance with GB3536-2008 and GB/T 267-88
Display: 7-inch touch screen, color LCD
Information storage: 1000 measurement results can be stored
Ignition mode: electric ignition
Cooling mode: forced air cooling
Atmospheric pressure: automatic detection of atmospheric pressure and automatic correction of test results
Printer: dot matrix thermal printer
Self inspection function: lifting rod, wiper rod, printing, etc
Power: ≤ 600W
Power supply: AC 220V
Ambient temperature: 10~35 ℃
Ambient humidity: ≤ 90%
Package weight: about 17kg
