1、 Product introduction

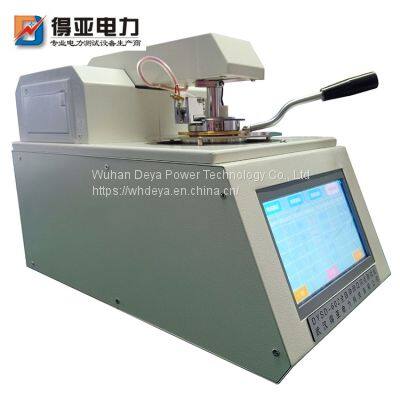

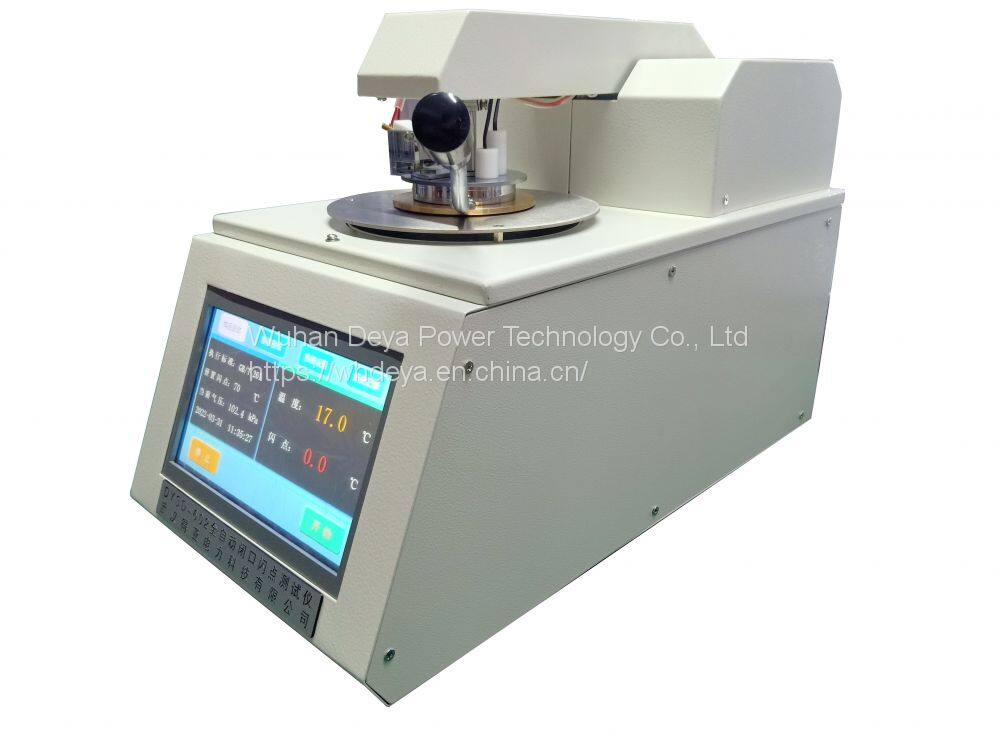

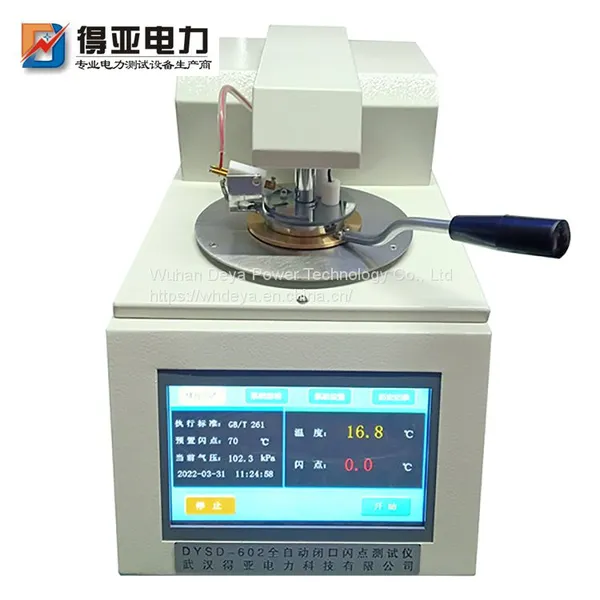

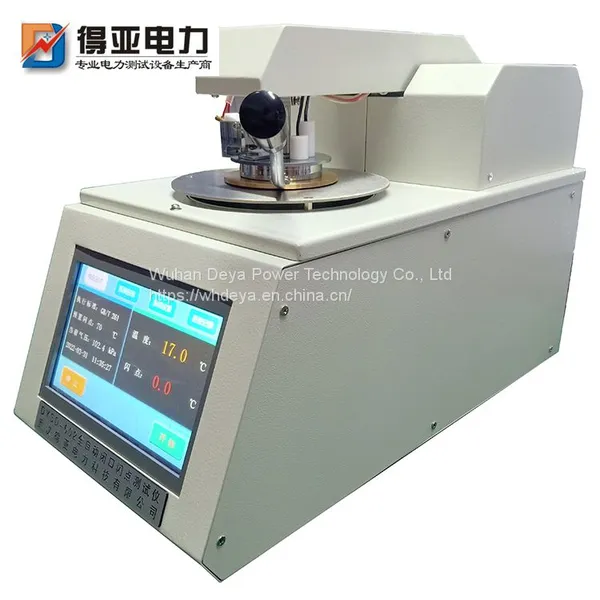

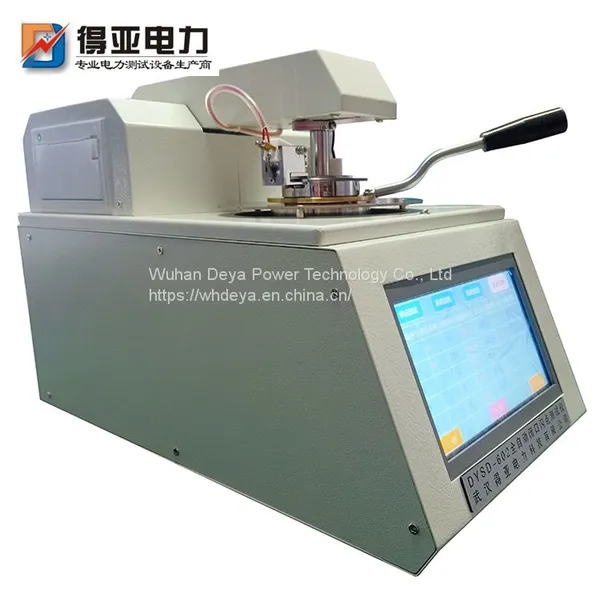

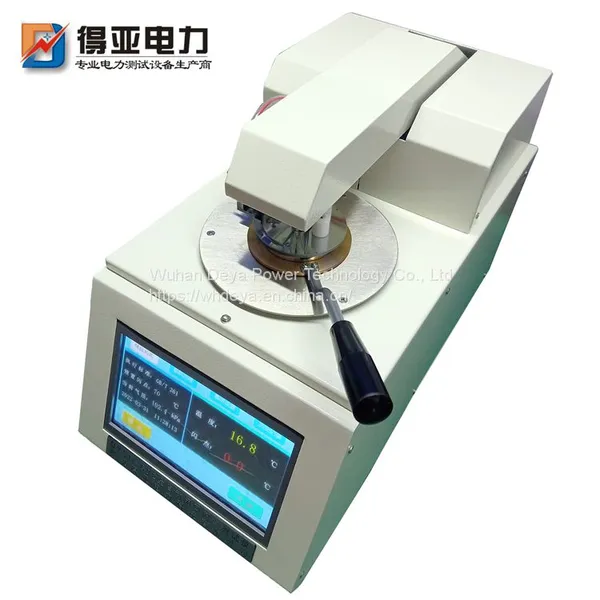

The fully automatic closed flash point tester is mainly used to measure the closed flash point value of petroleum products. The instrument adopts ARM microprocessor technology, color touch screen and Chinese menu, which makes human-computer interaction more convenient; The instrument has power down storage function; The instrument has the functions of automatic ignition, display, locking and printing results, automatic cooling, etc; The instrument has the function of external adjustment of igniter brightness; The instrument has the advantages of accurate measurement, good repeatability, stable and reliable performance and simple operation. It is widely used in power, petroleum, chemical, commodity inspection, scientific research and other departments, meeting the requirements of GB/T 261-2008 standard method.
2、 Technical parameters
Display: 7-inch color display
Operation mode: touch screen
Measuring range: room temperature~400 ℃
Temperature detection: platinum resistance
Repeatability: ＞ 110 ℃± 2 ℃≤ 110 ℃± 1 ℃
Ignition mode: electric ignition
Information storage: 999 analysis results can be stored
Cooling mode: forced air cooling
Atmospheric pressure: automatically detect the atmospheric pressure and correct the measurement results.
Printer: thermal printer
Repeatability: in accordance with GB/T 261
Power supply: AC 220V ± 11V, 50Hz ± 2.5HZ
Power: ≤ 350VA
Operating ambient temperature: 10 ℃~45 ℃
Ambient humidity: ≤ 85%
