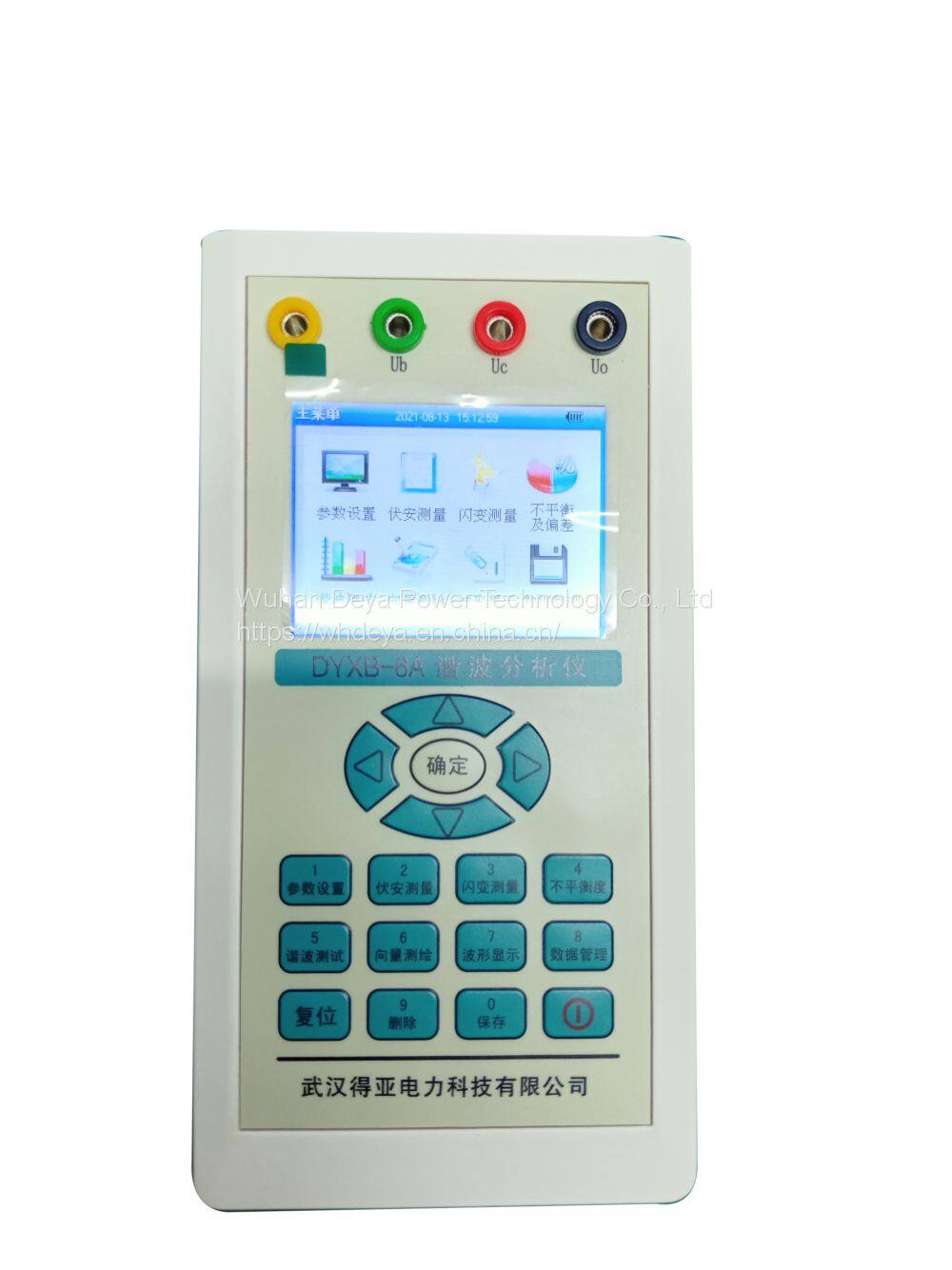

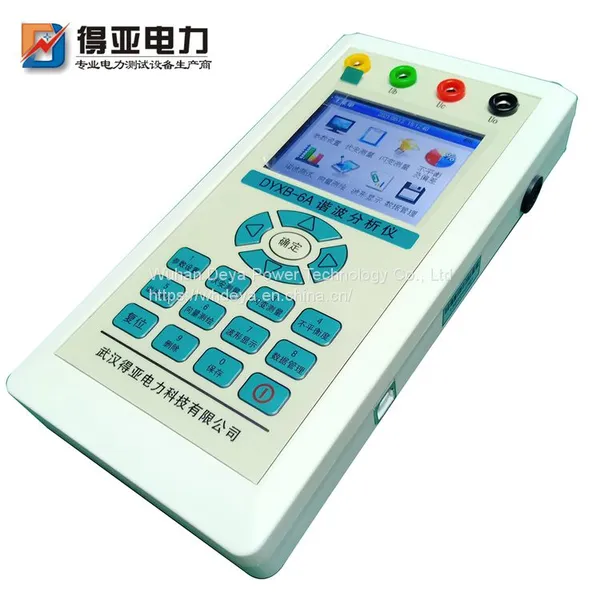

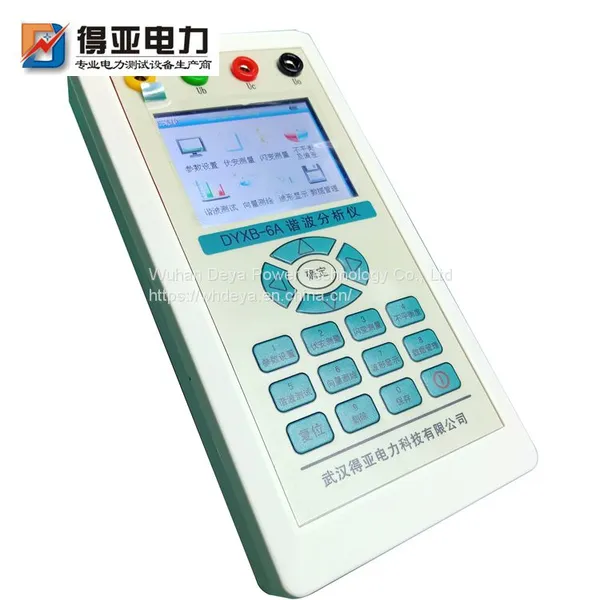

Handheld Power Harmonic Analyzer DYXB-6A

1、 Product introduction

With the vigorous development of China's national economy, power load has increased dramatically, especially the continuous growth of impulsive and nonlinear load capacity, which has caused power quality problems such as waveform distortion, voltage fluctuation and flicker, and three-phase imbalance. The company's harmonic analyzer is a high-performance multi-function harmonic analyzer. DSP+ARM+CPLD core, 3.2 "large screen LCD (320 × 240 dot matrix) display, making the structure more compact, the function more powerful and the display more convenient. Background management and analysis software, with rich functions and convenient operation.

2、 Technical parameters

1 Frequency measurement

Measuring range: 45 ～ 55Hz, central frequency: 50Hz, measuring condition: fundamental component of signal shall not be less than 80% F.S

Measurement error: ≤ 0.02Hz

2 Input voltage range: 10-450V

3 Input current range: 10A, other ranges can be selected according to user requirements

4 Amplitude of fundamental wave voltage and current: allowable error of fundamental wave voltage ≤ 0.5% F.S; Allowable error of fundamental wave current ≤ 1% F.S

5 Measurement error of phase difference between fundamental wave voltage and current: ≤ 0.5 °

6 Measurement error of harmonic voltage content: ≤ 0.1%

7 Measurement error of harmonic current content: ≤ 0.2%

8 Three phase voltage unbalance error: ≤ 0.2%

9 Voltage deviation error: ≤ 0.2%

10 Voltage variation error: ≤ 0.2%

11 Power deviation: ≤ 0.5%

12 Working hours: The internal battery can work continuously for 5 hours

13 Overall dimension (mm): 300 × two hundred and twenty-five × 135 (long × wide × High)

14 Weight: 0.5kg
