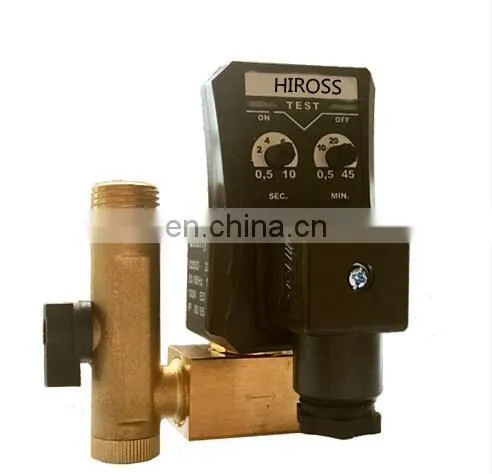

JORC 1/2" Automatic Drain Solenoid Valve with Timer for Air Compressor

Drain valve to simulate an electronic circuit solid state electronic timer and solenoid valve to match the timing of realization of the compressed air system condensate automatic discharge. High voltage electron drain valve widely used in filters, separators, dryers, gas tank, drip legs and other compressed air system components, discharge time and interval can be adjusted according to different needs.

Characters

Imported IC chip, High quality in low price.
A model is suitable for all applications, easy installation, fully automatic and maintenance free.
Interval time and discharge time is adjustable and have a test button.
Pressure 16 Bar, various pressure and port can be choose.
Full stain steel valve, anti-explosion valve can be choose.
CE Certificate, level of protection is IP65, insulation grade is H.
Viton seal.
Equipped with 16 Bar ball filter, fission with drain valve, “L” construction.

Work Conditions
Steps as following:
1)Close isolation valves, press test button, to ensure that electronic drain valve has been isolated from air compressor system(under the zero pressure).
2)Cut off the drain valve power supply.
3)Remove the coil(Before remove the coil,must cut off the valve first,or valve body will burn out after electrify coil), separate the solenoid valve, remove the valve core and the spring, use water to clean it then installed again, the fault can be ruled out.

Hiross (Zhangzhou) Industrial Machinery Co.,Ltd, has specialized in Compressed Air Drying and Purifying Equipment for more than 10 years,is a professional manufacturer engaged in the research, development, production, sale and service of refrigerated air dryer,desiccant air dryer,air filter,air filter element,dehumidifier,and other accessories.

 We are located in Zhangzhou City with convenient transportation access,only 1 Hour distance to Xiamen Port. Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction.

In recent years, our company has obtained I S O 9 0 0 1,C E,G C C A certificates. Selling well in all cities and provinces around China, Our products are available in 30 countires covering Europe, America, Australia, Asia, Africa, Middle-East, and in countries such as USA, Canada, UK, Mexico, Spain, Serbia,Italy, Finland, Australia, Philippines, Pakistan, Thailand, Indonesia, India,Africa.Our products have been widely used in kinds of industry including petroleum, chemical, electric power, food, medical, biological pharmaceutical,textile industry.We also welcome OEM and ODM orders.

Whether selecting a current product from our catalog or seeking engineering assistance for your application, welcome to contact our customer service center about your sourcing requirements.
