Home > Products > Accessories > 16 Bar JORC 1/2" Auto Drain Valve

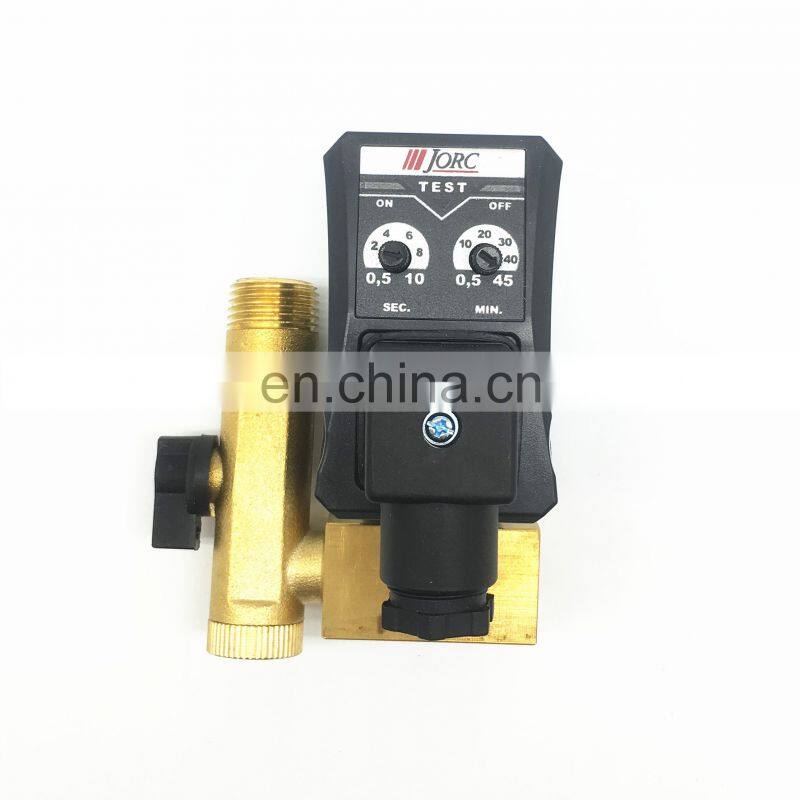

16 Bar JORC 1/2" Auto Drain Valve
- T/T Credit Card
You May Like
-
1/2\" Automatic Electronic Timed Air Compressor Condensate Auto Drain Water Valve
-
JORC 1/2\" Automatic Electronic Timed Air Compressor Condensate Auto Drain Water Valve
-
40 Bar JORC 1/2\" automatic drain valve
-
80 Bar JORC 1/2\" Auto Solenoid Drain Valve
-
JORC high Pressure Auto Drain Solenoid Valve with Timer 350 Bar
-
Aluminum Alloy Zero Loss Auto Condensate Drain Valve
Product Description

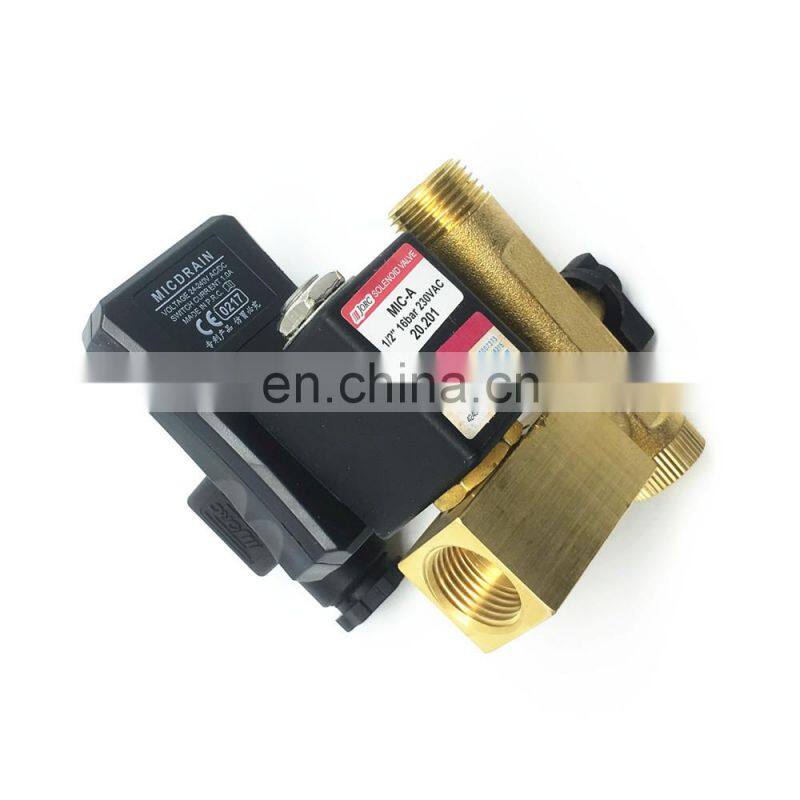

JORC Auto Drain Solenoid Valve
Drain valve to simulate an electronic circuit solid state electronic timer and solenoid valve to match the timing of realization of the compressed air system condensate automatic discharge. High voltage electron drain valve widely used in filters, separators, dryers, gas tank, drip legs and other compressed air system components, discharge time and interval can be adjusted according to different needs.
Characters
Imported IC chip, High quality in low price.
A model is suitable for all applications, easy installation, fully automatic and maintenance free.
Interval time and discharge time is adjustable and have a test button.
Pressure 16 Bar, various pressure and port can be choose.
Full stain steel valve, anti-explosion valve can be choose.
CE Certificate, level of protection is IP65, insulation grade is H.
Viton seal.
Equipped with 16 Bar ball filter, fission with drain valve, “L” construction.
Work Conditions
Steps as following:
1)Close isolation valves, press test button, to ensure that electronic drain valve has been isolated from air compressor system(under the zero pressure).
2)Cut off the drain valve power supply.
3)Remove the coil(Before remove the coil,must cut off the valve first,or valve body will burn out after electrify coil), separate the solenoid valve, remove the valve core and the spring, use water to clean it then installed again, the fault can be ruled out.
Timer | ||
Interval Time | 0.5-45mins | |
Discharge Time | 0.5-10 seconds | |
Manual Test Switch | yes | |
Supply Voltage | 24V--~240V±10% 50/60HZ | |
Current Consumption | Max. 4mA | |
Oprating Temperature | -40℃~5040℃ | |
Environmental protection | IP 65 | |
Case Material | ABS Plastic FR Grade | |
Indicators | Yellow, valve open | |
Yellow, valve closed | ||
Valve | ||
Type | 2/2-way direct acting valve | |
In/Out Ports | 1/4,1/2 female | |
Max. working pressure | 16bar | |
Operating Temperature | 2℃/55℃ ambient | |
Media Temperature | Max.90 ℃ | |
Valve body | Forged Brass | |
Insulation | Thermal Group H Grade (180 ℃) | |
Environmental protection | IP 65 | |
Supply Voltage | 24V--~240V ±10% 50/60HZ | |
Mounting | in any position | |
