JORC Normal Pressure 16bar Auto Drain Valve MIC-B
- 1000 per Month
- T/T Credit Card
You May Like
-
1/2\" Automatic Electronic Timed Air Tank Water Moisture Drain Valve For Compressor
-
JORC Compressor Auto Condensate Drain Timer Solenoid valve
-
JORC 1/2\" Auto Drain Solenoid Valve with Timer for Air Compressor
-
JORC Ultra high Pressure Auto Drain Solenoid Valve with Timer 250 Bar
-
Wholesale high quality measuring water, gas and oil High precision manometer Air Pressure Gauge
-
Wholesale Factory direct supply top quality Industrial Oil Pressure Gauges 0-300 PSI
Product Description

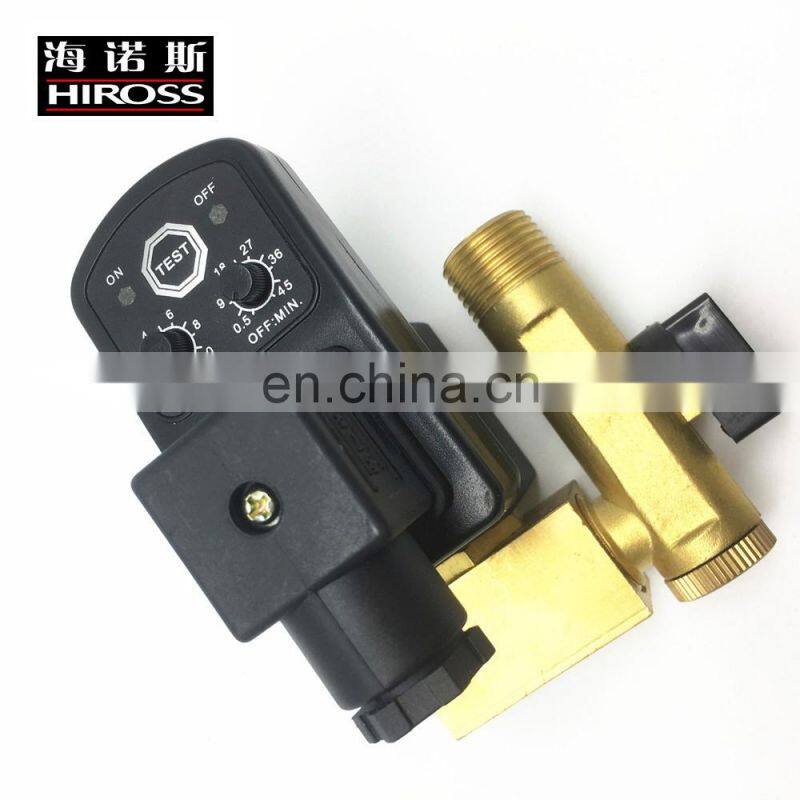

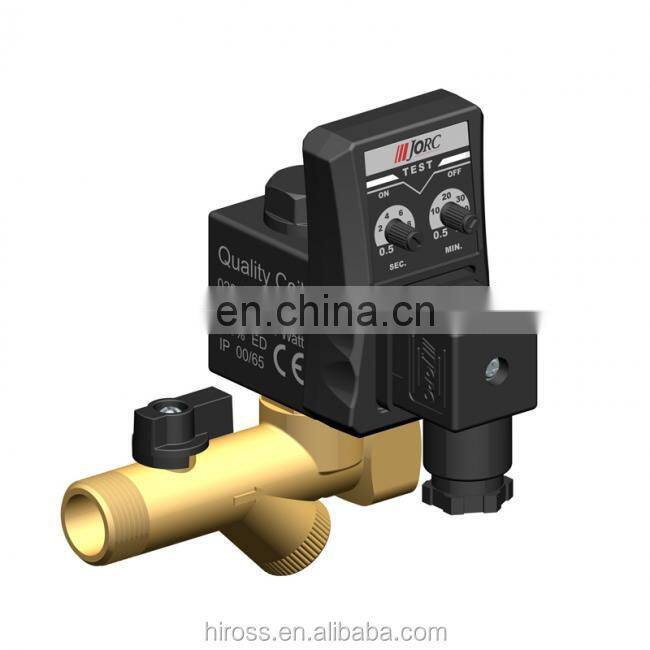

Auto Drain Solenoid Valve
·What is the Drain Valve?
Drain valve to simulate an electronic circuit solid state electronic timer and solenoid valve to match the timing of realization of the compressed air system condensate automatic discharge. High voltage electron drain valve widely used in filters, separators, dryers, gas tank, drip legs and other compressed air system components, discharge time and interval can be adjusted according to different needs.
Parameters | ||
Timer | MICDRAIN | |
Interval timer (off) | 0.5-45 minutes | |
Discharge time (on) | 0.5-10 minutes | |
Power supply | 24-240V AC/DC 50/60Hz | |
Current consumption | Max. 4A | |
Ambient temperature | -40℃-+60℃ | |
IP Grade | IP65 | |
Case material | ABS plastics FR grade | |
Electrical connections | DIN43650A | |
Valve | MIC-HP80B | |
Type | Two way straight acting valve | |
Inlet&outlet port size | RC1/2" female thread | |
Max working pressure | 80bar | |
Min.&max.ambient temp. | 2℃/55℃ | |
Max. medium temp. | 90℃ | |
The valve body | brass | |
Insulation | Thermal group H Grade | |
Protection grade | IP65 | |
Voltage | 24-230V AC/DC | |
Voltage range | ±10% | |
