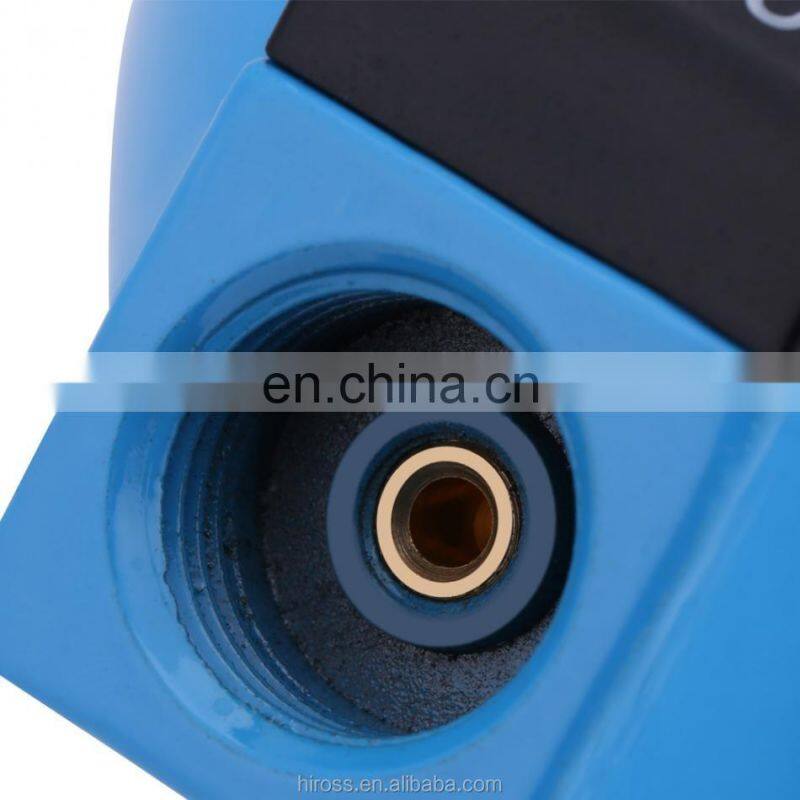

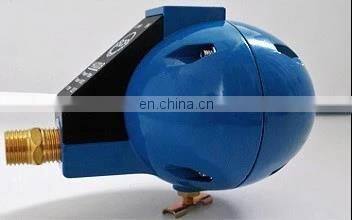

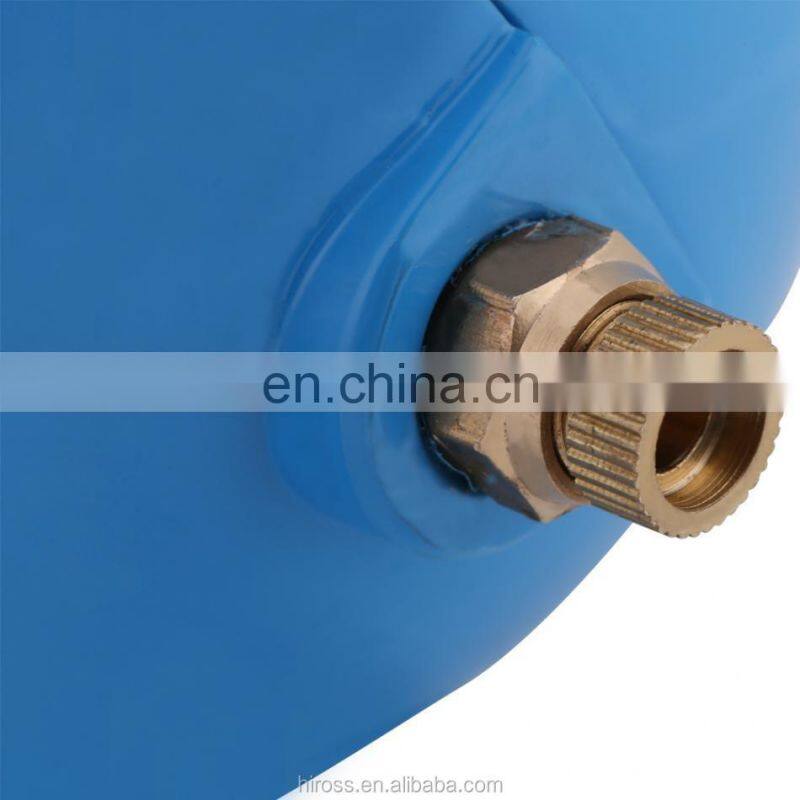

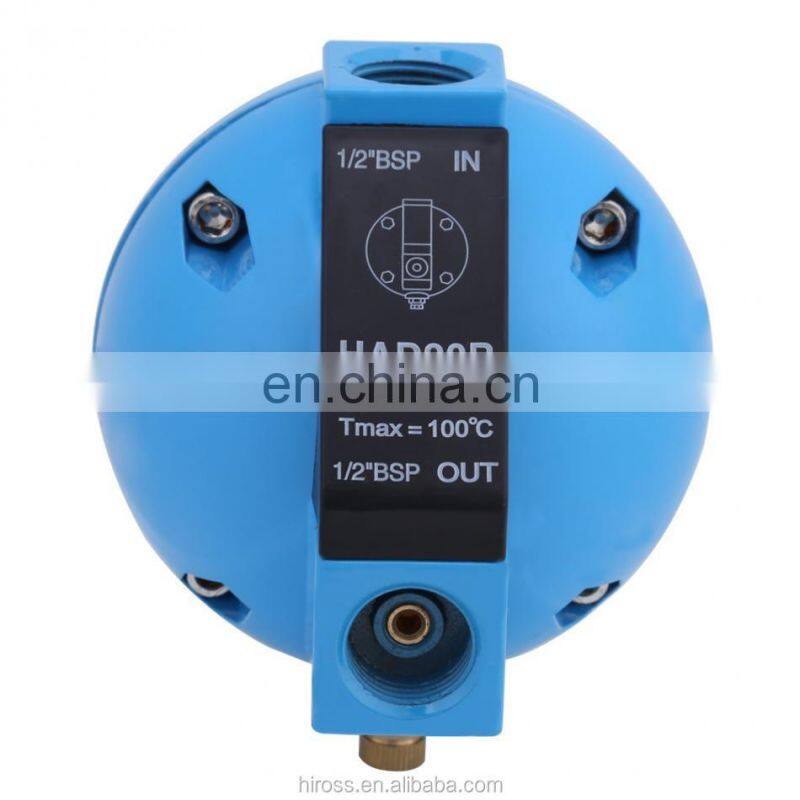

Automatic Drain Valve 1/2BSP 400L/H 16Bar Automatic Condensate Mechanical Round Float Type Air Compressor Water Drain
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
ADTV-68 Pneumatic Auto Water Drain Valve Air Compressor Air Storage Tank Pneumatic DrainNegotiableMOQ: 1 -
JORC 1/4\" Direct Drive Type Solenoid Drain Valve JZ3.5NegotiableMOQ: 1
-
16 Bar JORC 1/2\" Auto Drain ValveNegotiableMOQ: 1
-
1/2\" Automatic Electronic Timed Air Compressor Condensate Auto Drain Water ValveNegotiableMOQ: 1
-
JORC 1/2\" Automatic Electronic Timed Air Compressor Condensate Auto Drain Water ValveNegotiableMOQ: 1
Product Description
Advantages of ball
Spherical design and use preferably aluminum material,making the drainer explosion-proof and low-gas loss.
The bubble ball will never lose efficacy .

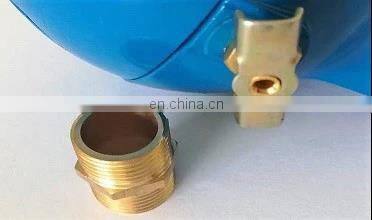

Using high quality brass and stainless steel parts to prevent corrosion.
Main Features
-This compressed air condensate automatic drainer is significantly different from traditional mechanical automatic drainer, which is belong to continuous drops drain.
-Shell is made of casting aluminum alloy, with plastic powder coating surface, resistant to corrosion.
-Automatic drainer is extremely reliable in operation, no electricity needed, no noise, no loss of compressed air.
-Drainer has big drainage outlet that is not easily blocked; it is a new generation and great choice of compressed air equipment drainer.
-This is a quite stable drainer which has great performance and low failure rate.
The compressed air condensate automatic drainer is a mechanical automatic drainer which has casting aluminum alloy shell and inside float ball drainage system.Drainer outlet is closed when drainage buoyancy is smaller than floating ball weight plus compressed air pressure; and it will open when buoyancy increases, in order to drain condensed liquid.
Technical | ||
Type | HR-FAD16B | |
Inlet/outlet port size | 1/2BSP | |
The max pressure | 16bar (kg/cm) | |
The max temperature | 100℃ | |
The largest emission capacity | 400L/h | |
