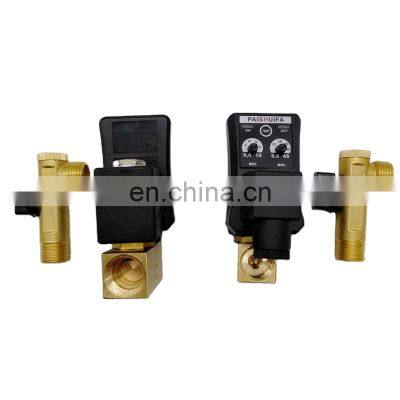

Help CenterJORC 1/2" Automatic Electronic Timed Air Compressor Condensate Auto Drain Water Valve
Related Products
-
40 Bar JORC 1/2\" Automatic Drain ValveNegotiableMOQ: 1 -
80 Bar JORC 1/2\" Auto Solenoid Drain ValveNegotiableMOQ: 1
-
JORC High Pressure Auto Drain Solenoid Valve With Timer 350 BarNegotiableMOQ: 1
-
Aluminum Alloy Zero Loss Auto Condensate Drain ValveNegotiableMOQ: 1
-
Jorc Normally Closed 2 Way Solenoid Valve With CoilNegotiableMOQ: 1
Auto Drain Solenoid Valve
Two-position two-way solenoid valve | ||
Interval Time | 0.5-45mins | |
Discharge Time | 0.5-10 seconds | |
Manual Test Switch | yes | |
Supply Voltage | 24V--~240V±10% 50/60HZ | |
Current Consumption | Max. 4mA | |
Oprating Temperature | -40℃~5040℃ | |
Environmental protection | IP 65 | |
Case Material | ABS Plastic FR Grade | |
Indicators | Yellow, valve open | |
Yellow, valve closed | ||
Valve | ||
Type | 2/2-way direct acting valve | |
In/Out Ports | 1/4",1/2" female | |
Max. working pressure | 16bar | |
Operating Temperature | 2℃/55℃ ambient | |
Media Temperature | Max.90 ℃ | |
Valve body | Forged Brass | |
Insulation | Thermal Group H Grade (180 ℃) | |
Environmental protection | IP 65 | |
Supply Voltage | 24V--~240V ±10% 50/60HZ | |
Mounting | in any position | |
Main Features
-This compressed air condensate automatic drainer is significantly different from traditional mechanical automatic drainer, which is belong to continuous drops drain.
-Shell is made of casting aluminum alloy, with plastic powder coating surface, resistant to corrosion.
-Automatic drainer is extremely reliable in operation, no electricity needed, no noise, no loss of compressed air.
-Drainer has big drainage outlet that is not easily blocked; it is a new generation and great choice of compressed air equipment drainer.
-This is a quite stable drainer which has great performance and low failure rate.
micro heat adsorption air dryer
Compressed air tank
Compressed air filter
Air filter
Auto drain Valve
float ball type drain valve
Hiross (Zhangzhou) Industrial Machinery Co.,Ltd, has specialized in Compressed Air Drying and Purifying Equipment for more than 15years,is a professional manufacturer engaged in the research, development, production, sale and service of refrigerated air dryer,desiccant air dryer,air filter,air filter element,dehumidifier,and other accessories.
We are located in Zhangzhou City with convenient transportation access,only 1 Hour distance to Xiamen Port. Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction.
In recent years, our company has obtained I S O 9 0 0 1,C E,G C C A certificates. Selling well in all cities and provinces around China, Our products are available in 30 countires covering Europe, America, Australia, Asia, Africa, Middle-East, and in countries such as USA, Canada, UK, Mexico, Spain, Serbia,Italy, Finland, Australia, Philippines, Pakistan, Thailand, Indonesia, India,Africa.Our products have been widely used in kinds of industry including petroleum, chemical, electric power, food, medical, biological pharmaceutical,textile industry.We also welcome OEM and ODM orders.
Whether selecting a current product from our catalog or seeking engineering assistance for your application, welcome to contact our customer service center about your sourcing requirements.
