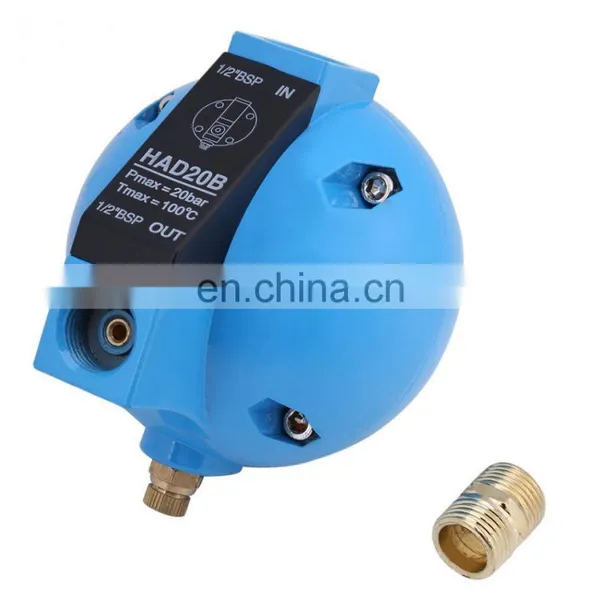

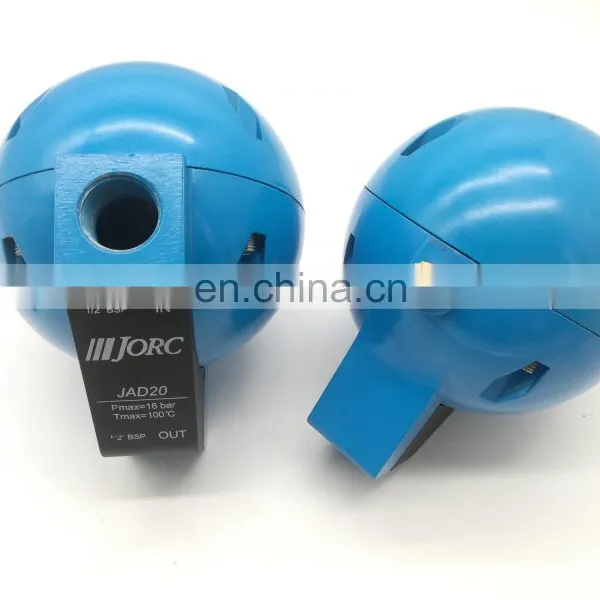

Factory Direct Sale 1/2" BSP Float Ball Type Drain Valve Automatic Drainer
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
JORC 1/2\" Automatic Drain Solenoid Valve With Timer for Air CompressorNegotiableMOQ: 1 -
Float Type 1/2\" Jorc Auto Solenoid Drain Valve AD402NegotiableMOQ: 1
-
Auto Automatic Brass Water Drain Electronic With Mechanical Solenoid Valve Pneumatic TimerNegotiableMOQ: 1
-
Hot Sale 40 Bar Jorc Electric Auto Drain Valve for High Pressure Air DryerNegotiableMOQ: 1
-
Wholesale High Quality 60mm Brass Pressure Gauge Manometer With Low PriceNegotiableMOQ: 1
Product Description
Float ball drain valve
What is the Drain Valves?
Drain valve to simulate an electronic circuit solid state electronic timer and solenoid valve to match the timing of realization of the compressed air system condensate automatic discharge. High voltage electron drain valve widely used in filters, separators,dryers, gas tank, drip legs and other compressed air system components, discharge time and interval can be adjusted according to different needs.
Characters
Imported IC chip, High quality in low price.
A model is suitable for all applications, easy installation, fully automatic and maintenance free.
Interval time and discharge time is adjustable and have a test button.
Pressure 16 Bar, various pressure and port can be choose.
Full stain steel valve, anti-explosion valve can be choose.
CE Certificate, level of protection is IP65, insulation grade is H.
Viton seal.
Equipped with 16 Bar ball filter, fission with drain valve, “L” construction.
Work Conditions
Steps as following:
1)Close isolation valves, press test button, to ensure that electronic drain valve has been isolated from air compressor
system(under the zero pressure).
2)Cut off the drain valve power supply.
3)Remove the coil(Before remove the coil,must cut off the valve first,or valve body will burn out after electrify coil), separate
the solenoid valve, remove the valve core and the spring, use water to clean it then installed again, the fault can be ruled out.
Drain valve to simulate an electronic circuit solid state electronic timer and solenoid valve to match the timing of realization of the compressed air system condensate automatic discharge. High voltage electron drain valve widely used in filters, separators,dryers, gas tank, drip legs and other compressed air system components, discharge time and interval can be adjusted according to different needs.
Characters
Imported IC chip, High quality in low price.
A model is suitable for all applications, easy installation, fully automatic and maintenance free.
Interval time and discharge time is adjustable and have a test button.
Pressure 16 Bar, various pressure and port can be choose.
Full stain steel valve, anti-explosion valve can be choose.
CE Certificate, level of protection is IP65, insulation grade is H.
Viton seal.
Equipped with 16 Bar ball filter, fission with drain valve, “L” construction.
Work Conditions
Steps as following:
1)Close isolation valves, press test button, to ensure that electronic drain valve has been isolated from air compressor
system(under the zero pressure).
2)Cut off the drain valve power supply.
3)Remove the coil(Before remove the coil,must cut off the valve first,or valve body will burn out after electrify coil), separate
the solenoid valve, remove the valve core and the spring, use water to clean it then installed again, the fault can be ruled out.
Technical data: |
||
Timer |
MIC-N |
|
Interval time(OFF) |
0.5- 45 min |
|
Drain time(ON) |
0.5-10 s |
|
Manual test button |
Yes, Microswitch |
|
Supply voltage |
24-240V AC/DC 50/60Hz (Votage 380VAC Special order acceptable) |
|
Level of protection |
IP65 |
|
Electrical Connection |
DIN43650A |
|
Indicator light |
LED indicate supply on/off |
|
Design standard |
VDE 01 10C |
|
Valve |
MIC-A |
|
Type |
The two two-way valve of moving |
|
Inlet/Outlet port size |
1/2”3/8" or 1/4" |
|
Max work pressure |
16Bar |
|
Max/Min environment temperature |
2C/55'C |
|
Maximum medium temperature |
90'C |
|
Valve body |
Forging brass(Full stainless steel valve's special order is acceptable) |
|
Insulation |
H grade themal resistance |
|
Level of protection |
IP65 (After right insallation) |
|
Voltage |
24-230V AC/DC (Voltage 380VAC Special order acceptable) |
|
Voltage range |
+/-10% |
|
Installation position |
Anywhere |
|
