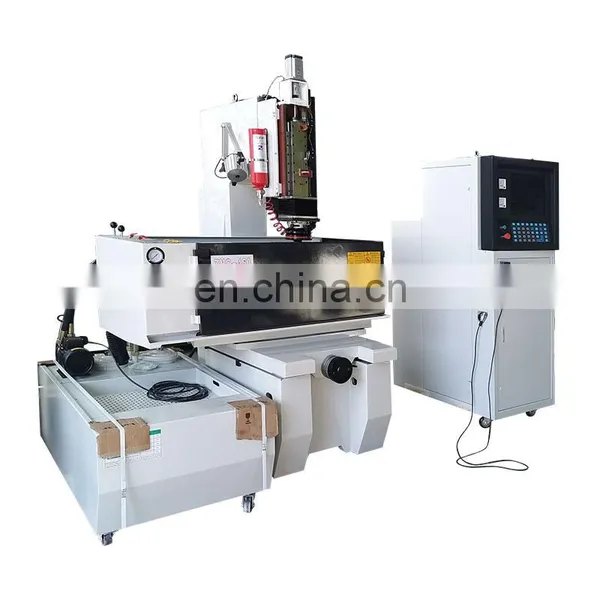

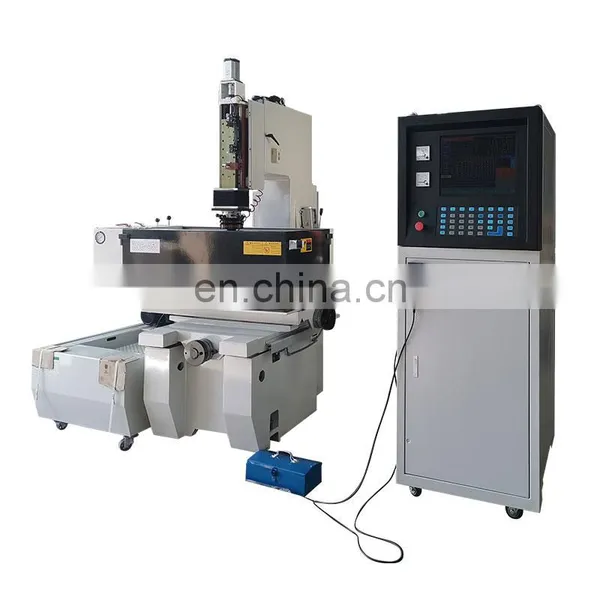

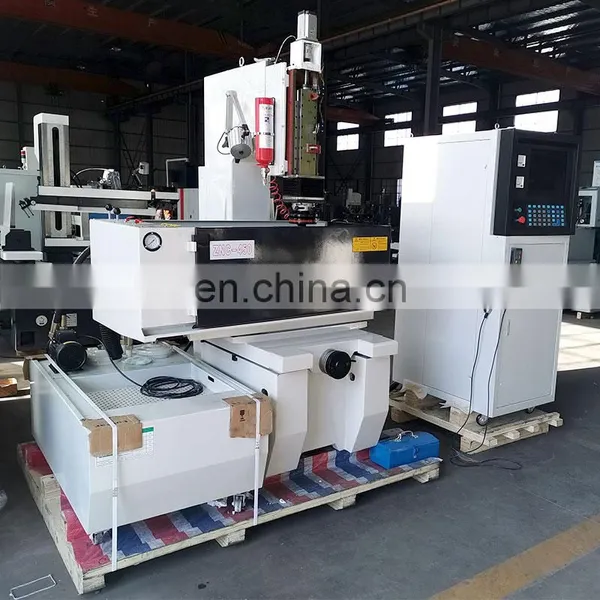

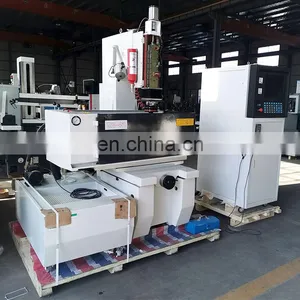

Small Edm Machine High Accuracy ZNC-450 ZNC EDM Die Sinking Machine With LCD Control Cabinet
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
2022 New Drill Edm CNC High Speed Edm Drilling Machine DD703-F Edm Drilling Machine Small HoleNegotiableMOQ: 1 -
CNC WIRE CUTTING MACHINE DK7335 EDM MACHINE METAL LATHENegotiableMOQ: 1
-
DK7725M High Precision Cnc Wire Cutting Machines With Competitive PriceNegotiableMOQ: 1
-
DK7732 High Quality CNC Wire EDM Machine With CENegotiableMOQ: 1
-
DK7740 Wire Cutting Machine With High Precision for Metal WorkingNegotiableMOQ: 1
Product Description
ZNC EDM Die Sinking Machine ZNC-450:
Main Feature: LCD control cabinet, 50A/75A
• Depth design for Positive and Negative processing
• Special circuit for deep hole processing
• Superfine processing circuit
• Large area electrode servo stabilization circuit
• Electrode protection circuit
• Separate circuit design for high and low clearance
• PWM servo system, DC servo motor (AC servo optional)
• Two stage travel for high product
• High voltage overlap synchronous discharge system
• Square wave and equal energy posterior output
• Moisture-proof and Anti-rust PCB board design
• Automatic program discharge parameters
• Different processing conditions can be selected
• DRO for XYZ
• Auto Fire detection with extinguisher
• Insufficient liquid level protection
50A Build-in control system
75A LCD control cabinet
Model |
ZNC-350 |
ZNC-430 |
ZNC-450 |
ZNC-500 |
Working table (mm) |
600*350 |
650*350 |
700*420 |
800*500 |
Inside oil groove size(mm) |
1000*540*370 |
970*620*390 |
1170*640*450 |
1200*740*500 |
Outside oil groove size(mm) |
1230*600*380 |
1210*650*390 |
1400*690*450 |
1470*800*490 |
Max. height of oil level(mm) |
300 |
300 |
350 |
380 |
X travel(mm) |
350 |
400 |
450 |
500 |
Y travel(mm) |
250 |
300 |
350 |
400 |
Spindle travel (mm) |
200 |
200 |
200 |
250 |
2nd stage travel(mm) |
200 |
200 |
200 |
220 |
Distance from spindle to working table(mm) |
500 |
550 |
550 |
600 |
Maximum working current (A) |
50 (Built-in) |
50(Built-in) |
75 |
75 |
Max. Processing speed(mm3/min) |
300 |
300 |
500 |
500 |
Min. electrode consumption |
<0.2% |
<0.2% |
<0.2% |
<0.2% |
Best Roughness(Ra) |
0.3 |
0.3 |
0.3 |
0.3 |
Max.Electrode weight(kgs) |
30 |
30 |
50 |
80 |
Max. load on working table(kgs) |
500 |
500 |
800 |
1000 |
Machine weight(kgs) |
1200 |
1800 |
1900 |
2100 |
Dimension(mm) |
1500*1400*2450 |
1700*1800*2300 |
1800*1500*2450 |
2200*1600*2550 |

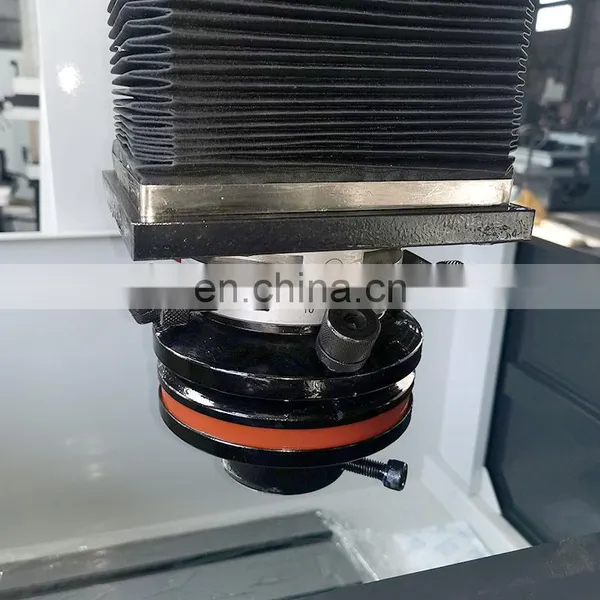

Detailed Images
Company Profile
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2:Can we visit your factory before order?
A2:Sure.All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3:Do you have a stock?
A3:Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4:What’s the MOQ?
A4:One set only.
Q5:How about your quality?
A5:We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6:Do you have professional engineers?
A6:Yes.we have professional engineers and designers. We can provide OEM services.
Q7:Can you provide customized machines?
A7:Yes, we can design and manufacture according to your specific requirements.
