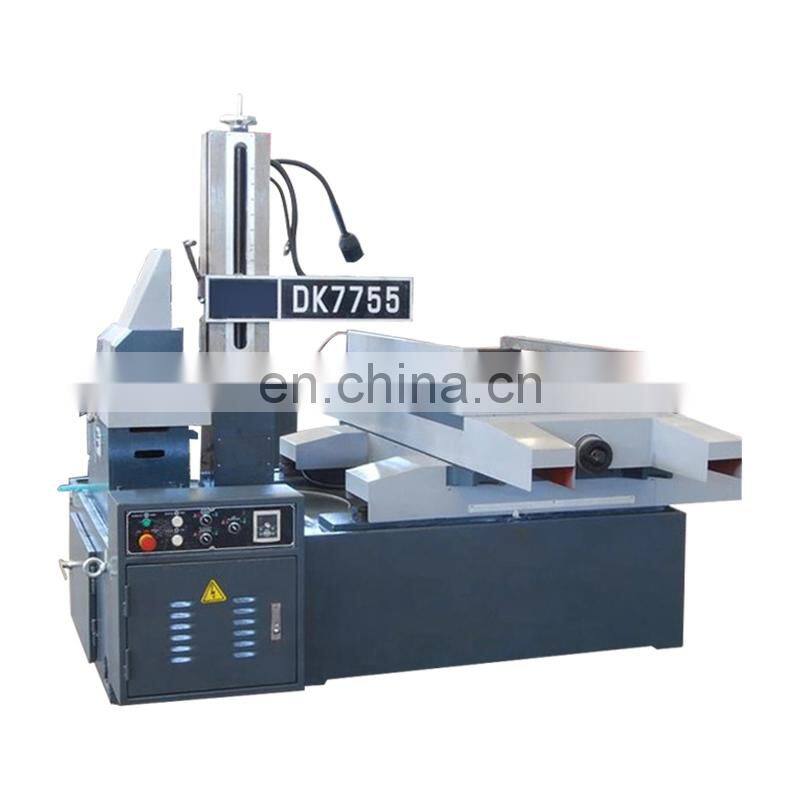

High Accuracy Molybdenum Wire Cutting DK7755 Wire EDM Machine With CE

Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Business Type:

Manufacturer

Year Established:

2018

Factory Size:

Below 1,000 square meters

Contact Supplier Request Quote Chat Now

Jingjiang Fuji Technology Co., Ltd.

4Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Product Description

Main Features:

DK7755 wire cutting machine body is the use of high-strength cast iron (HT250) forming the base for the machine load-bearing parts. Integral structure, DK7755 wire cutting machine casting body are used resin casting technology casting (walking wire on the use of this technology), two high-temperature annealing, DK7755 line cutting machine in the same type of machine weight is also large, to ensure that mechanical precision The constant change.

Specification	DK7755
Working table travel	550mm*850mm
Cutting the maximum thickness of the workpiece	600mm Adjustable
Cutting the maximum thickness of the workpiece	600mm Adjustable
Working table size	750mm*10500mm
Cutting the workpiece the maximum taper	30°
Cutting the workpiece the maximum taper	30°
Maximum cutting efficiency	100mm2/min (Cr12 40mm thickness)
Maximum cutting current	5A
Roughness	Ra≤2.5μm (Cr12 40mm thickness)
Precision	0.015 (Φ10mm)
Machine power consumption	3kw
Electrode wire diameter	Φ0.18mm
Take the wire speed	11m/s
Drive mode	Stepper
Control method	Open-loop control
Machine Dimension	1865mm1720mm1700mm
Weight of machine bed	2450kg

Company Profile

FAQ

Q1: How is the warranty?

A1: Warranty time is 13 months after BL date.

Q2:Can we visit your factory before order?

A2:Sure.All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.

Q3:Do you have a stock?

A3:Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.

Q4:What’s the MOQ?

A4:One set only.

Q5:How about your quality?

A5:We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.

Q6:Do you have professional engineers?

A6:Yes.we have professional engineers and designers. We can provide OEM services.

Q7:Can you provide customized machines?

A7:Yes, we can design and manufacture according to your specific requirements.
