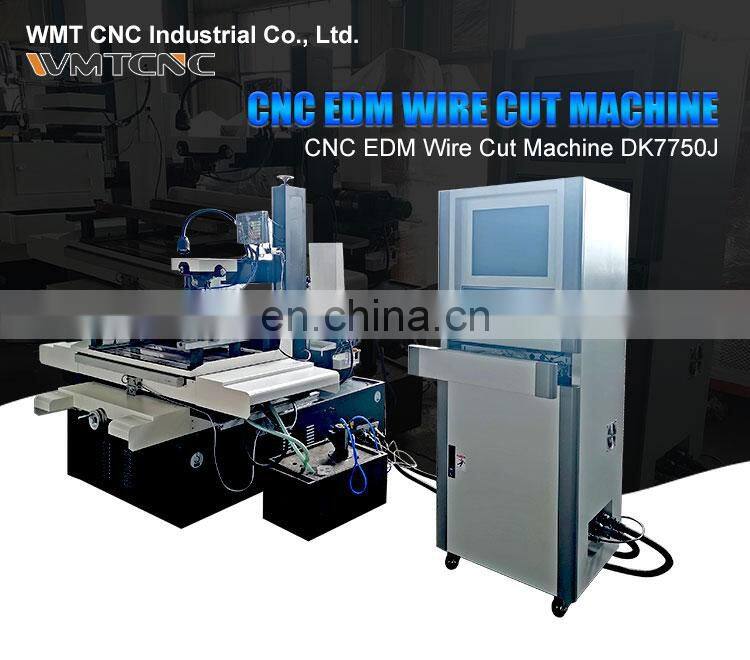

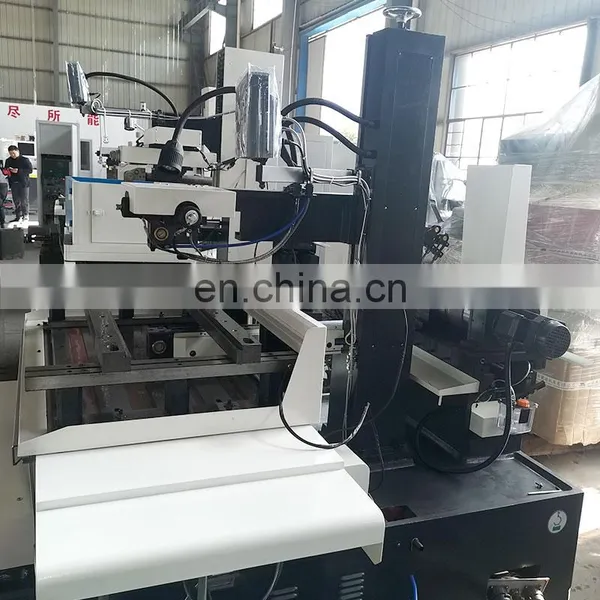

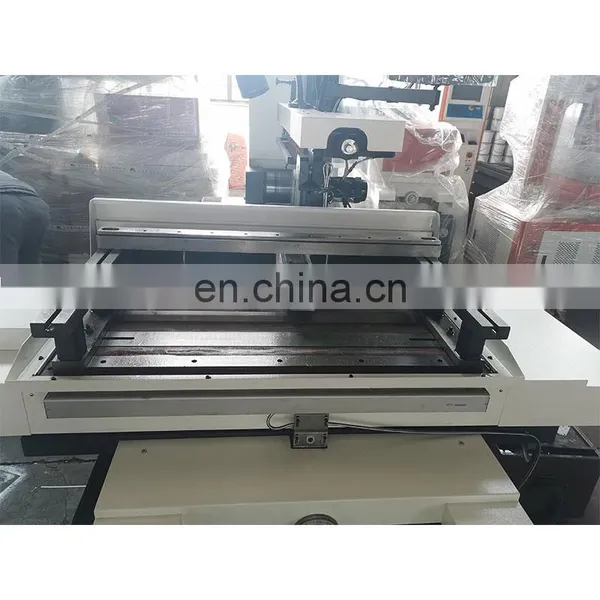

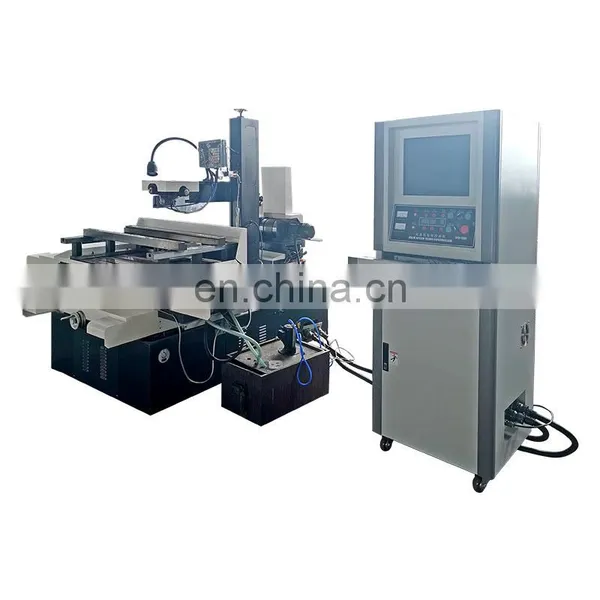

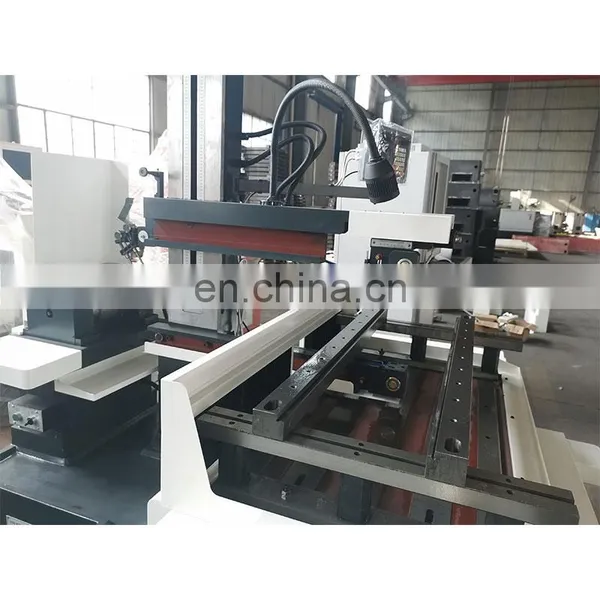

High Accuracy DK7750J Molybdenum CNC EDM Wire Cut Machine
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Small Edm Machine High Accuracy ZNC-450 ZNC EDM Die Sinking Machine With LCD Control CabinetNegotiableMOQ: 1 -
2022 New Drill Edm CNC High Speed Edm Drilling Machine DD703-F Edm Drilling Machine Small HoleNegotiableMOQ: 1
-
CNC WIRE CUTTING MACHINE DK7335 EDM MACHINE METAL LATHENegotiableMOQ: 1
-
DK7725M High Precision Cnc Wire Cutting Machines With Competitive PriceNegotiableMOQ: 1
-
DK7732 High Quality CNC Wire EDM Machine With CENegotiableMOQ: 1
Product Description
DK series CNC EDM Wire Cut Machine:
Wire EDM is a method to cut conductive materials with a thin electrode that follows a programmed path. The electrode is a thin wire. Typical diameters range from 0.12mm - 0.30mm (0.004" - 0.012") . The hardness of the work piece material has no detrimental effect on the cutting speed. It is widely used in die making, heat treated material.
Main Features:
1. Large travel, high cutting speed.
2. With 3° taper as standard attachment. Taper angles up to 15, 30°as option. Small wire diameters 0.12- 0.30mm (down to 0 .08mm).
3. Accuracy: 0.015mm, even 0.01mm( middle speed) Roughness: Ra 1.0-2.5 µm
4. Low consumption, material saving.
5. Advanced CAD/CAM equipment with file transfer and translation capabilities.
6. High cutting speed modular is optional.
7. Multi-cut control system can improve the accuracy and finish.

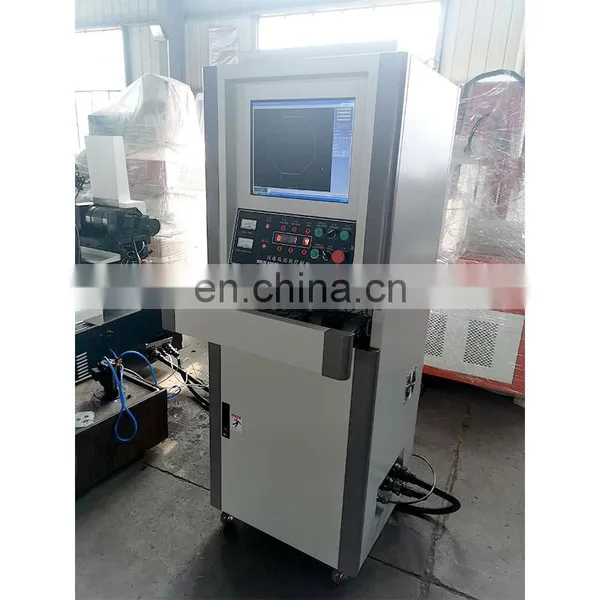

Control system: ( HL,HF,Autocut)
a) Single-cut PC control cabinet.
b) Multi-cut PC control cabinet.
Model | DK7750 | DK7750J | DK7763 | DK7763J | DK7780 | DK7780J | |||||
Working Table size (mm) | 1000*650 | 1140*650 | 1140*750 | 1350*760 | 1350*980 | 1650*990 | |||||
Stroke（X/Y/）(mm) | 630*500 | 800*500 | 800*630 | 1000*630 | 1000*800 | 1200*800 | |||||
Max. Z axis travel(mm) | 600 | 600 | 600 | 600 | 800 | 800 | |||||
Max. workpiece weight(kg) | 800 | 1000 | 1000 | 1200 | 2000 | 2000 | |||||
Cutting angle(°/80mm) | ±3° , 15°，30° | ±3° , 15°，30° | ±3° , 15°，30° | ±3° , 15°，30° | ±3° , 15°，30° | ±3° , 15°，30° | |||||
Position accuracy (mm) | 0.015/300 | ||||||||||
Repeatability (mm) | 0.01 | ||||||||||
Wire moving speed (m/s) | 11.5 | ||||||||||
Cutting speed (mm2/min) | Standard cutting speed:110-120, Max. cutting speed: 180-200 | ||||||||||
Power | Single phase, 220V/50Hz / three phase, 380V/50Hz ( less than 2.5kw) | ||||||||||
Dimension（mm） | 1800*1600*1900 | 1800*1750*1900 | 2200*1800*2000 | 2200*2000*2000 | 2600*2200*2150 | 2600*2400*2150 | |||||
Net weight（kg） | 1850 | 1950 | 2500 | 2800 | 3800 | 4400 | |||||
Detailed Images
Company Profile
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2:Can we visit your factory before order?
A2:Sure.All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3:Do you have a stock?
A3:Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4:What’s the MOQ?
A4:One set only.
Q5:How about your quality?
A5:We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6:Do you have professional engineers?
A6:Yes.we have professional engineers and designers. We can provide OEM services.
Q7:Can you provide customized machines?
A7:Yes, we can design and manufacture according to your specific requirements.
