J23-40 Ton Ton C Frame Power Press Punching Machine for Metal Work

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

Features:
This series of press adopts rotating key positive clutch,which has a simple structure and is convenient to operate and maintain,achieving smooth operation, low impact and low noise. J23-25 open type inclinable press machine is the first to adopt rolling bearing rather than the commonly used sliding bearing(copper bearing) for the transmission gear, making the transmission gear more wear-resistant and avoiding loud noises of gears caused by the quickly worn copper bearing; The 80T level and above press machine all adopt the structure of pneumatic dual balance cylinder,chich has small fluctuation of the balancec force and it balances the slider and the upper die, chich can cause the lathe unstable. And it can also avoide the clsah and noise caused by the converse force of gears in transmission, and avoid accidents cause by the falling of slider when the brake fails or the connecting rod ruptures.

Size Information

TEMS			UNIT	J23-16	J23-25	J23-35	J23-40
Capacity			KN	160	250	350	400
Nominal stroke			mm	2	2.5	3.5	6
Slide stroke length			mm	55	65	80	90
Stroke times per minute			spm	125	55	50	45
Max. Die set height			mm	220	270	290	320
Die shut height adjustment			mm	45	55	60	65
Throat depth			mm	160	200	220	250
Distance between uprights			mm	220	270	280	340
Slide bottom size	L-R	mm	200	250	250	300
Slide bottom size		F-B	mm	180	220	220	260
Stemhole size	Diameter	mm	40	40	40	50
Stemhole size		Depth	mm	60	60	60	70
Bolster size	L-R	mm	450	560	610	700
		F-B	mm	300	370	400	460
		Thickness	mm	40	50	60	65
Table hole diameter			mm	100	120	130	150
Max. inclinable angle			°	35	30	30	30
Bolster surface height			mm	750	800	815	850
Over all dimensions	L-R	mm	847	950	1058	1335
		F-B	mm	1150	1345	1460	1721
		Height	mm	1910	2130	2225	2488
Distance between foundation bolts	L-R	mm	450	600	650	750
Distance between foundation bolts		F-B	mm	780	920	1020	1060
Motor power			kw	1.5	2.2	4	5.5
Weight			kg	1085	1780	2650	3540

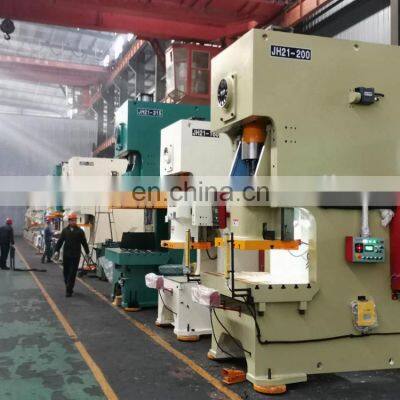

Machine Show:
