Home > Products > METAL SHEET FORMING > W11-16x2500 3 Roller Iron Plate Bend Rolling Machine Sheet Metal Plate Bending Machine

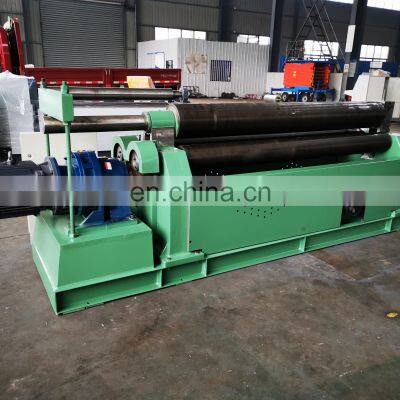

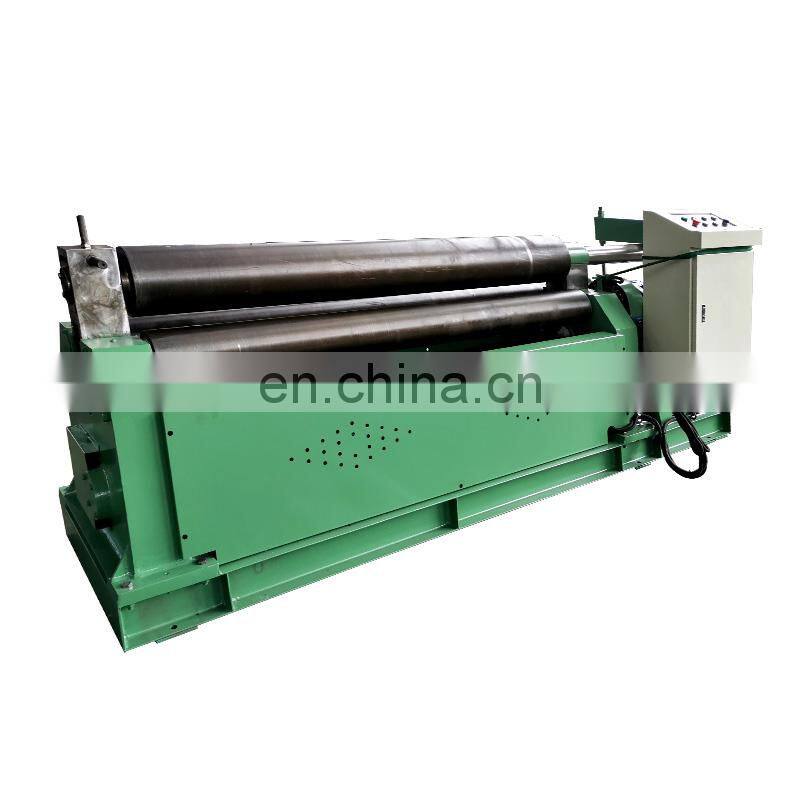

W11-16x2500 3 Roller Iron Plate Bend Rolling Machine Sheet Metal Plate Bending Machine
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
W11-8x2500 Factory Outlet Sheet Metal Plate Mechanical Three Rolling Machine
-
W12 Factory Price Automatic Hydraulic CNC 4-roller Metal Sheet Plate Bending Rolling Machine
-
W12 Factory Price CNC 4 Roller Plate Rolls Roller Bending Machine
-
W12-8x3000 Competitive Price Cnc Control Sheet Hydraulic 4 Roller Plate Rolling Machine
-
W12 CNC Hydraulic Plate Rolling Machine,Cone Rolling Machine,Scroll Bending Machine
-
W11-12x2500 Manufacturer Wholesale Cheap 12mm Max Thickness Sheet Rolling Machine
Product Description
Product Description
Introduce:

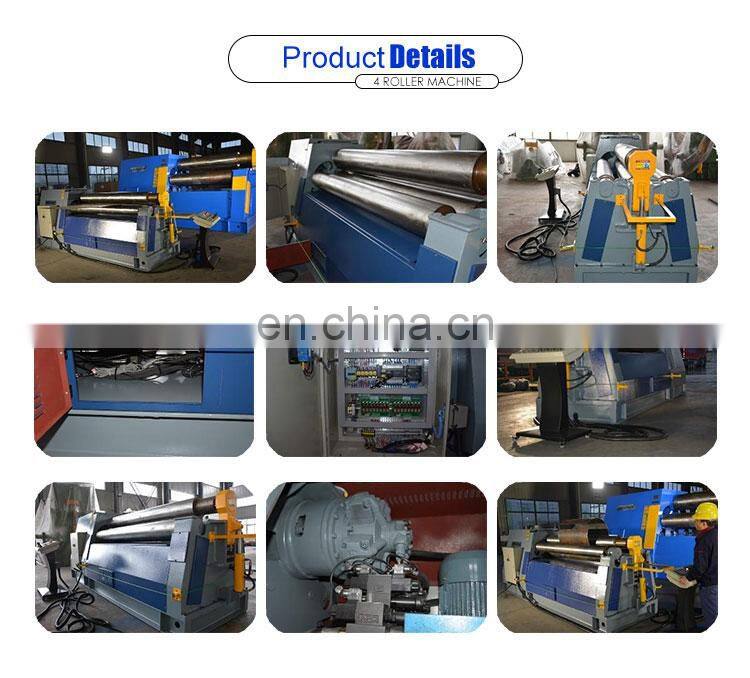

The machine adopts the four-roller structure with the upper roller as the main drive,Both upward and downward movement through hydraulic motors powered.The lower roller makes vertial movements and imposes a force on the piston through the hydraulic oli in the hydraulic cylinder so as to clamp the plate tight.Side rollers are arranged on the two sides of the lides of the lower roller,and make inclining movement along the guide rail,and provide drive through the screw,the nut,the worm and the leadscrew.The advantage of the machine is that the preliminary bending and rolling of the top ends of the plates can be conducted on the same machine.
Specification | Max Thickness of Coiled Plate (mm) | Max Width of Coiled Plate (mm) | Yielding Limit of Sheet Metal (mpa) | Coiling Speed (m/min) | Min Full Loading Diameter of Coiled Plate (mm) | Diameter of Top shaft (mm) | Diameter of Bottom shaft (mm) | Central distance between Bottom Shafts (mm) |
W11-4×1500 | 4 | 1500 | 245 | 5 | 300 | 150 | 140 | 185 |
W11-6×1500 | 6 | 1500 | 245 | 5 | 450 | 160 | 160 | 250 |
W11-6×2000 | 6 | 2000 | 245 | 4.5 | 450 | 185 | 170 | 250 |
W11-6×3200 | 6 | 3200 | 245 | 4.5 | 380 | 240 | 180 | 280 |
W11-8×2000 | 8 | 2000 | 245 | 4.5 | 400 | 230 | 180 | 300 |
W11-8×2500 | 8 | 2500 | 245 | 4.5 | 600 | 230 | 180 | 300 |
W11-12×2500 | 12 | 2500 | 245 | 4.5 | 600 | 260 | 220 | 340 |
W11-12×3000 | 12 | 3000 | 245 | 4 | 700 | 280 | 250 | 360 |
W11-16×2000 | 16 | 2000 | 245 | 4 | 650 | 260 | 220 | 340 |
W11-16×2500 | 16 | 2500 | 245 | 4 | 700 | 300 | 250 | 360 |
W11-16×3200 | 16 | 3200 | 245 | 4 | 850 | 340 | 280 | 440 |
W11-20×2000 | 20 | 2000 | 245 | 4 | 700 | 280 | 250 | 360 |
W11-20×2500 | 20 | 2500 | 245 | 4 | 850 | 340 | 280 | 440 |
