Home > Products > METAL SHEET FORMING > W11 6X2000 factory price mechanical three-roller symmetrical plate rolling machine

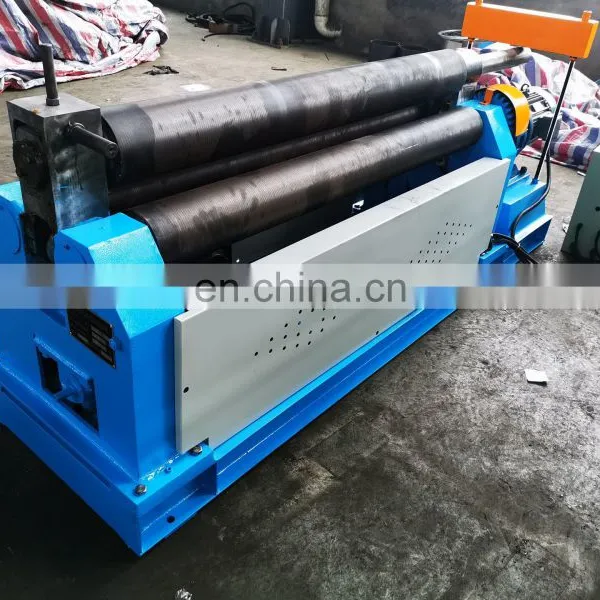

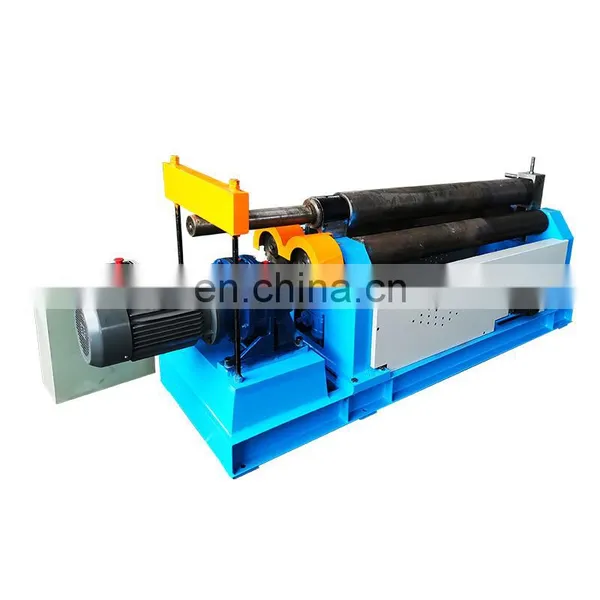

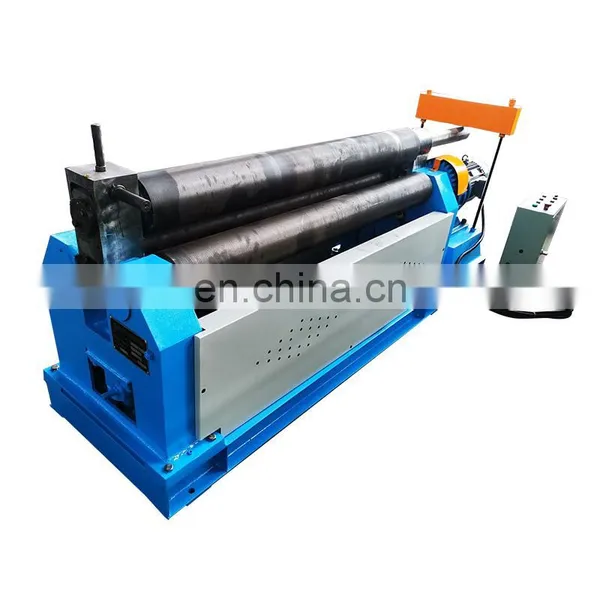

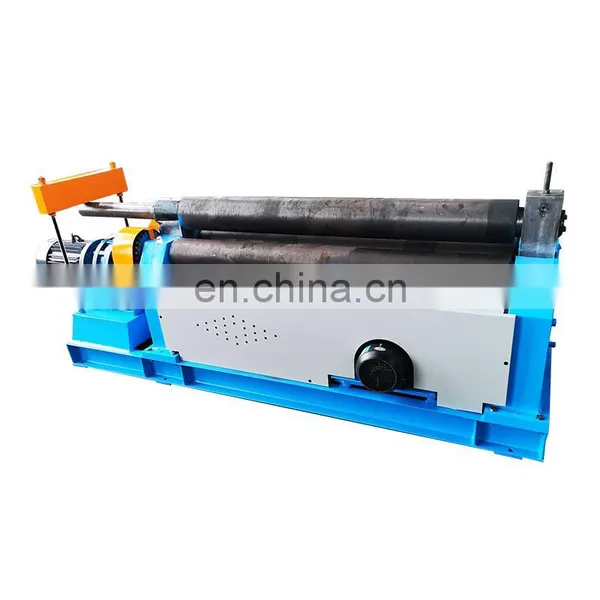

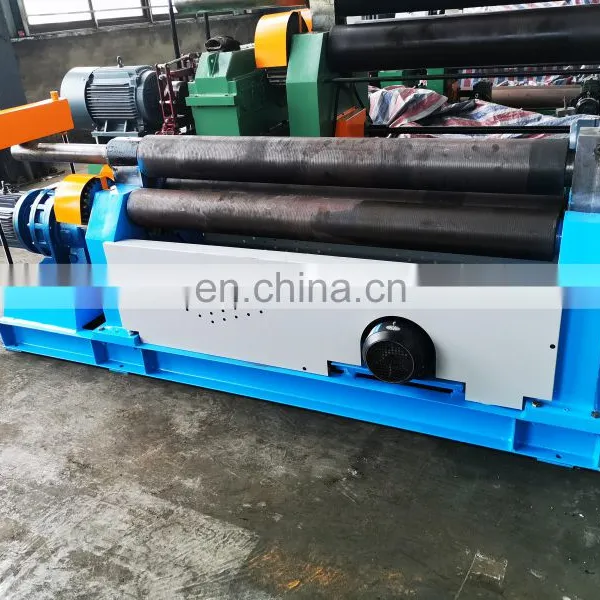

W11 6X2000 factory price mechanical three-roller symmetrical plate rolling machine

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

Introduce:

The machine adopts the four-roller structure with the upper roller as the main drive,Both upward and downward movement through hydraulic motors powered.The lower roller makes vertial movements and imposes a force on the piston through the hydraulic oli in the hydraulic cylinder so as to clamp the plate tight.Side rollers are arranged on the two sides of the lides of the lower roller,and make inclining movement along the guide rail,and provide drive through the screw,the nut,the worm and the leadscrew.The advantage of the machine is that the preliminary bending and rolling of the top ends of the plates can be conducted on the same machine.

Specification	Max Thickness of Coiled Plate (mm)	Max Width of Coiled Plate (mm)	Yielding Limit of Sheet Metal (mpa)	Coiling Speed (m/min)	Min Full Loading Diameter of Coiled Plate (mm)	Diameter of Top shaft (mm)	Diameter of Bottom shaft (mm)	Central distance between Bottom Shafts (mm)
W11-4×1500	4	1500	245	5	300	150	140	185
W11-6×1500	6	1500	245	5	450	160	160	250
W11-6×2000	6	2000	245	4.5	450	185	170	250
W11-6×3200	6	3200	245	4.5	380	240	180	280
W11-8×2000	8	2000	245	4.5	400	230	180	300
W11-8×2500	8	2500	245	4.5	600	230	180	300
W11-12×2000	12	2000	245	4.5	600	240	180	280
