250ton C frame double crank automatic power press machine JH25-250

Name: 250ton C frame double crank automatic power press machine JH25-250
Price: Negotiable

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Description

Punching press machine Features:
1.Steel welded body, heat treatmen, high rigidity, accuracy and stability;
2.Double crank, high frequency quenching, grinding treatment;
3.Hex retangular guideway;
4.Wet clutch, hydraulic overload protector;
5.Auto lubrication, electric die adjustment.

Size Information

Specifications			Unit	JH25-160			JH25-200			JH25-250
Type				S	H	S	H	S	H
Nominal Force			KN	1600			2000			2500
Nominal Stroke			mm	6			7			7
Slide Stroke			mm	200	130	250	150	280	170
Slide Strokes Per Minute	Fixed	min-1	45	60	35	50	30	40
			Variable		35-55	40-70	25-40	30-60	20-35	30-45
Maximum Die Set Height			mm	450	485	500	550	550	605
Die Height Adjustment			mm	100			110			120
Between slide center and frame			mm	390			430			470
Columns Distance			mm	1600			1920			2190
Slide Bottom Size(LRxFB)			mm	1500x580			1850x650			2100x700
Shank hole size			mm	3-Φ60x85			3-Φ70x90			3-Φ70x100
Bolster Size(LRxFB)			mm	2040x760			2420x840			2700x920
Bolster Thickness			mm	165			170			180
Bolster Surface Height			kgs	900			1000			1100
Motor Power			KW	18.5			22			30
Overall Dimension(LRxFB)			mm	2080x2150x3380			2370x2550x3820			2700x2850x4180
Weight(Appriximate)			Kg	19000			26500			35000

Machine Details

Standard accessories:

1) Wet clutch

2) Hydraulic overload protecting pump

3) Auto lubrication system

4) Manual lubrication system

5) Balance
sulinders for slide and upper die

6) Digital die height indicator

7) Joint for miss-feeding

8) Touch screen

9) Electronic crankshaft angle indicator

10) Cam controller

11) Rotary encoder

12) Movable operation panel

13) Die height adjusted motor

14) PLC:Programmable
logical controller

15) Air source quick connector

16) Foundation bolts

17) Air blowing device

Optional accessories:

1) Light curtain

2) Foot pedal

3) Air cushion device

4) Die quick change device

5) Frequency changer

6) Automatic feeding the output
shaft

7) Shock Absorption Pads

8) Knock our device (Shank hole)

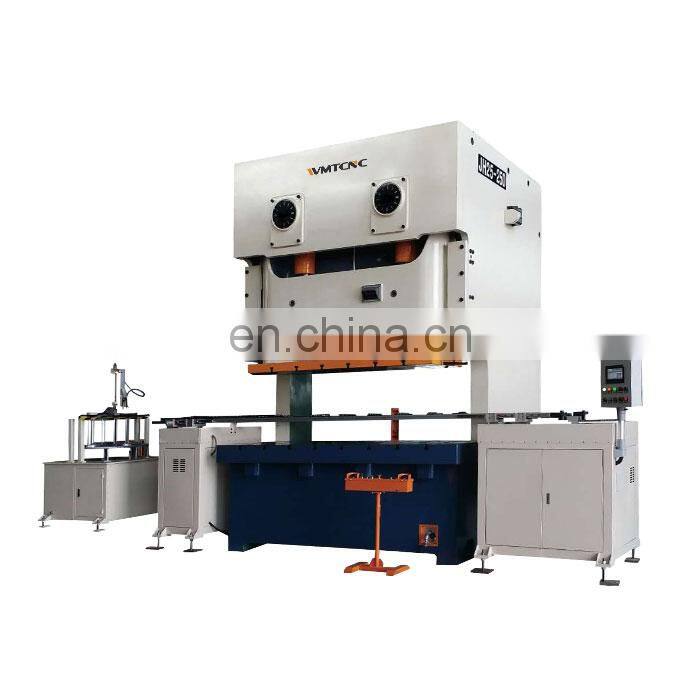

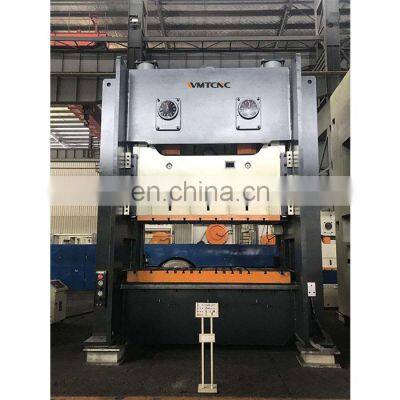

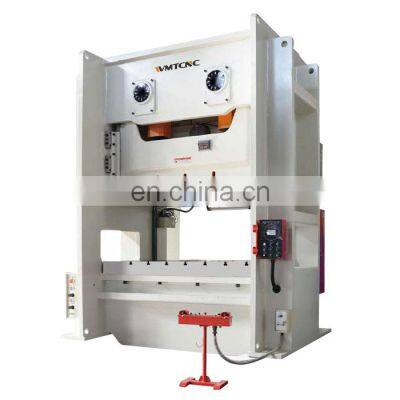

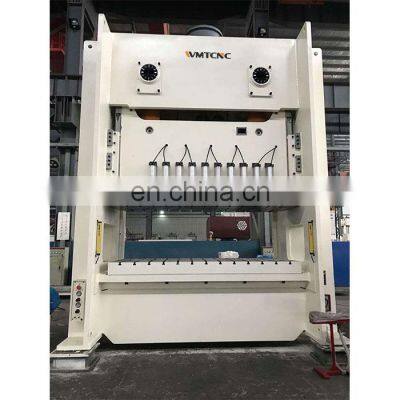

Machine Show:
