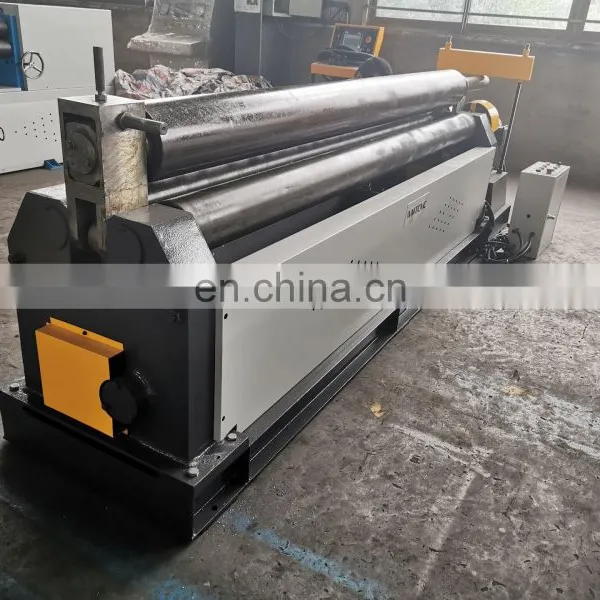

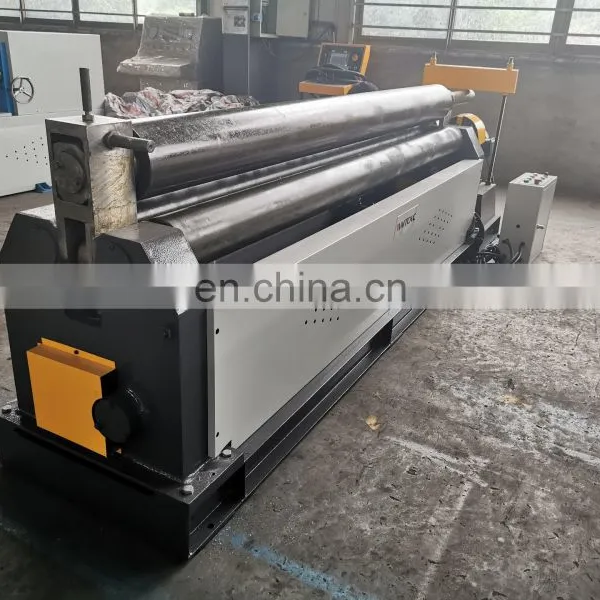

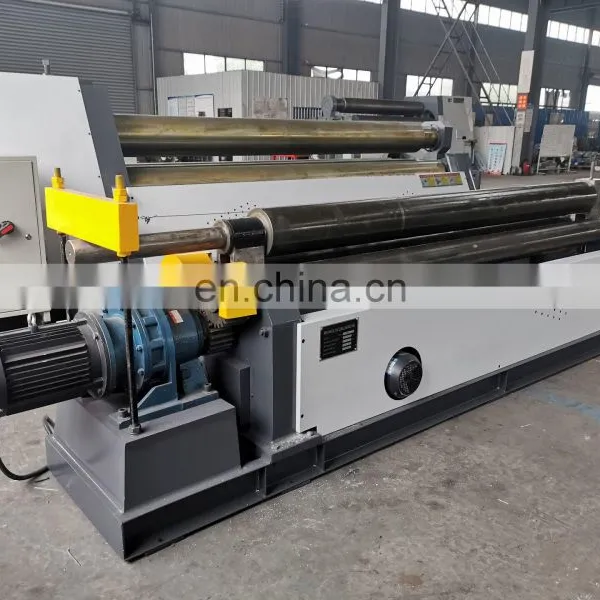

W11-8x2500 Factory Outlet Sheet Metal Plate Mechanical Three Rolling Machine
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
W12 Factory Price Automatic Hydraulic CNC 4-roller Metal Sheet Plate Bending Rolling MachineNegotiableMOQ: 1 -
W12 Factory Price CNC 4 Roller Plate Rolls Roller Bending MachineNegotiableMOQ: 1
-
W12-8x3000 Competitive Price Cnc Control Sheet Hydraulic 4 Roller Plate Rolling MachineNegotiableMOQ: 1
-
W12 CNC Hydraulic Plate Rolling Machine,Cone Rolling Machine,Scroll Bending MachineNegotiableMOQ: 1
-
W11-12x2500 Manufacturer Wholesale Cheap 12mm Max Thickness Sheet Rolling MachineNegotiableMOQ: 1
Introduce:
The machine adopts the four-roller structure with the upper roller as the main drive,Both upward and downward movement through hydraulic motors powered.The lower roller makes vertial movements and imposes a force on the piston through the hydraulic oli in the hydraulic cylinder so as to clamp the plate tight.Side rollers are arranged on the two sides of the lides of the lower roller,and make inclining movement along the guide rail,and provide drive through the screw,the nut,the worm and the leadscrew.The advantage of the machine is that the preliminary bending and rolling of the top ends of the plates can be conducted on the same machine.
Specification |
Max Thickness of Coiled Plate (mm) |
Max Width of Coiled Plate (mm) |
Yielding Limit of Sheet Metal (mpa) |
Coiling Speed (m/min) |
Min Full Loading Diameter of Coiled Plate (mm) |
Diameter of Top shaft (mm) |
Diameter of Bottom shaft (mm) |
Central distance between Bottom Shafts (mm) |
W11-4×1500 |
4 |
1500 |
245 |
5 |
300 |
150 |
140 |
185 |
W11-6×1500 |
6 |
1500 |
245 |
5 |
450 |
160 |
160 |
250 |
W11-6×2000 |
6 |
2000 |
245 |
4.5 |
450 |
185 |
170 |
250 |
W11-6×3200 |
6 |
3200 |
245 |
4.5 |
380 |
240 |
180 |
280 |
W11-8×2000 |
8 |
2000 |
245 |
4.5 |
400 |
230 |
180 |
300 |
W11-8×2500 |
8 |
2500 |
245 |
4.5 |
600 |
230 |
180 |
300 |
