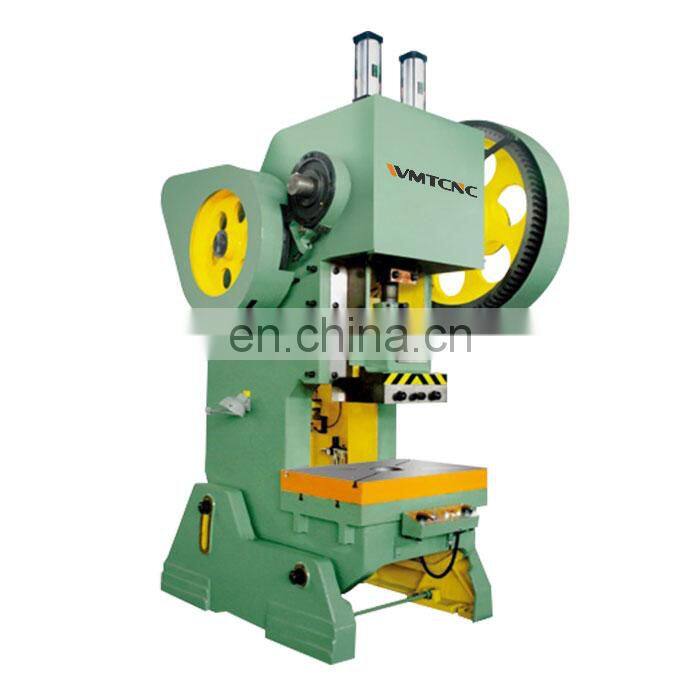

J23-6.3 C Frame Power Press Punching Machine for Metal Work

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

Features:
This series of press adopts rotating key positive clutch,which has a simple structure and is convenient to operate and maintain,achieving smooth operation, low impact and low noise. J23-25 open type inclinable press machine is the first to adopt rolling bearing rather than the commonly used sliding bearing(copper bearing) for the transmission gear, making the transmission gear more wear-resistant and avoiding loud noises of gears caused by the quickly worn copper bearing; The 80T level and above press machine all adopt the structure of pneumatic dual balance cylinder,chich has small fluctuation of the balancec force and it balances the slider and the upper die, chich can cause the lathe unstable. And it can also avoide the clsah and noise caused by the converse force of gears in transmission, and avoid accidents cause by the falling of slider when the brake fails or the connecting rod ruptures.

Size Information

TEMS			UNIT	J23-6.3	J23-10	J23-16	J23-25	J23-35
Capacity			KN	63	100	160	250	350
Nominal stroke			mm	2	2	2	2.5	3.5
Slide stroke length			mm	35	45	55	65	80
Stroke times per minute			spm	170	145	125	55	50
Max. Die set height			mm	150	180	220	270	290
Die shut height adjustment			mm	30	35	45	55	60
Throat depth			mm	110	130	160	200	220
Distance between uprights			mm	150	180	220	270	280
Slide bottom size	L-R	mm	140	170	200	250	250
Slide bottom size		F-B	mm	120	150	180	220	220
Stemhole size	Diameter	mm	30	30	40	40	40
Stemhole size		Depth	mm	55	55	60	60	60
Bolster size	L-R	mm	310	370	450	560	610
		F-B	mm	200	240	300	370	400
		Thickness	mm	30	35	40	50	60
Table hole diameter			mm	60	80	100	120	130
Max. inclinable angle			°	45	35	35	30	30
Bolster surface height			mm	750	730	750	800	815
Over all dimensions	L-R	mm	620	665	847	950	1058
		F-B	mm	780	900	1150	1345	1460
		Height	mm	1503	1658	1910	2130	2225
Distance between foundation bolts	L-R	mm	314	394	450	600	650
Distance between foundation bolts		F-B	mm	530	610	780	920	1020
Motor power			kw	0.75	1.1	1.5	2.2	4
Weight			kg	400	576	1085	1780	2650

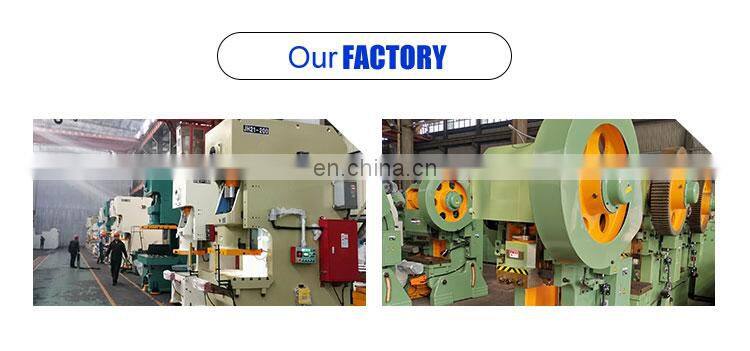

Machine Show:
