Home > Industrial Equipment & Components > Bearing > Cylindrical Roller Bearing > Hot Sale Wear Resistance Single Column Centripetal Thrust Cylindrical Roller Bearings 42305 NJ305 Size 25x62x17mm

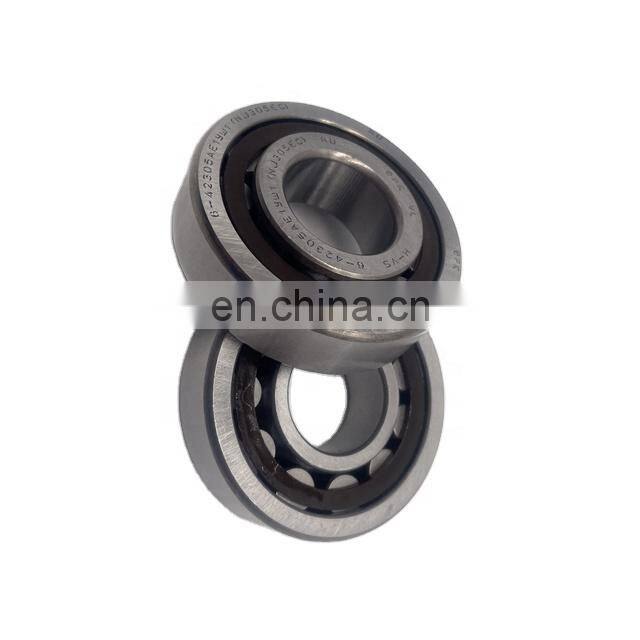

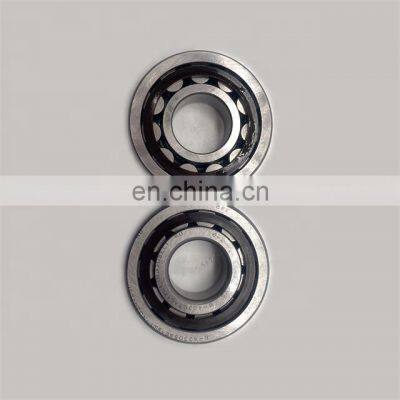

Hot Sale Wear Resistance Single Column Centripetal Thrust Cylindrical Roller Bearings 42305 NJ305 Size 25x62x17mm
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Quality Cylindrical Roller Bearings Hot Sale 12507 NF2207 Size 35*72*23NegotiableMOQ: 1 -
High Quality Cylindrical Roller Bearings Hot Sale EPK 92705 2101-1701073 Size 25*55*18NegotiableMOQ: 1
-
High Quality Cylindrical Roller Bearings Hot Sale ITK 92705 2101-1701073 Size 25*55*18NegotiableMOQ: 1
-
High Quality Cylindrical Roller Bearings 66-692306 3741-1802082 Front Axle UAZ Car NUP306NR Size 30*72*19NegotiableMOQ: 1
-
China Technology Production High Hardness Advertising Company Sliding Roller Bearing Cylindrical 42205 NJ205 Size 25*52*14NegotiableMOQ: 1
Specification
Product name | 42305 NJ 305 2108-1701180 Single Row Cylindrical roller bearing for car VAZ UAZ |
Usage | Single row radial roller bearings |
Size | 25x62x17mm |
Car Make | VAZ 2108-2112 UAZ |
OE NO. | NJ305 42305 |
Place of Origin | China |
Brand Name | VLBG |
Model Number | NJ305ECP NJ305ECP NJ305ET NJ305-E-TVP2NJ305EW NTN NJ305 NJ305ECML NJ305EM NJ305 |
Warranty | 12Months |
Inner diameter | 25MM |
Outside diameter | 62MM |
Height | 17MM |
Bearing type | Friction bearings |
Certificate | ISO9001/TS16949 |
Steel Grade | shkh-15 |
Number of ball | 28 pcs |
Weight | 0.27 |
Number of rolling bodies | Fourteen |
Rotational speed in grease | 13000 |
Dynamic Load Capacity.H | 29300 |
Static Lifting capacity.H | 2770 |
Standard | TU 37.006.087-89 |
Design features | with flanges on the outer ring with one flange on the inner ring |
Roller length | 6.5 |
ISO | NJ305 |
Body diameter | 6.5 |
Roller radial bearing with short cylindrical rollers 42305
bearing 42305 (NJ 305): 25*62*17
Inner Diameter (d): 25mm;
Outer Diameter (D): 62mm;
Width (H): 17mm;
Weight: 0.27 kg;
Roller dimensions, mm: 9 x 9; Number of rollers: 14 pieces; Inner ring bead diameter: 38.6 mm; Outer ring flange diameter: 49.4mm; Load capacity dynamic: 28.66 kN; Load capacity static: 15 kN; Rated speed: 12000 rpm
Diameter and number of rollers
Bearing 42305 is very common, as it is widely used in VAZ and UAZ
vehicles
VAZ 2108, VAZ 2109 - the secondary shaft of the gearbox, in the VAZ 2110, 2111, 2112 models they are also still placed on the
front support of the box.
Cars and minibuses UAZ - is installed in almost all models on the intermediate shaft of the gearbox, as well as in the transfer
case.
vehicles
VAZ 2108, VAZ 2109 - the secondary shaft of the gearbox, in the VAZ 2110, 2111, 2112 models they are also still placed on the
front support of the box.
Cars and minibuses UAZ - is installed in almost all models on the intermediate shaft of the gearbox, as well as in the transfer
case.
FAQ
Q.Are you trading company or manufacturer ?
Yes we are factory.
Q.How long is your delivery time?
Generally it is 5-10 days if the goods are in stock.
Q.Do you provide samples ? is it free or extra ?
Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q.What is your terms of payment ?
We can accept any way payment.
Yes we are factory.
Q.How long is your delivery time?
Generally it is 5-10 days if the goods are in stock.
Q.Do you provide samples ? is it free or extra ?
Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q.What is your terms of payment ?
We can accept any way payment.
