Product Description
Specification
Product name | 42205 NJ205 2108-1701031 gearbox beariangs for Russian car BA3 2108-2112 |
Usage | Single row radial roller bearings |
Size | 25x52x15mm |
Car Make | VAZ 2108-2112 BA3 21208-2112 |
OE NO. | NJ205 42205 2108-1701031 |
Place of Origin | China |
Brand Name | VLBG |
Model Number | 2108-1701031 |
Warranty | 24Months |
Inner diameter | 25MM |
Outside diameter | 52MM |
Height | 15MM |
Bearing type | Friction bearings |
Certificate | ISO9001/TS16949 |
Steel Grade | shkh-15 |
Number of ball | 28 pcs |
Weight | 0.139 |
Number of rolling bodies | Fourteen |
Rotational speed in grease | 13000 |
Dynamic Load Capacity.H | 29300 |
Static Lifting capacity.H | 2770 |
Standard | TU 37.006.087-89 |
Design features | with flanges on the outer ring with one flange on the inner ring |
Roller length | 6.5 |
ISO | NJ205 |
Body diameter | 6.5 |
Bearing 42205 gearbox VAZ
It is a short cylindrical roller radial bearing with outer ring flanges and a single flange inner ring. In addition to high radial loads, this design allows limited axial loads to be transferred in one direction.
Bearing 42205 is very common, since it is widely used in VAZ and MAZ vehicles (gearboxes, engines, pumps and other units). In this regard, it is produced at most factories in our country, and there are a large number of modifications of it. The main factories producing this type:
As already noted, the bearing is widely used in domestic cars and trucks.
VAZ 1111 ("Oka"), VAZ 2108, VAZ 2109 - gearbox bearing (gearbox primary shaft), in models 2110, 2111, 2112 they are also placed on the front support of the box.
MAZ 537, 538 - bearing of the torque converter, engine, oil pump, models 543, 547, 7310, 7410 - the engine is installed.
KZKT tractors - a torque converter, an engine, an oil pump, an evacuation pump.
Decoding of the main additional designations:
KM - steel separator;
E - polyamide cage (less friction);
B - bronze separator (wear-resistant);
Р - bearing made of heat-resistant steel
Roller radial bearing with short cylindrical rollers 42205

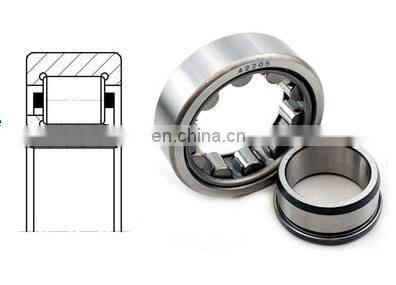

Roller radial bearing with short cylindrical rollers 42205 has two flanges on the inner surface of the outer race and one on the outer surface of the inner race.
This design, in addition to the high carrying capacity, allows the product to work on the "stop" in one direction. In the original, this is a domestic product, the import analogue has the designation ISO NJ205.

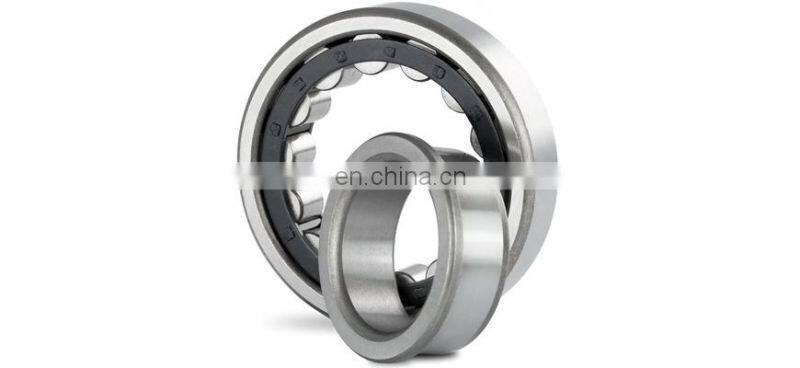

Bearing GOST 42205 consists of a removable inner race and a block of rolling elements, which together with the outer ring forms a non-separable part. It has dimensions of 25x52x15 mm. The weight of the product, including packaging, does not exceed 0.14 kg
Diameter and number of rollers
Short cylindrical rollers, arranged in one row in a groove inside the outer ring and fixed by a cage, form a rolling element assembly. The dimensions of the rollers are 6.5x6.5 mm. Quantity per assembly unit - 14 pcs.
The cage can be steel stamped from carbon steel, machined from non-ferrous metals or stainless steel, cast from polyamide. You can learn about all the features of a particular product from add. marking.
Roller bearing article 42205 is intended for installation in units with a high load on moving parts. In statics, the impact on it can reach 8.8 kN, in dynamics - 16.8 kN. The rated frequency depends on the type of grease. In oil, it reaches 15,000 rpm.
The type of packaging depends on the manufacturer. Domestic parts are often sold in oiled paper. Imported counterparts are always packed in separate boxes. Most often, in addition to the part, there is a short instruction inside the package.
Analogs and modifications
Russian roller bearing 42205 is offered in modifications with different types of cages. Products of high (5th) accuracy class also go on sale. Sometimes there are also modifications with increased thermal clearances 76-42205.
In the same units where the domestic part works, you can install an imported analogue. The NJ205 is the same size and weight.
Applicability
Bearing 42205 is widely used in the domestic automotive industry. He works in the checkpoint of VAZ 2108-2112 cars. Installed in the same unit VAZ-1111 and ZAZ-1101.
