Home > Products > Cylindrical Roller Bearings > 42205 NJ205ECP NJ205ECJ NJ205EW NJ205-E-TVP2 NJ205 NJ205E Cylindrical roller bearing used in VAZ and MAZ vehicles

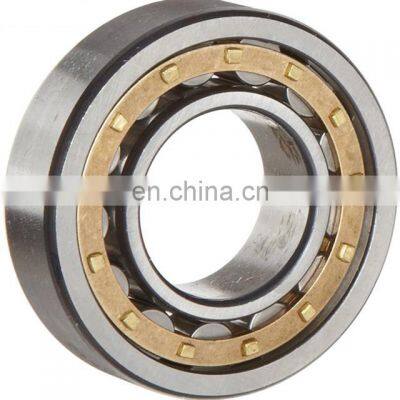

42205 NJ205ECP NJ205ECJ NJ205EW NJ205-E-TVP2 NJ205 NJ205E Cylindrical roller bearing used in VAZ and MAZ vehicles

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

Specification

Product name	42205 NJ205ECP NJ205ECJ NJ205EW NJ205-E-TVP2 NJ205 NJ205E Cylindrical roller bearing used in VAZ and MAZ vehicles
Usage	Single row radial roller bearings
Size	25x52x15mm
Car Make	VAZ and MAZ vehicles
OE NO.	NJ205 42205
Place of Origin	China
Brand Name	VLBG
Model Number	42205 NJ205ECP NJ205ECJ NJ205EW NJ205-E-TVP2 NJ205 NJ205E
Warranty	24Months
Inner diameter	25MM
Outside diameter	52MM
Height	15MM
Bearing type	Friction bearings
Certificate	ISO9001/TS16949
Steel Grade	shkh-15
Number of ball	28 pcs
Weight	0.139
Number of rolling bodies	Fourteen
Rotational speed in grease	13000
Dynamic Load Capacity.H	29300
Static Lifting capacity.H	2770
Standard	TU 37.006.087-89
Design features	with flanges on the outer ring with one flange on the inner ring
Roller length	6.5
ISO	NJ205
Body diameter	6.5

Roller radial bearing with short cylindrical rollers 42205

Roller radial bearing with short cylindrical rollers 42205 has two flanges on the inner surface of the outer race and one on the outer surface of the inner race. This design, in addition to the high carrying capacity, allows the product to work on the "stop" in one direction. In the original, this is a domestic product, the import analogue has the designation ISO NJ205.

Bearing GOST 42205 consists of a removable inner race and a block of rolling elements, which together with the outer ring forms a non-separable part. It has dimensions of 25x52x15 mm. The weight of the product, including packaging, does not exceed 0.14 kg

Diameter and number of rollers

Short cylindrical rollers, arranged in one row in a groove inside the outer ring and fixed by a cage, form a rolling element assembly. The dimensions of the rollers are 6.5x6.5 mm. Quantity per assembly unit - 14 pcs. The cage can be steel stamped from carbon steel, machined from non-ferrous metals or stainless steel, cast from polyamide. You can learn about all the features of a particular product from add. marking.

Roller bearing article 42205 is intended for installation in units with a high load on moving parts. In statics, the impact on it can reach 8.8 kN, in dynamics - 16.8 kN. The rated frequency depends on the type of grease. In oil, it reaches 15,000 rpm. The type of packaging depends on the manufacturer. Domestic parts are often sold in oiled paper. Imported counterparts are always packed in separate boxes. Most often, in addition to the part, there is a short instruction inside the package.

Analogs and modifications

Russian roller bearing 42205 is offered in modifications with different types of cages. Products of high (5th) accuracy class also go on sale. Sometimes there are also modifications with increased thermal clearances 76-42205. In the same units where the domestic part works, you can install an imported analogue. The NJ205 is the same size and weight.

Applicability Bearing 42205 is widely used in the domestic automotive industry. He works in the checkpoint of VAZ 2108-2112 cars. Installed in the same unit VAZ-1111 and ZAZ-1101.
