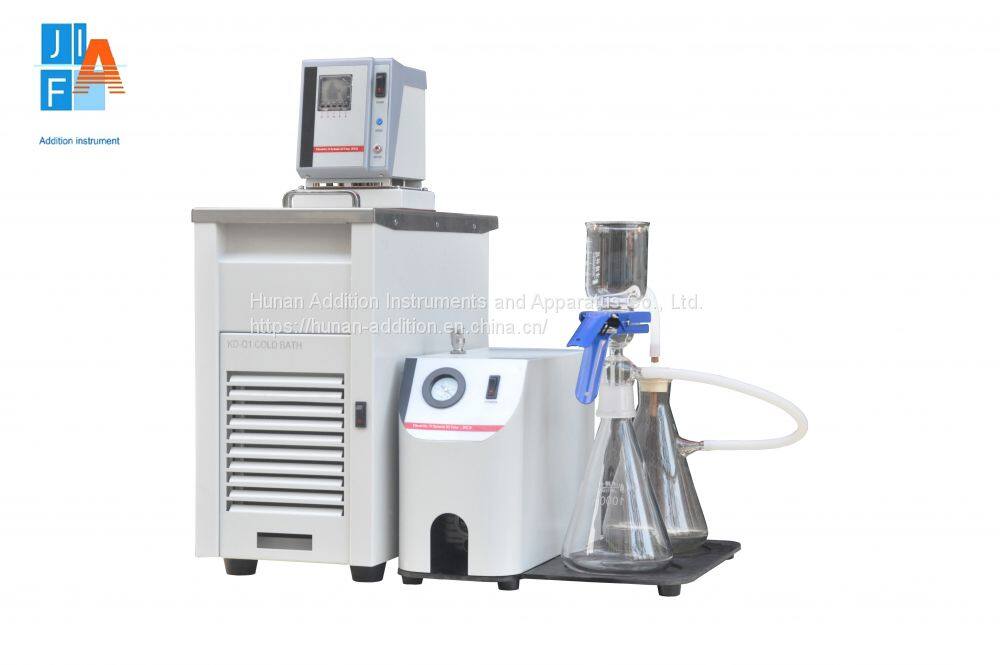

Hydraulic Oil Filterability Tester

Hydraulic Oil Filterability Tester

Product Model: Jf0210

Product Introduction

This instrument is valuable in evaluating the filtration performance of hydraulic oil. In the hydraulic oil of various industrial hydraulic systems and vehicle hydraulic systems, the clogging of the filter due to the poor filtration performance of the oil is a serious problem. Especially when the hydraulic system is mixed with a small amount of water, the blockage of the hydraulic system filter is more serious, thereby causing hydraulic transmission failure, wear and damage of the hydraulic pump and other components.

Product parameter

1. Applicable standard: SH/T0210

2. Refrigeration method: compressor refrigeration

3. Temperature control method: high-quality PID digital temperature controller

4. Temperature range: 0~60℃

5. Suction filtration method: vacuum pump

6. Working pressure: 86658pa

7. Pressure regulation: regulator valve

8. Timing method: digital display timer

9. Timing range: 0~999h

10. Working power supply: AC220V/50Hz

11. Instrument size: filter part: 360*280*410mm; circulating water bath: 240*510*670mm;

12. Net weight: 43KG

Main Feature:

1. Fully enclosed compressor refrigeration to ensure the supply of cooling capacity;

2. Stainless steel constant temperature bath;

3. Special rotary vane vacuum pump to provide sufficient vacuum;

4. The glass accessories meet the standard requirements;

5. Digital display time, easy to operate;

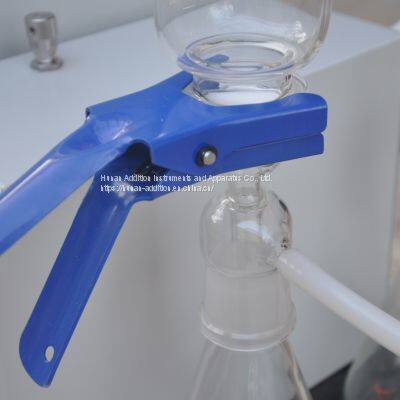

6. There is a scale on the glass funnel;

7. Precise regulator valve adjustment, the pressure can be controlled within the range of 86658pa

8. Microprocessor thermostat and PID control, digital display temperature, accuracy 0.1℃, Pt100 RTD temperature probe;

9. Operating temperature range: room temperature ~ 80°C; safety measures to prevent overheating or low liquid level;

10. The instrument is designed as a split structure, which is easy to operate.
