An overview,
TD26730-CXZ sanitary ceramic washing test device adopts frequency conversion constant pressure water supply system as the pressure supply unit of the device, which is automatically controlled and has the characteristics of simple operation and accurate test. The test device conforms to GB 26730-2011 sanitary ware, gravity type flushing device and sanitary ware frame test method, and conforms to GB6952-2005 Sanitary Ceramics and JC/T931-2003 Washing Valve of Mechanical Sanitary Ware for test equipment. It is mainly used to test the flushing performance of sanitary ceramic toilet, squat toilet and urinal.
Two, the main technical parameters
1, test pressure: 0.05 ~ 0.55MPa;
2, water consumption: 3 ~ 11 L/ time;
3, outlet pipe diameter: φ 20 mm, φ40 mm;
4. Overall dimension (length × width × height) : 2300×1800×890(mm)
5, power supply: AC 380V 50Hz
6, the instrument adopts intelligent touch screen computer control, easy to operate.
3. Structure description

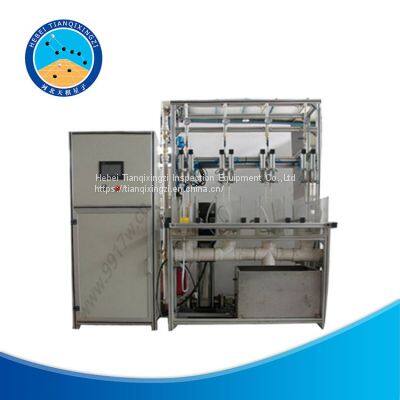

The test device is mainly composed of electrical cabinet, test box, water supply system and control system.
Four, working principle:
TD26730 - CXZ sanitary ceramics flushing test device adopts variable frequency constant pressure water supply system as a unit of pressure supply unit, the trial began, by means of the pressure sensor installed in the outlet pipe and flow sensor to detect real-time irrigation water pressure and flow signal, and feedback to the control system, control system to set the feedback signal and the signal, According to the actual situation, the water supply output of the system is adjusted, and the water consumption of the sample is measured with a scale, so as to realize the detection of washing performance of sanitary ware.
