Home > Products > Cutting Machine > Travel Head Cutting Machine
Travel Head Cutting Machine
- 1000 per Month
- T/T Credit Card
Product Description

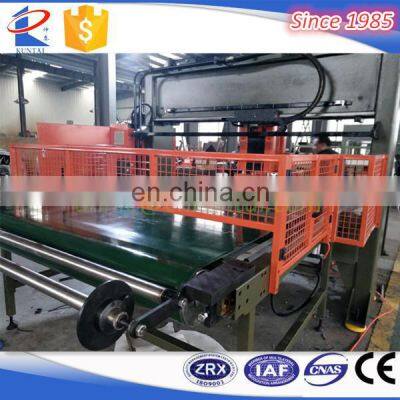

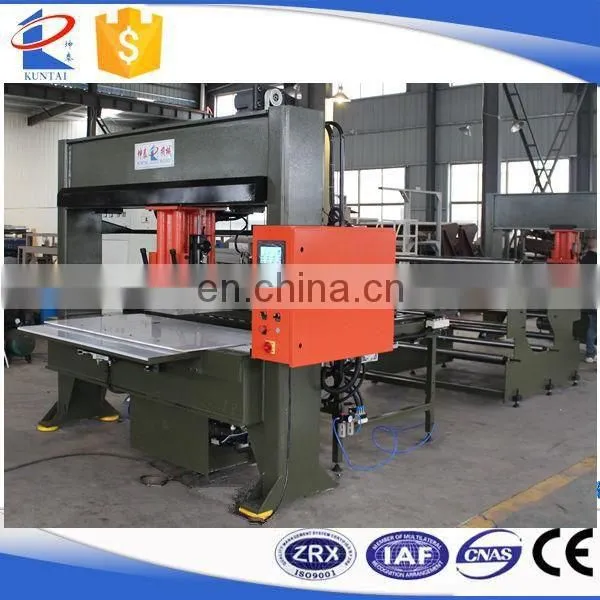

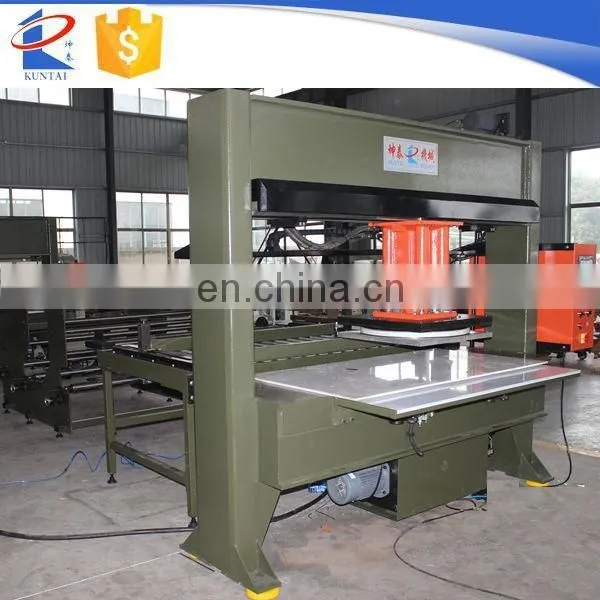

KT-C Series Travel Head Cutting Machine
Leather die Cutting Press Machine/ Hydraulic Die Cutting Machine/Shoe Making Machine
Rotating Head Cutting Machine/Travelling Head Cutting Press for Leather/PVC Desk Pad/Shoes Insoles/Ball Panels
Automatic Cutting Machine
Application
This kind of Automatic Die Cutting Press Machine is mainly suitable for die cutting single or multiple layers of nonmetal rolled materials by die cutter. It is widly used in many industries, such as:
- Automotive interior
- Sheet material industry supplies
- Floor mats
- Abrasives, abrasive paper/sand paper...
- Leather and leathergoods – shoe uppers, wallets, purses, belts
- Lampshades – fabric or plastic, with or without cut outs
- Garment – components for hats, ties, collars, shoulder pads
- Cork gaskets and mats
- Filters for machinery, breathing apparatus and the medical industry
- Foam and sponge – gaskets, packaging, consumer products
- Footwear components – shoes, insoles, insole socks, uppers, straps
- Plastics – PVC binders, lampshades, stationery products, gifts, novelties, gaskets
- Rubber – gaskets, seals, washers
- Textiles – sample swatches and pattern books, underwear and outerwear components, hats, ties
- Toys – soft toys, advertising novelties, mini jig-saw puzzles, etc.
Features of Automatic Die Cutting Press Machine
1. KT-C rotating travel head die cutting machine is widely used for continuous cutting of various nonmetal materials, such as PVC film, artificial leather, ball panels, shoes materials and so on.

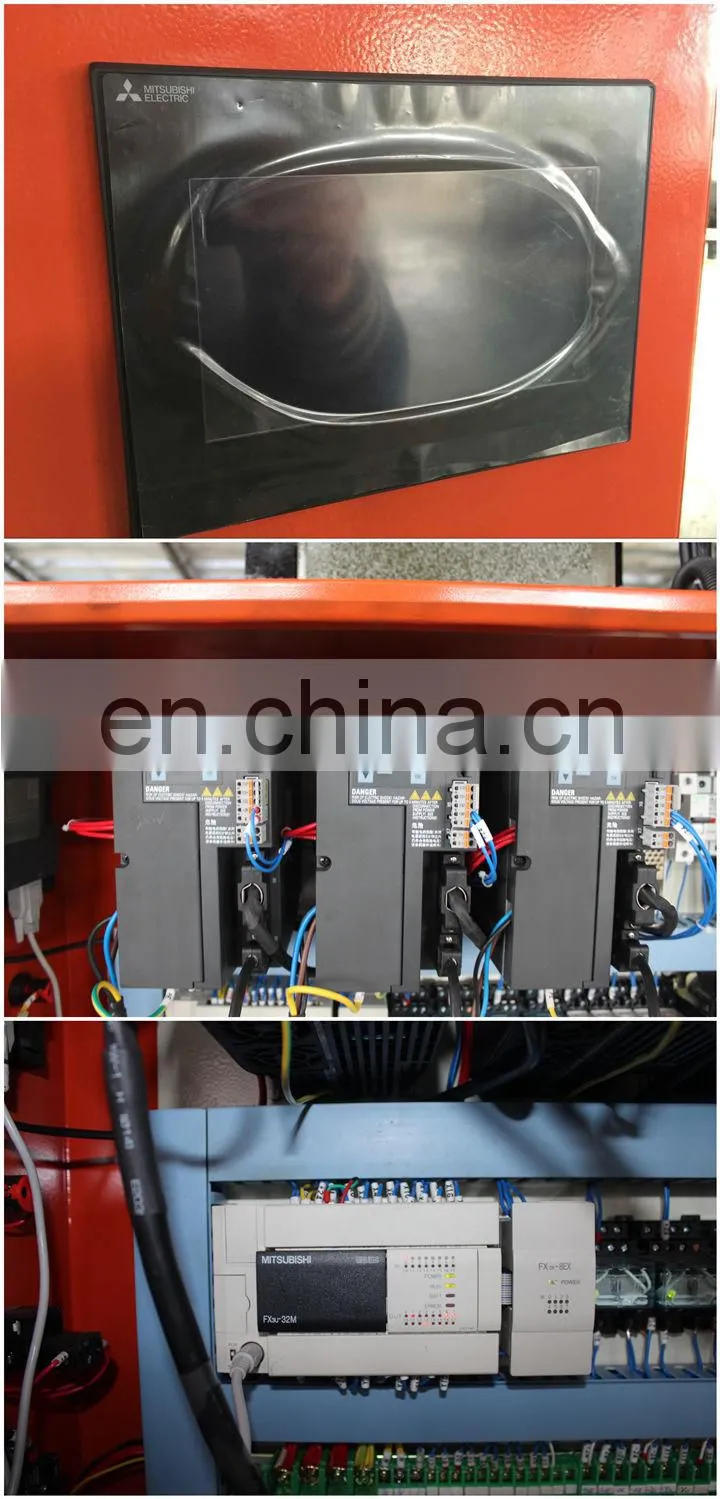

2. Servo motor is adopted for the rotating travel head so that its movement distance is precisely the same as what is preset. The travel head rotates to make the most of the raw materials.
3.The micro movement feature of the cutting board prolongs its service life.

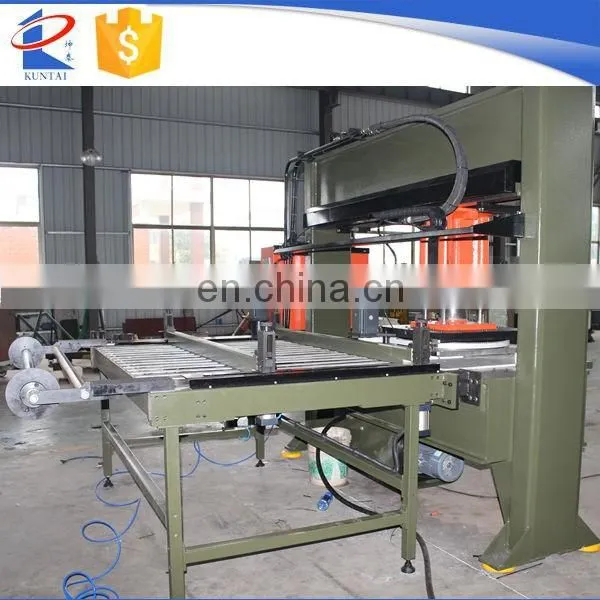

4. Auto clamp feeding system uses servo motor so that the materials feeding length is precisely the same as what is preset. Several layers of materials can be feed and cut precisely at the same time.
5. Hydraulic oil pump is of Italian brand which produces very low noise.
6. Hydraulic valve is straight way valve, enhancing cutting precision.
7. This machine is highly automatic, providing high productivity.
Option of Automatic Die Cutting Press Machine
- Rotating head
- Machine Color
- Servo Motor
- Imported oil pump

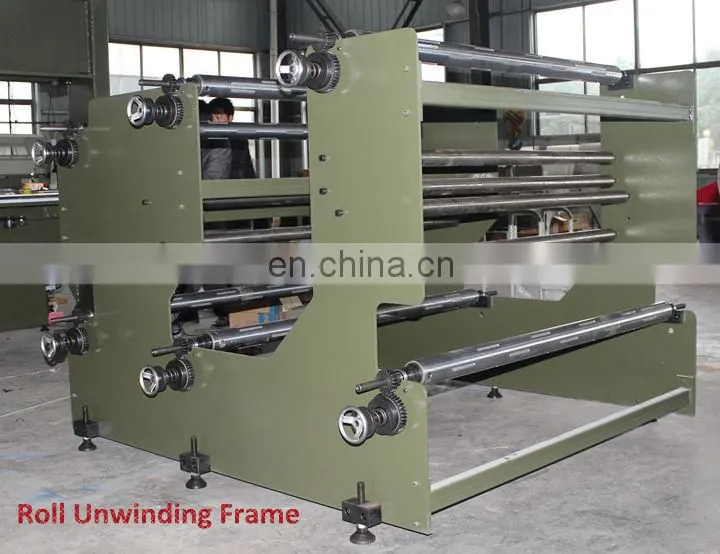

- Roll Unwinding Frame
- Bed Size
- Feeding Method
- Parts Brands
Technical Information(Customizable)--Automatic Die Cutting Press Machine
KT-C250 | KT-C250B | KT-C250C | KT-C500 | KT-C500 B | KT-C500C | |
---|---|---|---|---|---|---|
Cutting Force | 25 tons | 25 tons | 50 tons | 50 tons |
50 tons
| 50 tons |
Working Table(mm) | 1600*500 | 1800*500 | 2000*500 | 1600*500 | 1800*500 | 2000*500 |
Stroke(mm) | 150mm | 150mm | 150mm | 150mm | 150mm | 150mm |
Travel Head Size(mm) |
500*500 | 500*500 | 500*500 | 500*500 | 500*500 | 500*500 |
Motor Power | 2.2kw | 2.2kw | 2.2kw | 4.0kw | 4.0kw | 4.0kw |
Approx. Overall Dimensions (WxDxH) | 2200*720*2000 | 2400*720*2000 | 2600*720*2000 | 2200*720*2000 | 2400*720*2000 | 2600*720*2000 |
G.W | 1800 kg | 2100 kg | 3000 kg | 3000 kg | 3800 kg | 5000 kg |
Rotating Head Cutting Machine/Travelling Head Cutting Press for Leather/PVC Desk Pad/Shoes Insoles/Ball Panels
Rotating Head Cutting Machine/Travelling Head Cutting Press for Leather/PVC Desk Pad/Shoes Insoles/Ball Panels
Inner Package: Protective Film, etc
Outside Package: Plywood Case
- Cutting machines well packed with protective film and loaded in plywood case or export container;
- English version operation manual and technical data;
- One-Year-Period wear parts;
- Tool kit
Rotating Head Cutting Machine/Travelling Head Cutting Press for Leather/PVC Desk Pad/Shoes Insoles/Ball Panels
Since 1985, we have been manufacturing various die cutting machines and laminating machines for different industries, such as packaging industry, footwear industry, garment industry, upholstery industry and so on. Strong engineering power and satisfactory aftersales service consolidate our leading place in both domestic market and overseas market.
Rotating Head Cutting Machine/Travelling Head Cutting Press for Leather/PVC Desk Pad/Shoes Insoles/Ball Panels
