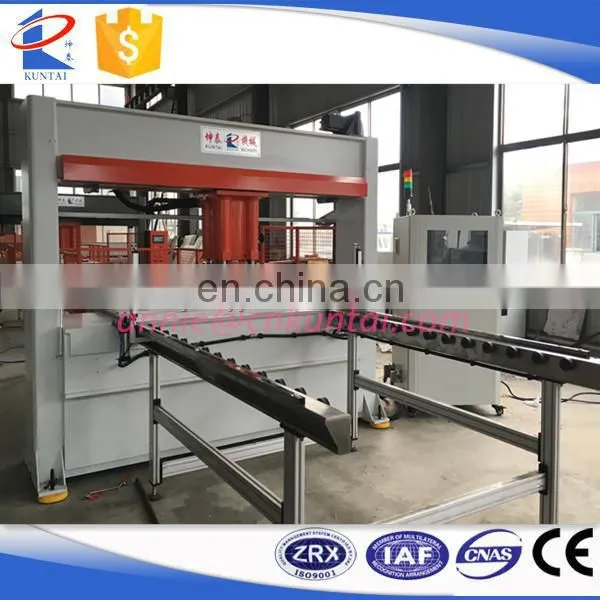

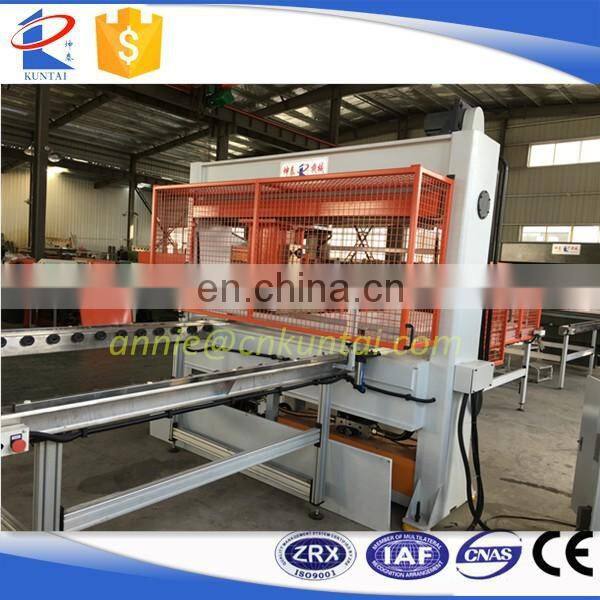

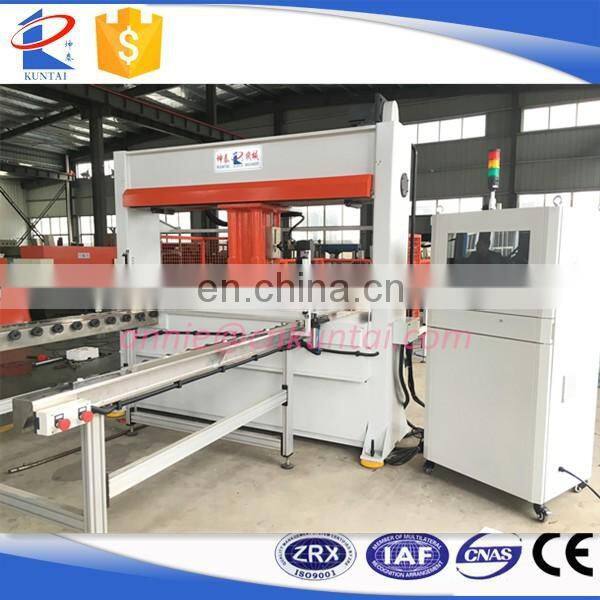

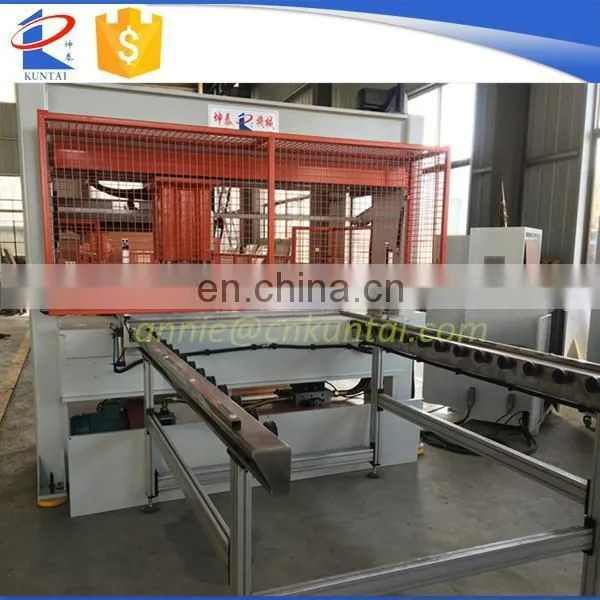

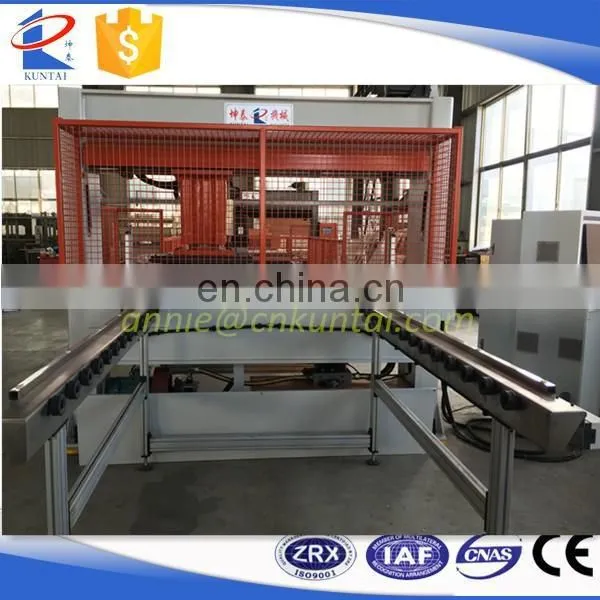

Help CenterDie Cutting Machine for Gasket, Shoes, Car Trim
Related Products
Popular mass production CNC EVA foam gasket cutting machine
Automatic Die Cutting Machine for Garment
CNC plush toy cutting machine
CE certified CNC Phone Gasket Die Cutting Press
High Efficiency CNC Cutting Machine
Latest CNC EVA Sheet Cutting Machine
Cutting Machine Video:
Automatic Cutting Machine with Conveyor Belt https://youtu.be/3T4ibfVZbgc
Double Side Auto Feed Die Cutting Machine for Packaging and Car Trim Materials https://youtu.be/y5DwYZcjb9A
Rotating Travel Head Hydraulic Cutting Machine https://youtu.be/X7WvvZkXGzg
Travel Head Die Cutting Machine with Conveyor Belt and Dust Collector https://youtu.be/OGOthrLxo7c
Swing arm die cutting machine for leather shoes, gaskets and EVA https://youtu.be/SQ9-2wfPJKs
Hydraulic Automatic Cutting Machine with Conveyor Belt for Car Trim https://youtu.be/auqAAwy9sN8
Receding Head Cutting Machine for Carpet https://youtu.be/X3uKlKeBFPI
Machine Features:

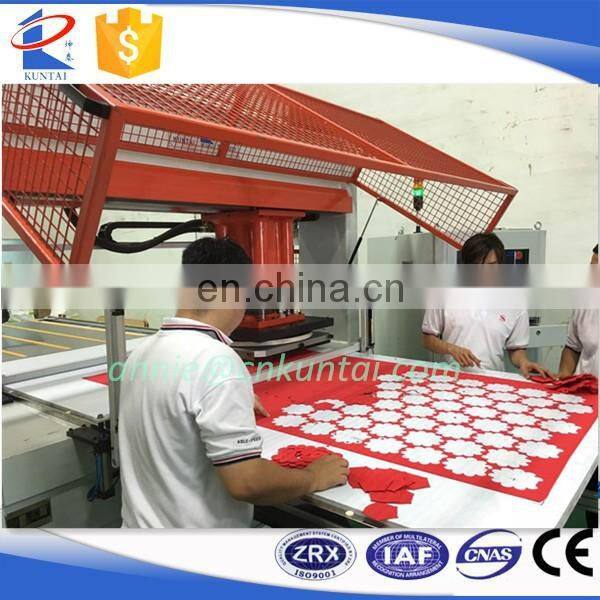

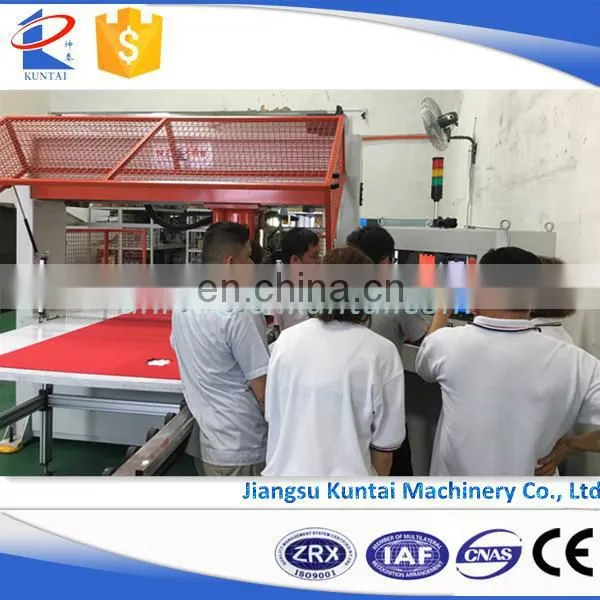

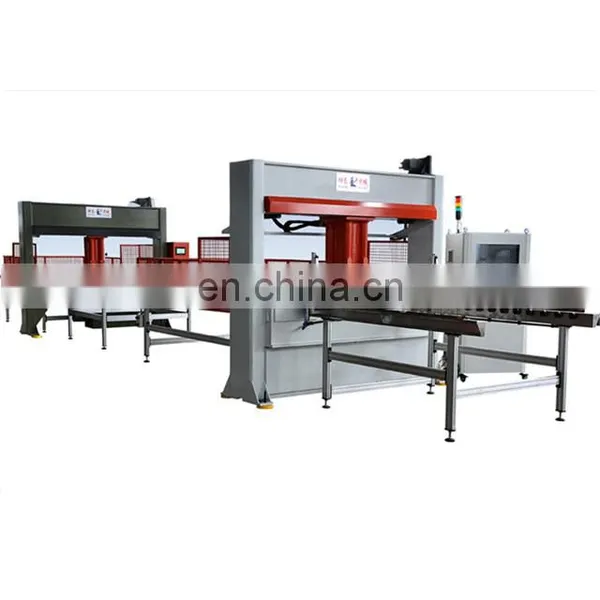

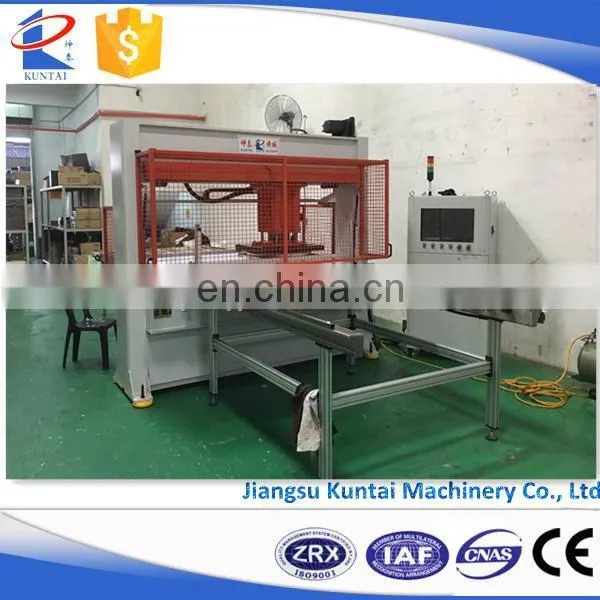

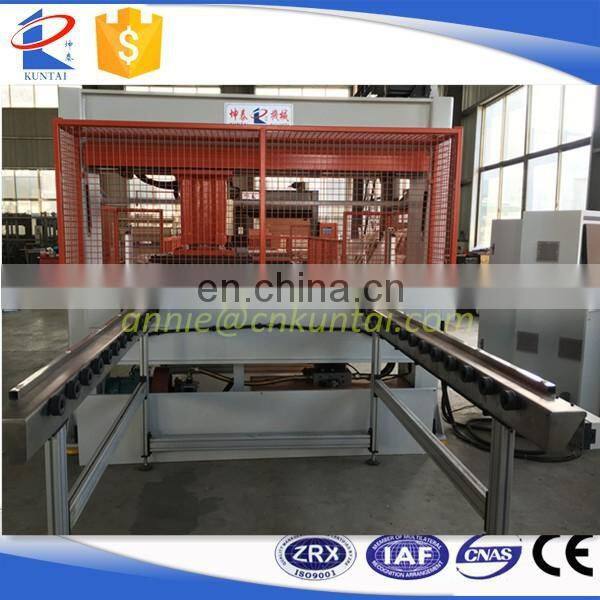

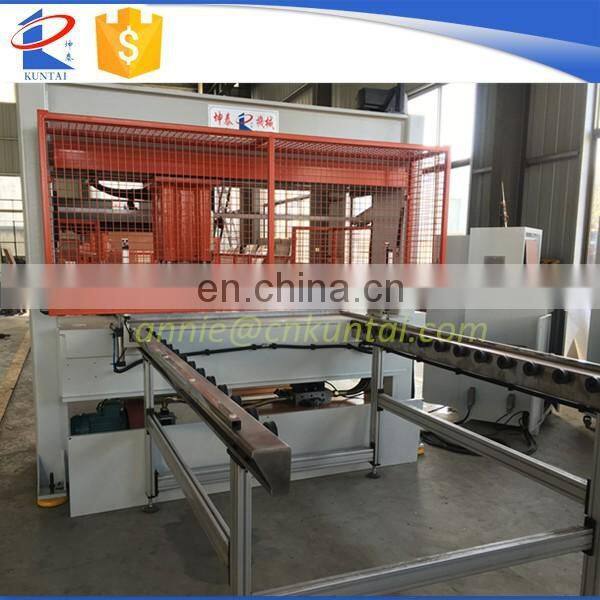

1. KT-C rotating travel head die cutting machine is widely used for continuous cutting of various nonmetal materials, such as PVC film, artificial leather, ball panels, shoes materials and so on.
2. Servo motor is adopted for the rotating travel head so that its movement distance is precisely the same as what is preset. The travel head moves as per the CNC layout the machine works out as per the product size and the materials size.
3. The micro movement feature of the cutting board prolongs its service life.
4. Auto clamp feeding system uses servo motor so that the materials feeding length is precisely the same as what is preset. Several layers of materials can be feed and cut precisely at the same time. Auto sliding feeding board, conveyor belt and other auto feeding systems can be installed as per your needs.
5. Hydraulic oil pump is of Italian brand which produces very low noise.
6. Hydraulic valve is straight way valve, enhancing cutting precision.
7. This machine is highly automatic, providing high productivity.
Range of Application:
This hydraulic press machine is mainly suitable for die cutting single or multiple layers of nonmetal rolled materials by die cutter. It is widly used in many industries, such as:
1. Automotive interior
2. Abrasives, abrasive paper
3. Leather and leathergoods - shoe uppers, wallets, purses, belts
4. Clothing - components for hats, ties, collars, shoulder pads
5. Cork gaskets and mats
6. Foam and sponge
7. Footwear components - shoes, insoles, insole socks, uppers, straps
8. Rubber - gaskets, seals, washers
9. Textiles - sample swatches and pattern books, underwear and outerwear components, hats, ties
10. Toys - soft toys, advertising novelties, mini jig-saw puzzles, etc.
After-sale Service:
1. Our engineers come to customers' factory to install machines.
2. Guarantee time of our machine is 1 year. If there is some damage (not caused by artificial reasons) in guarantee time, we will send spare parts to you for free (including postage).
Option:
Rotating head
CNC control, auto layout
Servo Motor
Imported oil pump and other parts
Roll Holding Gantries
Bed Size
TECHNICAL PARAMETERS (Customizable):
|
Model
|
XCLL3-A 250
|
XCLL3-A 250A
|
XCLL3-A 250B
|
XCLL3-A 500
|
XCLL3-A 500A
|
XCLL3-A 500B
|
|
Max Cutting Force
|
25T
|
25T
|
25T
|
50T
|
50T
|
50T
|
|
Working Table(mm)
|
1800*500
|
2000*500
|
2200*500
|
1800*550
|
2000*550
|
2200*550
|
|
Travel Head Size(mm)
|
500*500
|
500*500
|
500*500
|
550*550
|
550*550
|
550*550
|
|
Adjustable Stroke(mm)
|
5-150
|
5-150
|
5-150
|
5-150
|
5-150
|
5-150
|
|
Motor Power
|
2.2kw
|
2.2kw
|
2.2kw
|
4.0kw
|
4.0kw
|
4.0kw
|
|
Estimated Machine Dimension(mm)
|
2200*620*2000
|
2400*620*2000
|
2600*620*2000
|
2200*620*2000
|
2400*620*2000
|
2800*620*2000
|
|
Estimated G.W
|
2300kg
|
2800kg
|
3500kg
|
3500kg
|
4200kg
|
5000kg
|

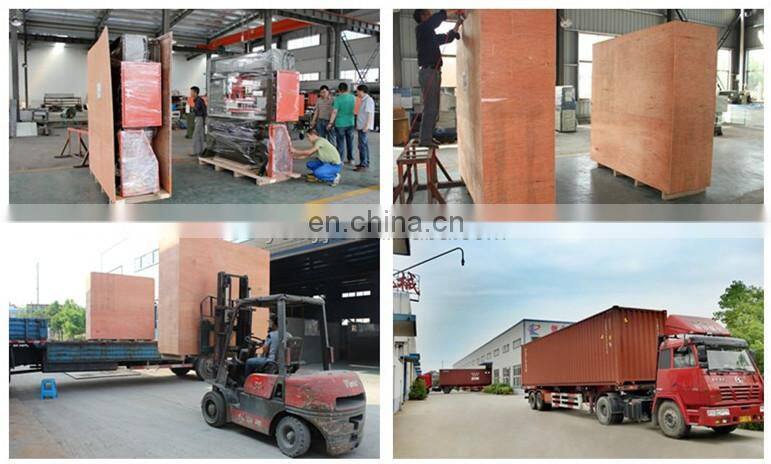

Die Cutting Machine
Inner Package: Protective Film, etc
Outside Package: Plywood Case
- Machines well packed with protective film and loaded in plywood case or export container;
- English version operation manual and technical data;
- One-Year-Period wear parts;
- Tool kit
DIE CUTTING MACHINE
DIE CUTTING MACHINE
Cutting machines of other types or sizes are available on request!
