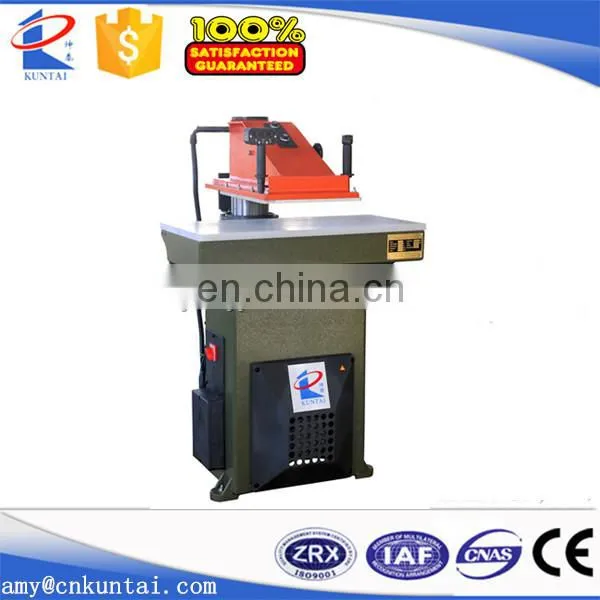

Hydraulic Leather Shoes Cutting Machine
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2016
Annual Export Value:
US$10 Million - US$50 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-

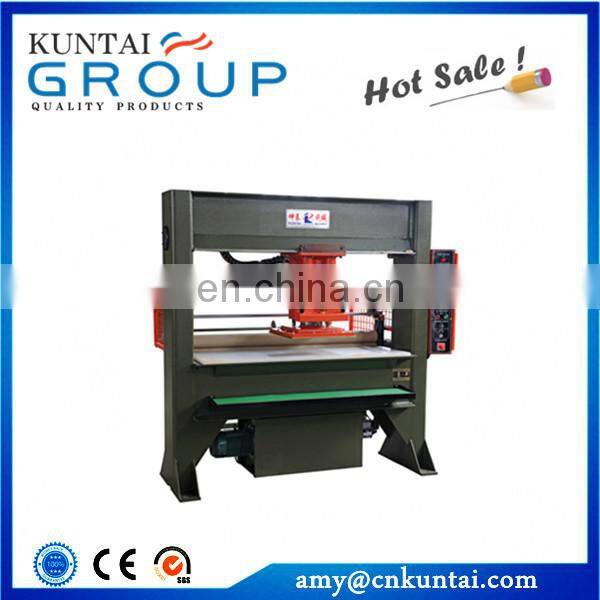

Travel Head Cutting MachineNegotiableMOQ: 1 -
High Efficiency Shoe Sole Cutting MachineNegotiableMOQ: 1
-
Hydraulic Leather Clicker Die Cutting PressNegotiableMOQ: 1
-
Insole Automatic Cutting Machine for Shoes MakingNegotiableMOQ: 1
-
Die Cutting Machine for Gasket, Shoes, Car TrimNegotiableMOQ: 1
Kuntai XCLB3 Shoe Making Machine
Hydraulic Die Cutting Press Manual
Hydraulic Swing Arm Clicking Machine

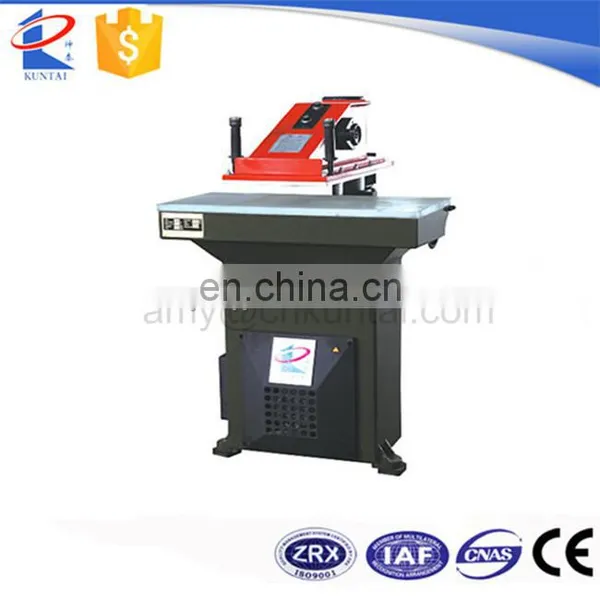

Leather Shoes Cutting Machine
Product Description
USE AND CHARACTERISTICS
- The leather shoes cutting machine is applicable to cutting of various nonmetal materials by cutting die.
- Safe ,two-hand trip operation,the arm can swing freely
- The oil way system specially designed can conveniently adjust the rocker height. No adjustment is needed after the height of die cutter is changed.
- High speed and low energy consumption.
- To meet the need of frequent replacement of die cutters of different sizes, this type of clicking machine that can timely output three kinds of cutting force is available for selection.
- Ductile cast iron body made the machine be used for a very long time and small noise.
- Products of special specifications can be customized.
MAIN TECHNICAL SPECIFICATION
Model |
XCLB2-20 |
XCLB2-27 |
Maximum Cutting Force |
20T |
27T |
Sway Arm Width |
370mm |
480mm |
Work Table Dimension |
900X420mm |
1000X500mm |
Stroke Speed |
0.10m/s |
0.10m/s |
Cutting Travel |
90 mm |
90 mm |
Main Motor Power |
1.1kw |
1.5kw |

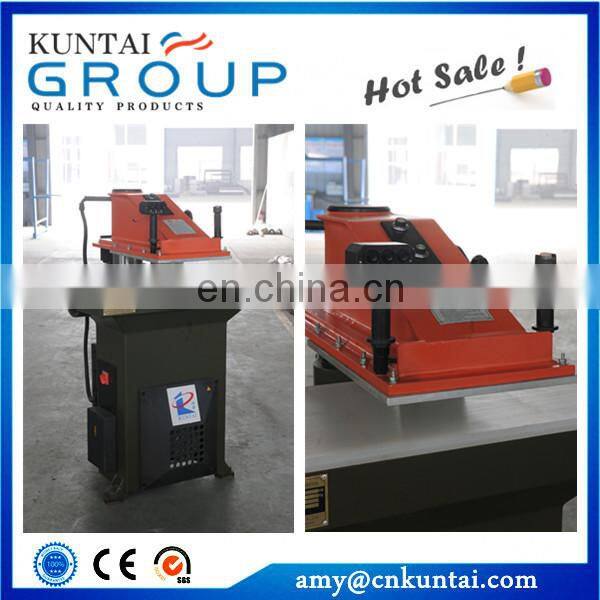

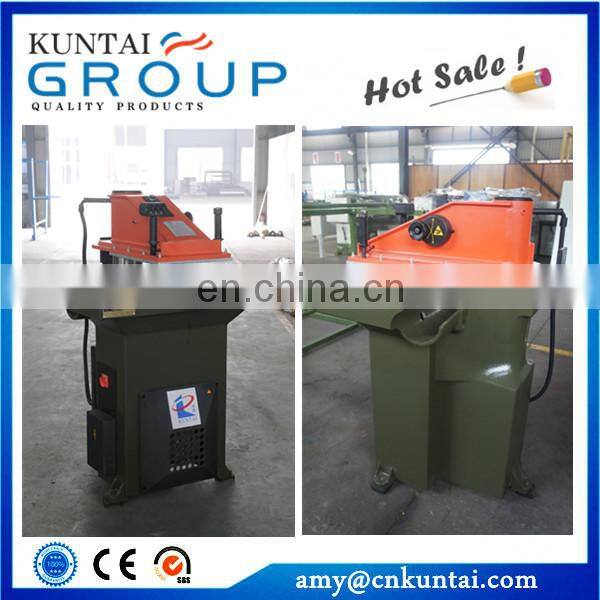

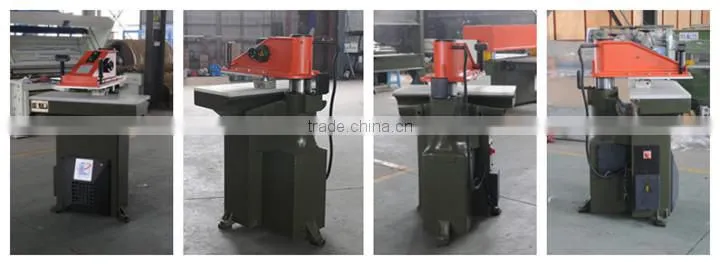

MACHINE DETAILS
MACHINE VIDEO
RELATED PRODUCTS

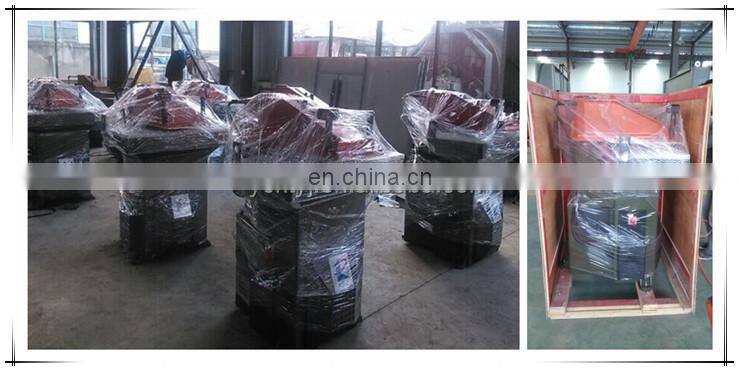

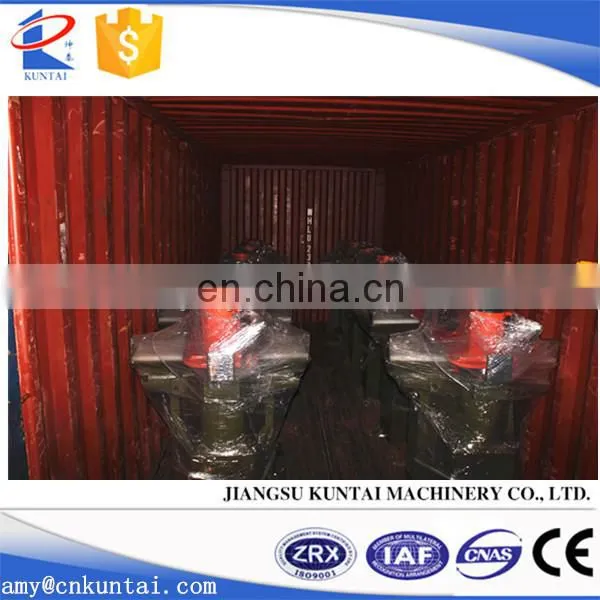

Packaging & Shipping
Hydraulic Clicking Machine:
Inner Package: Protective Film, etc
Outside Package: Plywood Case
- Machines well packed with protective film and loaded in plywood case or export container;
- English version operation manual and technical data;
- One-Year-Period wear parts;
- Tool kit
