An overview of the

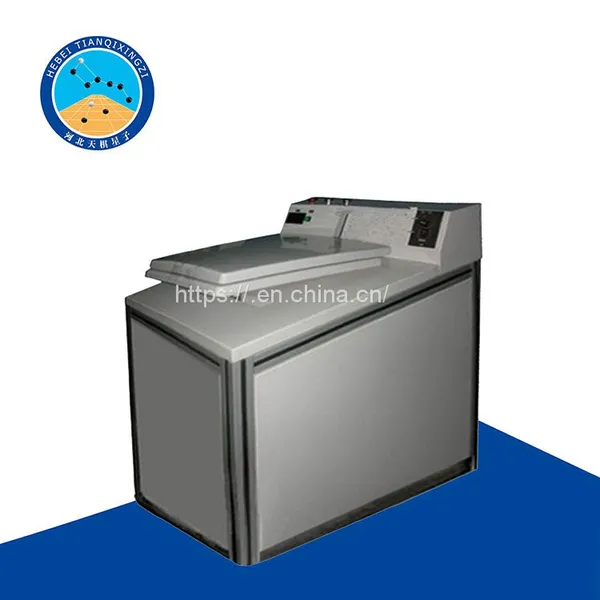

TD6952 - XYJ swing tester (hereinafter referred to as the tester) driven by compressed air cylinder piston to implement load sitting around the circle, to detect implement circle hinge of speed reducer drive opening and closing device for the resistance to fatigue strength and meet the requirements of opening and closing test sample to check whether the cushion of the toilet sit around and cover has a crack, damage and loss. The main machine conforms to the test equipment requirements of GB6952-2005 "Sanitary Ceramics" and JC/T 764-2001 "Plastic seat ring and Cover for toilet seat". The machine has the advantages of simple operation, stable loading, high measurement accuracy, intuitive reading and so on. It is a more advanced test means for studying the strength of materials.
Two, the main technical parameters
1, the maximum test force: 1500N
2, working pressure: 0 ~ 0.70Mpa adjustable
3. The diameter of the rubber rotating device is 76mm
4, cylinder diameter 50mm
5, motor power 250W
6, power supply: AC 50Hz 220V±10%
7, overall size: 700×600×830(mm)
