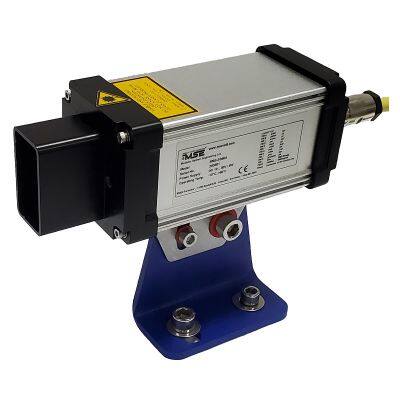

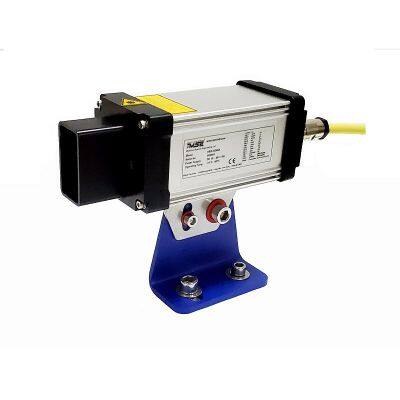

Laser Level Sensor MSE-SD60A

Moduloc System Engineering Ltd. (Yantai)

US$ 3130 - 4000 MOQ: 1 Set

Key Specifications

Brand Name:

MSE

Place of Origin:

China

Model Number:

MSE-SD60A

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Brand Name MSE

Place of Origin China

Model Number MSE-SD60A

MSE-SD60A Laser Level Sensor

the MSE-SD60ALaser Level Sensor is intended for general distance measurements. It provides up to 2000 measurements and measuring values per second.

up to 25 m distance without a reflector. With appropriate reflectors the MSE-SD60A can measure distances of up to 120 m.

the sensor has been optimized for easy system integration and has a shock-proof and impact-resistant IP 65 housing.

Suitable for applications in harsh industrial environments.

Key Features

High measuring rate ( up to 2KHz )

Long measuring range

Housing in IP 65

Industrial interfaces (RS232/422)

Digital and analogue outputs

Easy system integration

Applications

Distance measurement

Fast object detection

Level meter

Collision alarm

Use as proximity switch

2D and 3D scanning application

Technical Data

Measurement Principle		Time of flight.
Measurement Range⁾		0,6 m 25 m on targets with ≥ 20% reflectivity. up to 120 m on targets with high reflectance or on reflectors.
Measurement uncertainty 2⁾		Typical ± 6 cm
Resolution		1 cm
Measuring and Output Rate		up to 2 kHz
Laser for Measurements		Wavelength 905 nm, infrared invisible, Laser Class 1, EN 60825-1:2014
Pilot / Target Laser		Wavelength650 nm, red visible,Laser class 2,, EN 60825-1:2014
Operating Temperature		-10°C + 50°C (Extended temperature range with the cooling or heating, option on demand)
Storage Temperature		- 40°C + 60°C
Power Supply		10 V 30 VDC
Power Consumption		<5 W
Serial Interface		RS422(RS232), Baud rate 115200 bps, ASCII or Binary (other interface as option)
Digital Switching Output		2 x switchers
Analogue Output		4 mA 20 mA, Programmable with distance range
Surrounding Humidity		10 % 90 %, non - condensing
EMC		EN 61000-6-2 EN 55011
Shock / Vibration		DIN ISO 9022-3
Weight ( without cable )		Approx. 900g
Protection Class		IP 65
Dimensions ( L x W x H )		180Mm 65.5mm 65.5mm
1)	Dependent on target reflectance, influence of extraneous light and atmospheric conditions
2)	for single measurement 1 sigma, statistical spread 95%
