Laser Measurement Tools used in Roughing Mill
General Description

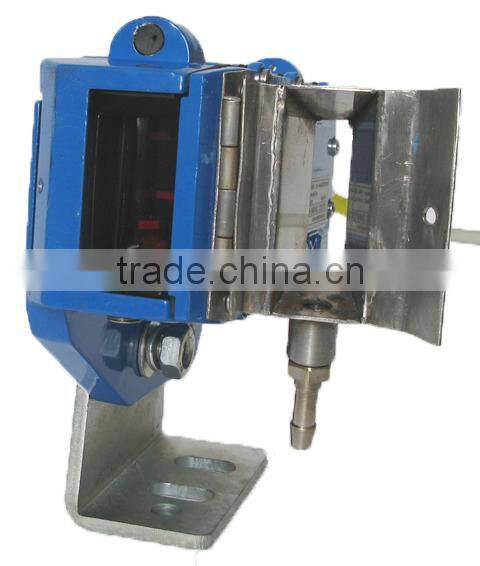

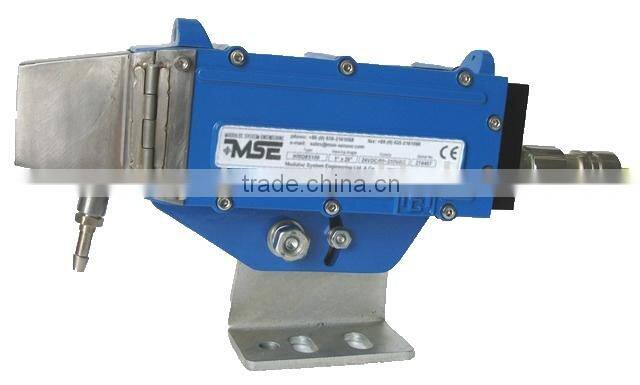

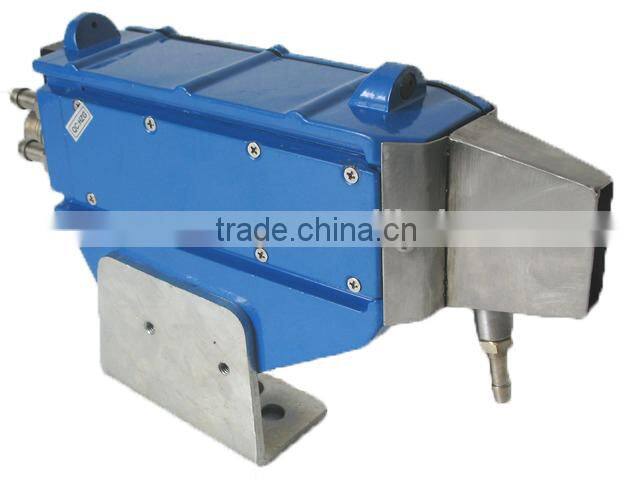

The MSE-HMD85 Hot Metal Detector is a fully digital “All-in–One” Hot Metal Detector uniquely incorporating a bar display showing the % IR input signal relative to the pre-set threshold as well as programmable thresholds and response times via simple programming switch action. This and the universal connection format means it provides the user with one universal Detector that can be used throughout the mill. The MSE-HMD85 Hot Metal Detector is the economical choice. Now there is no need to stock various Detectors for each location. Costly multiple inventory can be replaced by one Detector.
Air & Water Specifications
Air Pressure: 1 cu ft./min at 5 PSI for normal conditions
5 cu ft./min at 15 PSI for severe conditions
Water Pressure: 5 to 10 PSI, 40 PSI Maximum
Water Volume: Regulate between 0.2 - 0.3 liters/min.
Water Temp.:
For Ambient Temperature up to 70°C use ambient water below 20°C
For Ambient Temperature up to 80°C use water chilled up to 10°C
Additional Information
To accommodate variation in bar temperature and background IR,
various precise threshold are programmable via covered switches from 270°C to ensure reliable switching with reference to both the displayed background and product IR signal.
Furthermore, response time is programmable from 1 ms to 250ms to accommodate black spots on the hot material.
General Specification
|
Lens F.O.V. (Filed of View) |
0.5° x 25° Rectangular Slit |
Sensing Element |
InGaAs Sensor |
Power Indication |
Blue LED |
Function Indication |
Top & Bottom Yellow LED's |
Remote Self-Check |
Middle Yellow LED's |
|
Min/Max I.R. Threshold Settings |
Adjustable from 270°C via Programming Switch |
Response Time |
1 ms to 250 ms, via Programming Switch |
Supply Voltage |
Standard: 80 - 240 VAC, 50/60 or 24 VDC ± 10% |
Power Consumption |
5 W |
Operating Temperature |
1. -20°C to +50°C without Air Cooling 4. up to 80°C with Heat Shield |
