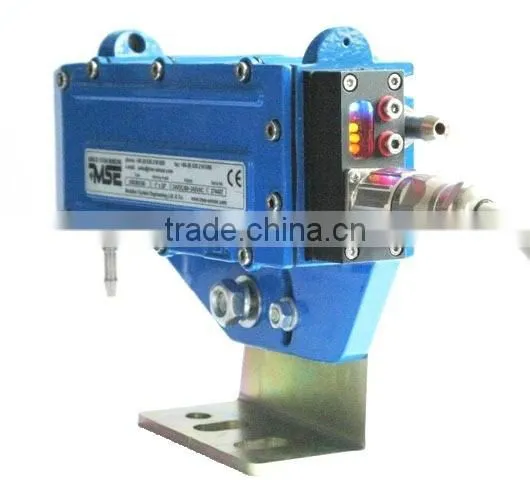

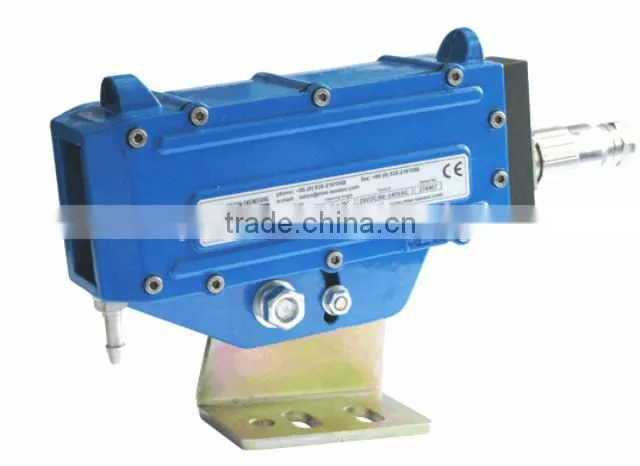

MSE-HMD85 DEVICE DETECT HOT METAL
USED IN PLATE MILL
1. General Description
This MSE-HMD85 Hot Metal Detector is especially suitable where ambient temperatures are subject to large changes. In standard format, a large air cooled chamber vents via deflector in front of the lens to allow the use of non-instrument air and provides air purging. Alternatively, an optional sealed loop water coolant radiator accommodates tap pressure and a separate air purge inlet may be provided.
2. Characteristic
• Fully digital “All-in-One” Design
• LED Bar Display of % IR input signal
• Programmable temperature threshold from 270°C
• Operates from 80-240VAC or 24VDC Supply
• Programmable response times from 1ms to 250ms
• Control Relay and Fast Reed Relay Outputs
• NPN and PNP Transistor Outputs
• Remote Self-Check Facility
• Unique combined air purge and coolant facility
• Optional Water Coolant Radiator & Separate Air Purge
3. Housing Specifications
Housing: Aluminum AL6, Oven baked blue paint
Housing Rating: IEC IP66, DIN, 89011
Weight w/o Cable: 1.9 Kg (4.2lb)

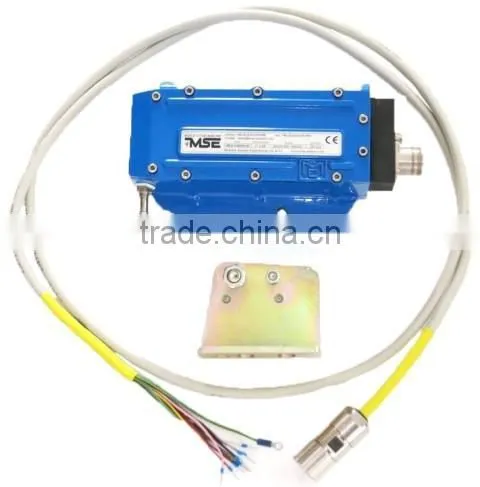

Connector: IP66 with connected Plug/Socket
Cable Length: 1.5 M Standard up to 15 M available
Cooling: Air Cooled & Air Purged or Water Cooled & Air Purged
4. General Specification
|
Lens F.O.V. (Filed of View) |
0.5° x 25° Rectangular Slit |
|
Min/Max I.R. Threshold Settings |
Adjustable from 270°C via Programming Switch |
Response Time |
1 ms to 250 ms, via Programming Switch |
Supply Voltage |
Standard: 80 - 240 VAC, 50/60 or 24 VDC ± 10% |
Power Consumption |
5 W |
Operating Temperature |
1. -20°C to +50°C without Air Cooling 4. up to 80°C with Heat Shield |
Output (#1) |
Cradle Relay Output, SPNO, 240 VAC, 7A with 20 ms Response Time. |
Output (#2) |
Reed Relay Output, (OPTION) SPNO, 240 VAC, 0.5A with 2 ms Response Time. |
Output (#3 & #4) |
NPN and PNP Outputs, N.O., 500 mA, 45 VDC, 2A Peak. |
