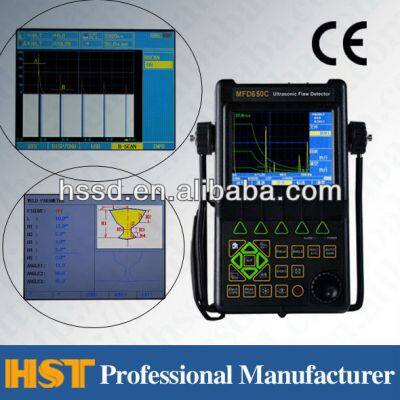

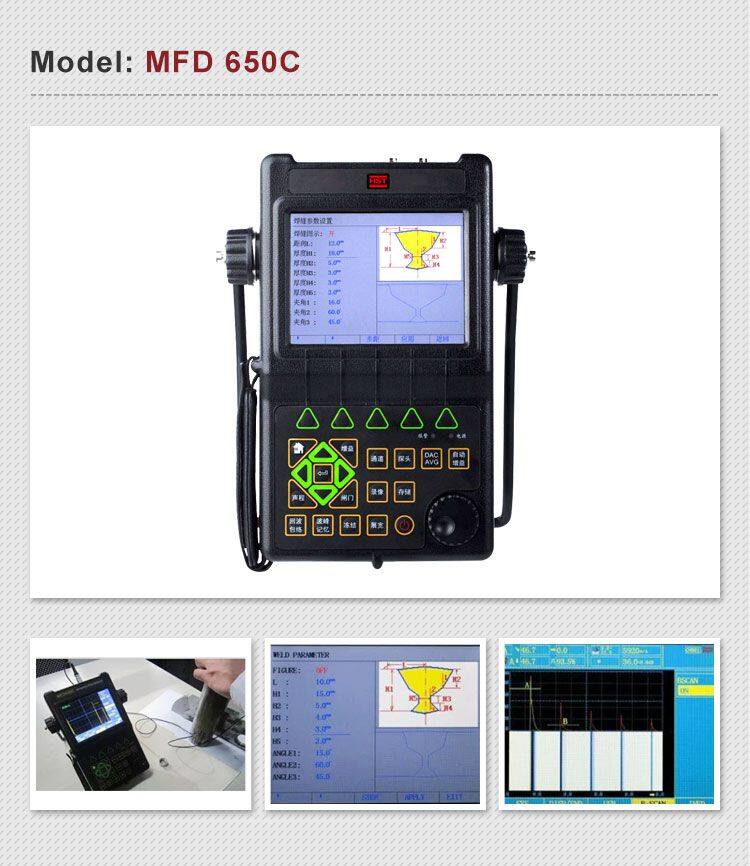

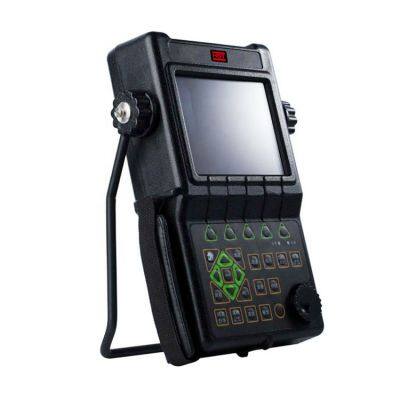

MFD650C Portable Ultrasonic Flaw Detector
KEY FEATURES

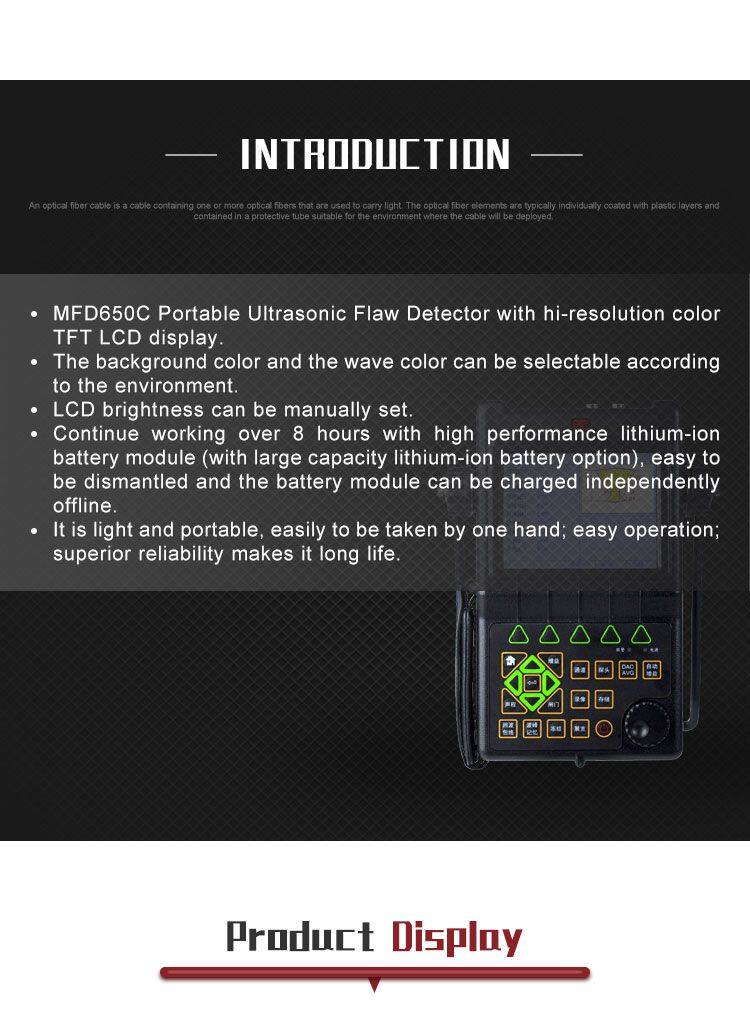

MFD650C Portable Ultrasonic Flaw Detector with hi-resolution color TFT LCD display.

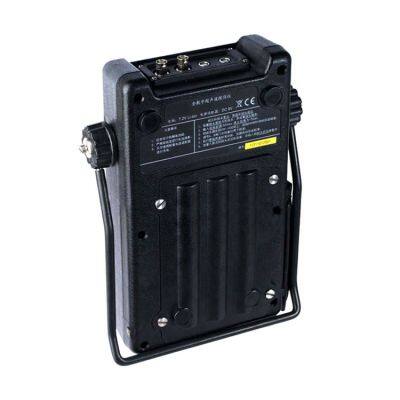

The background color and the wave color can be selectable according to the environment. LCD brightness can be manually set. Continue working over 8 hours with high performance lithium-ion battery module (with large capacity lithium-ion battery option), easy to be dismantled and the battery module can be charged independently offline. It is light and portable, easily to be taken by one hand; easy operation; superior reliability makes it long life.
RANGE
0~ 9999mm (at steel velocity); range selectable in fixed steps or continuously variable.
FUNCTIONS
Peak Hold
Automatically searching the peak wave inside the gate and hold it on the display.
Equivalent diameter calculation: find out the peak echo and calculate its equivalent diameter.
Continuous Record: Record the display continuously and save it to the memory inside the instrument.
Defect Localization: Localize the defect position, including the distance, the depth and its plane projection distance.
Defect Sizing: calculate the defect size
Defect Evaluation: Evaluate the defect by echo envelope.
DAC: Distance Amplitude Correction
AVG: Distance Gain Size curve function
Crack measure: Measure and calculate the crack depth
B-SCAN: Display the cross-section of the test block.
SPECIFICATIONS
Channels: 100 channels
Range: (0 ~ 9999) mm
Bandwidth: (0.2 ~ 20) MHz
Material Velocity: (300 ~ 15000) m / s
Dynamic Range: ≥ 36dB
Vertical linear error: ≤ 2.5%
Horizontal linear error: ≤ 0.1%
Resolution:> 40dB (5P14)
Sensitivity Leavings: 65dB (flat-bottomed deep hole 200mm 2)
