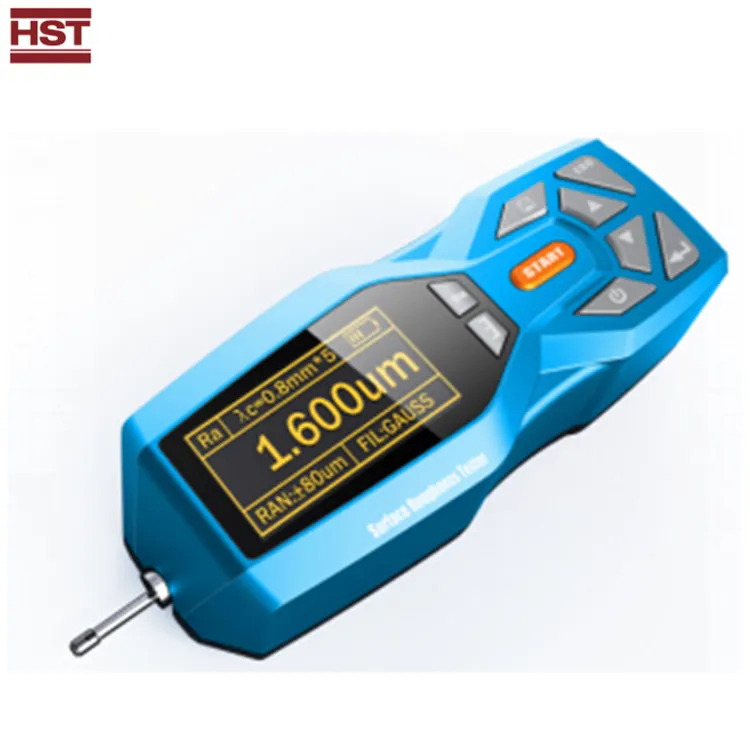

TR200 Surface Roughness Tester
TECHNICAL DATA
|
14 Testing Parameters |
Ra, Rz=Ry(JIS), Rq, Rt=Rmax, Rp, Rv, R3z, R3y, RzJIS, Rsk, Rku, Rsm, Rmr, Rx, |
|
Measuring Range |
Ra: 0.005~16.000μm Rz: 0.02~160.00μm |
|
Sample Length |
0.25, 0.80, 2.50mm |
|
Evaluation Length |
(1~5)L |
|
Maximum Drive Stroke |
17.5mm/0.7inch |
|
Indication Accuracy |
0.001μm |
|
Indication Error |
±(7~10)% |
|
Variability |
<6% |
|
Data Storage |
100 groups |
|
Power |
Rechargeable Li-battery |
|
Relative Humidity |
<90% |
|
Working Temperature |
-20°C~40°C |
|
Size |
158x63.5x46mm |
|
Weight of Host |
0.4kg |
MAIN FEATURE
*Stylish design with plastic shell, inspired by “TRANSFORMERS”;
*Visual waveform display;
*Electromechanical integration design, small volume, light weight, easy to use;
*Using DSP chip to control and data processing, high speed, low power consumption;
*128 x 64 OLED dot matrix display, digital / graphic display; highlight no perspective;
*Intuitive and rich display information, can display all the parameters and graphics;
*Compatible with ISO, DIN, ANSI, JIS national standards;
*Residual quantity icon, prompting the user to charge;
*Continuous working time: more than 20 hours;
*Real-time clock settings and display, convenient data recording and storage;
*With automatic dormancy, automatic shutdown and power saving function;
*Multi-info Display: measurement information, menu prompt, fault and power switch information indicated.
*With PC software, can be connected to a computer and printer;
*Optional different sensor, measuring platform, mini printer, extension rod and other accessories;
*Support OEM Service, high price performance.

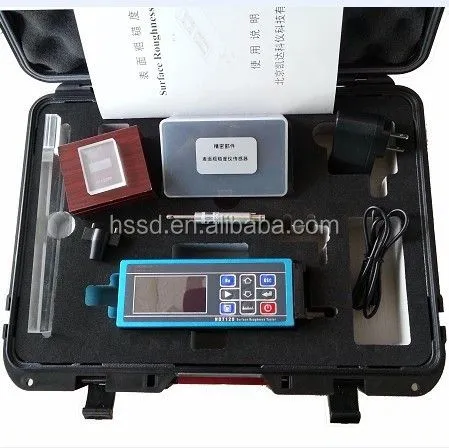

STANDARD DELIVERY
|
ITEM |
QTY |
|
KR220 Host |
1 PC |
|
Standard Sensor KS100 |
1 PC |
|
Standard Calibration Block |
1 PC |
|
Bracket for Calibration Block |
1 PC |
|
Adjustable Support |
1 PC |
|
Power Charger |
1 PC |
|
USB Cable |
1 PC |
|
PC Software |
1 PC |
|
User manual |
1 PC |
|
Instrument case |
1 PC |
|
Warranty |
2 Years |
