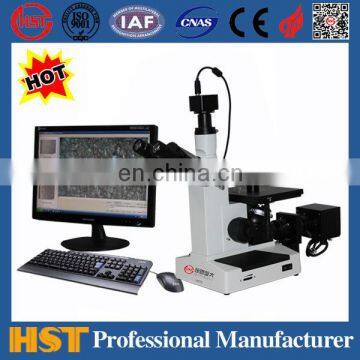

4XCE Metallographic Microscope/Trinocular Microscope With CCD Camera

Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)

Key Specifications

Business Type:

Manufacturer

Year Established:

2009

Factory Size:

1,000-3,000 square meters

Hst Group Co.,ltd.

1Yr

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

metallographic microscope

Product Description

Jinan Hensgrand Instrument Co., Ltd has the self-management import and export right.

All of our testing machines through the EU CE Certificate.

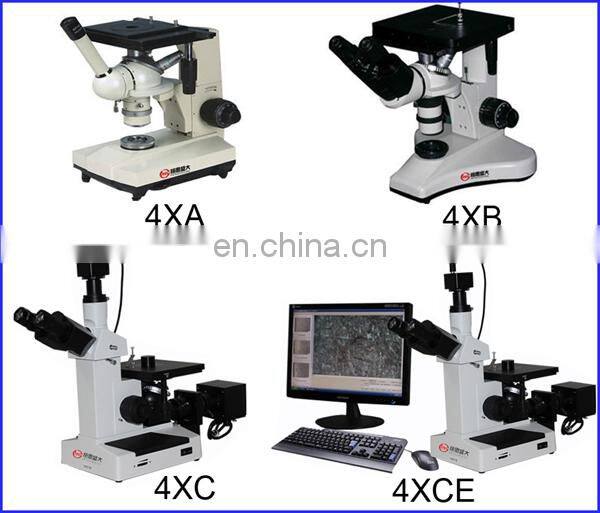

4XCE Metallographic Microscope/Trinocular Microscope With CCD Camera

1.Function and Application:

This metallographic microscope is mainly used for metal identification and analysis of the

internal structure of organizations.

It is the important device which can be used to study the metallographic of metal, and it is

also the key instrument to verify the product quality in industrial application.

This microscope can be equipped with photographic device which can take metallographic

picture to carry out artificial contrast analysis, image editing,output, storage, management

and other functions.

2.Main Technical Parameters:

Three Eyepiece Tube	Tilting Angle: 30° Adjustable Range: 55-75mm
Eyepiece	Wide View Eyepiece 10X (16mm)
Objective Lens	Flat Fielding Achromatic Objective Lens 10X, 25X, 40X, 100X (oil)
Loading Table	150 x 200mm Moving Range: Vertical 15mm, Horizontal 15mm
Eyepiece (Optional)	12.5X, 16X, 20X, 10X Flat Fielding Graduation Eyepiece (Grid Value 0.1mm)
Objective Lens (Optional)	60X, 80X.
Photographic Device (Optional)	1.Image adapting lens, high resolution color CCD camera static and dynamic capturing card, image analysis software, EPSON color jet printer. 2. Digital camera, specific adapting lens.
