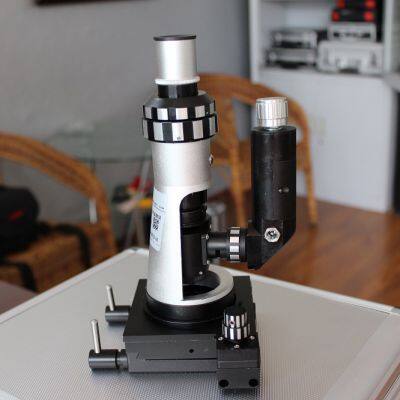

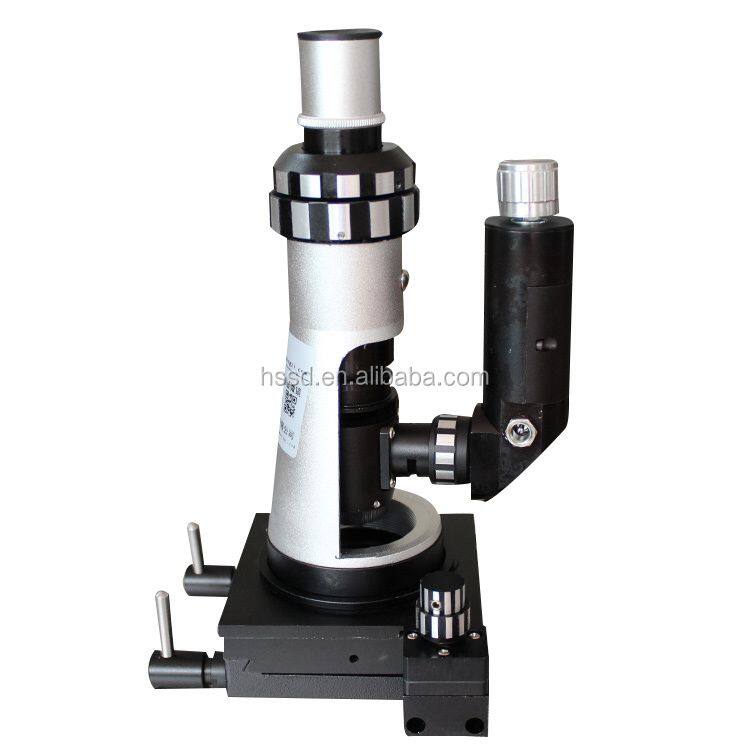

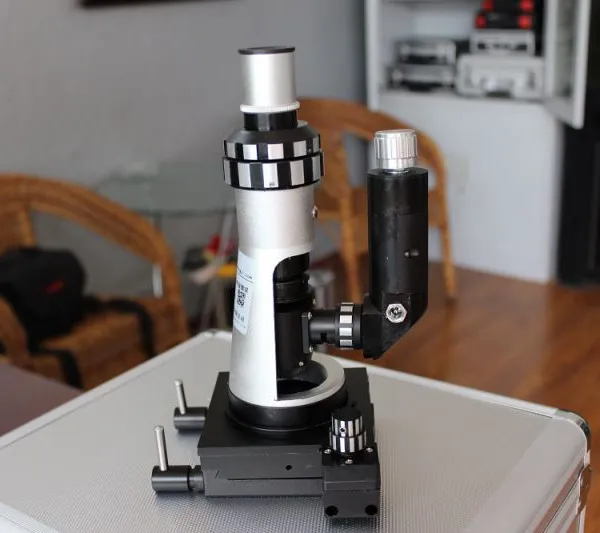

BJ-X 500X Portable handheld Metallurgical Microscope
BX-J Portable Metallurgical Microscopes has vertical illumination light source.
Applicable to metallographic inspection of various work pieces which is large or unable to make sample.
No need to cut sampling and can directly grinding and polishing, in order to ensure the integrity of the
work piece.
This machine can identify different metal and alloy organization structure.
Widely used in Casting quality appraisal, raw material inspection or organization analysis after handling
the materials by factory, laboratory.
2.1. Eyepiece
Category |
Magnification |
View Diameter (mm) |
Objective Eyepiece |
10X |
18 |
2.2. Objective
Achromatic Objective Lens |
Numerical Aperture(NA) |
Working Distance(mm) |
10X |
0.25 |
7.3 |
40X |
0.65 |
0.5 |
2.3. Total Magnification: 100X, 500X
2.4. Mechanical Length: 160 mm
2.5. Focussing Distance: 36 mm
2.6. Adjustable Light Power Supply: 6V, 2.1W
3.Optional accessories
3.1. Eyepiece: 20X
3.2. Objective: 16X, 20X
3.3. Digital Camera
