4XC With CCD/ Software / Camera Trinocular Inverted Metallurgical Microscope
- T/T Credit Card
You May Like
-
4XC Trinocular Inverted Metallurgical Microscope Camera
-
4XC Steel Alloy Trinocular Invert Metallurgical Metallographic Microscope With Scanning Electronic Eyepiece
-
Digital 1080P Full HD Microscope
-
BJ-X 500X Portable Handheld Metallurgical Microscope
-
MoPao 2/ 2S Automatic Grinding and Polishing Metallurgical Machines
-
Metallographic Sample Polishing Machine/Silver/Vibratory/Gem/Concrete/Stainless Steel Grinding Polishing Machine Price
Product Description

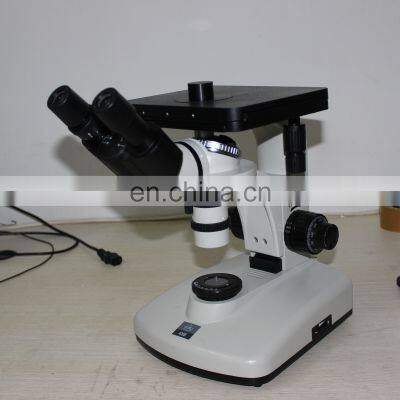

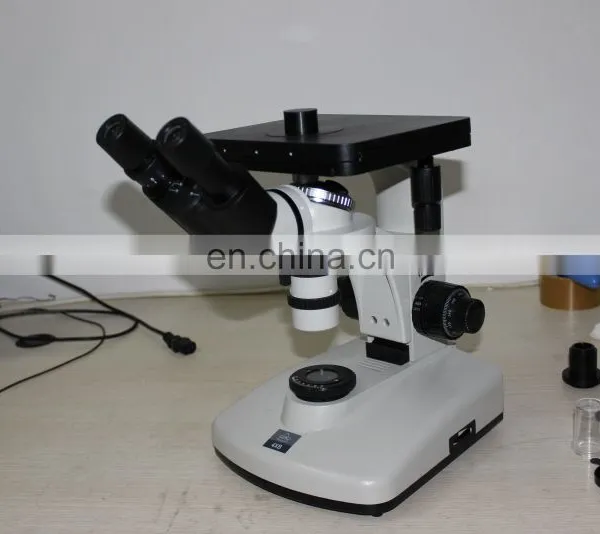

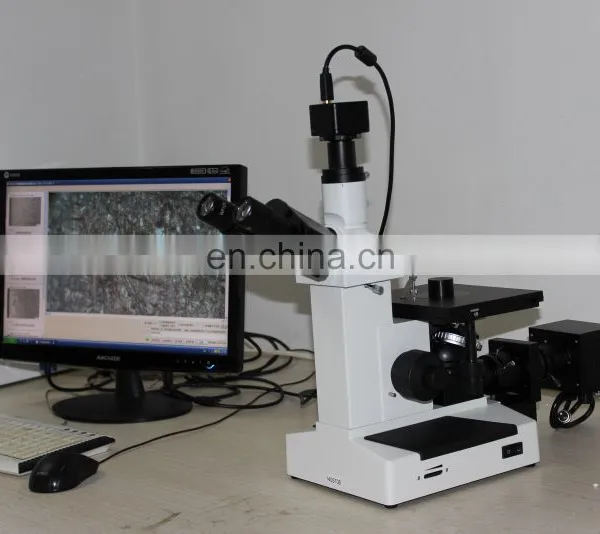

4XC with CCD/ Software / Camera Trinocular Inverted Metallurgical Microscope
Application:
The instrument can used for identification and analysis structures tissue of metal surface, it is important tool for metal physics examining metallurgical structures. It is a crux equipment of appraising the quality for iron and steel, boiler, mine, machine tool tool, automobile, shipping, bearing, diesel engine,farm implement, industry etc.

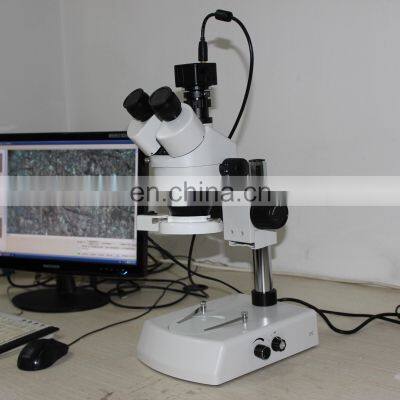

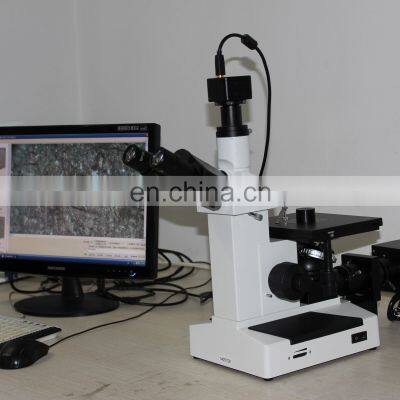

The instrument can be equipped photo attachment and CCD video camera with photograph metalurgical structures. Metal pictures can be taken and the analyzed, measured, edited, output, savedand managed.
Specification:
1.Achromatic Objective:
|
Magnification |
10X |
20X |
40X |
100X(Oil) |
|
Numerical |
0.25N.A |
0.40N.A |
0.65N.A |
1.25N.A |
|
Working distance |
8.9mm |
0.76mm |
0.69mm |
0.44 mm |
2. Plan Eyepiece:
10X (Diameter field Ø 22mm)
12.5X (Diameter field Ø 15mm) (pick out part)
3. Dividing Eyepiece:
10X (Diameter field Ø20mm) (0.1mm/div.)
4. Moving stage:
Working stage size: 200mm×152mm
Moving range: 15mm×15mm
5. Coarse and Fine focusing adjusting device:
Coaxial limited position, Fine focusing scale value: 0.002mm
6. Magnification:
|
Objective Eyepiece |
10X |
20X |
40X |
100X |
|
10X |
100X |
200X |
400X |
1000X |
|
12.5X |
125X |
250X |
600X |
1250X |
7. Photo Magnification
|
Objective Eyepiece |
10X |
20X |
40X |
100X |
|
4X |
40X |
80X |
160X |
400X |
|
4X And additional 2.5X-10X |
100X |
200X |
400X |
1000X |
