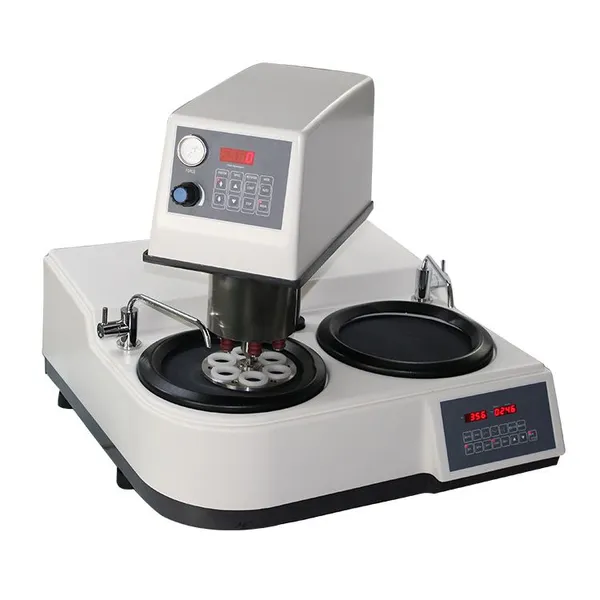

MoPao 2/ 2S Automatic grinding and polishing metallurgical machines
Feature:
l MoPao 2and 2S model automatic grinding /polishing machine adopt international advanced manufacturing technology in accordance with international standards.
l This series adopts the advanced micrometer control system ,which makes grinding disc and grinding head speed stepless adjustable ,sample preparation pressure ,time setting .Operation can only change grinding disc and sandpaper fabic ,showing more wide applicability.
l The machine has the following features such as optional grinding disc rotation ,quick-change grinding disc ,vertical preparation fixture pneumatic single point loading .
l This machine has cooling device and abrasive souring nozzle ,equipped with beautiful and pratical ABS sheel ,stainless steel standard parts, and it is never rust.
Specifiction
Model |
MoPao 2 |
MoPao 2S |
grinding disc quality |
1 |
2 |
grinding disc diameter |
ø250mm/300mm |
ø250mm |
grinding disc speed |
50-1000rpm&150/300rpm |
|
grinding disc rotation |
Clockwise or anticlockwise |
|
grinding head speed |
5-100RPM |
|
loading range |
5-60N |
5-60N |
sample preparation time |
0-9999S |
0-9999S |
sample diameter |
ø30MM(22MM OR 45MM) |
ø30MM(22MM OR 45MM) |
lighting |
LED |
LED |
gas source pressure |
0.6--0.8MPA |
0.6-0.8MPA |
input voltage |
220V/50HZ |
220V/50HZ |
input power |
1kw |
1.3kw |
dimension |
790*566*677mm |
730*710*635mm |
net weight |
93kg |
98kg |
We supply full range services:
Pre-sale, we provide comprehensive advisory services, tailored for different industries to meet customers' special needs.
After-sale, we could supply door to door installation and training services according to customer requirements .
During the use process, if there is any problem, your could reach our technical engineers in time by e-mail, remote video, telephone and other possible ways.
The machine parts is free of charge during the warranty period ,and machines lifetime maintenance.
