Introduction:

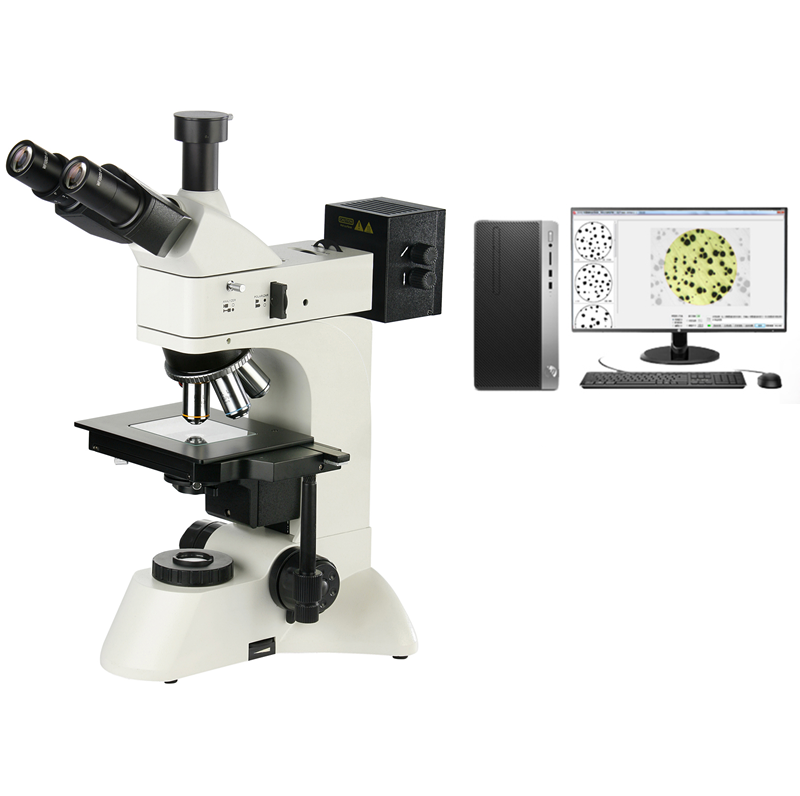

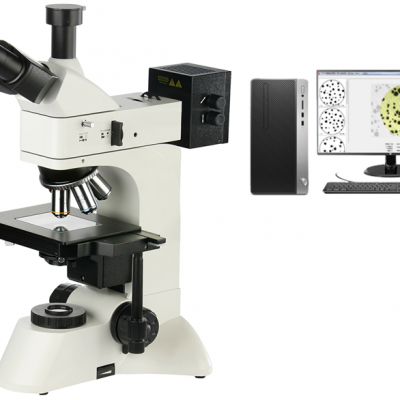

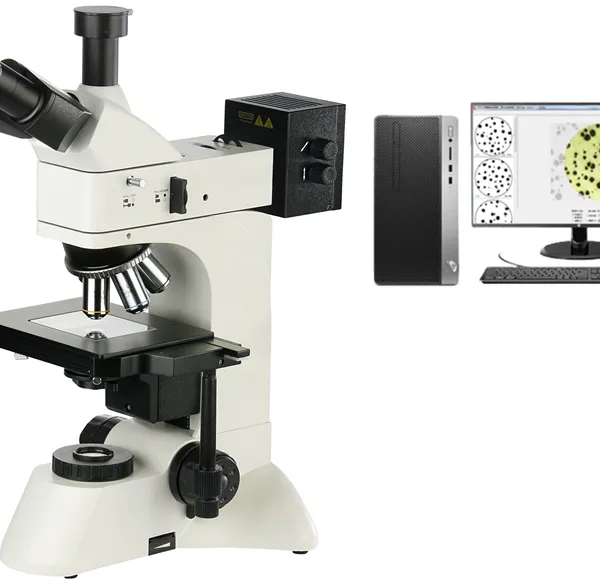

The HL8000W computerized metallographic microscope is a trinocular transflective upright metallographic microscope, which is suitable for microscopic observation of opaque or transparent objects. Adopting excellent design concept of infinity optical system and module function, it can provide excellent optical performance and product system upgrade, realize the functions of simultaneous transmission and reflection, independent illumination, polarized observation, etc. It is an ideal instrument for research in biology, metallurgy, mineralogy, precision engineering, and electronics.
Field Techniques: Clear and Polarized in Transmitted and Reflected Light
|
Mechanical stage Double-layer mechanical stage, size: 210 * 140mm; moving range 63 * 50mm, visual design concept, users are more convenient and comfortable when operating the stage.
|
|
|
Epi-illumination system The halogen lamp (adjustable brightness) can provide clear and clear microscopic observation images not only for the normal bright field observation method, but also for the polarized light and dark field observation methods. The built-in field diaphragm and aperture diaphragm can effectively control the field of view, adjust the contrast of the field of view, and the center of the field diaphragm can be adjusted.
|
|
|
Transmission illumination system Built-in halogen lamp lighting device: Halogen Lamp 12V/50W with adjustable brightness, can provide clear and clear microscopic observation images. The field diaphragm is built into the concentrator, and the Abbe condenser N.A.1.25 is adjustable up and down.
|
|
|
Component |
Specification |
|
Optical system |
Infinity chromatic aberration correction optical system |
|
Observation tube |
Trinocular, tilt 30, (built-in polarizer, switchable) |
|
Eyepiece |
Large field of view WF10X / 22mm |
|
Standard Objective |
PL L5X / 0.12 WD 10 mm |
|
PL L10X / 0.25 WD 5mm |
|
|
PL L20X / 0.40 WD 1.3 mm |
|
|
PL L50X / 0.70 WD 0.7 mm |
|
|
PL L100X / 0.85 WD2.0 mm |
|
|
converter |
Five holes (inward ball positioning) |
|
Focusing mechanism |
Coarse and fine-motion coaxial focusing, fine-motion grid value: 2μm, coarse-motion tension is adjustable, with locking and limit device |
|
Stage |
Double-layer mechanical mobile stage, size: 210mmX140mm, moving range: 63 * 50mm |
|
Epi-illumination system |
12V/50W halogen lamp with adjustable brightness, equipped with yellow, blue and green color filters and frosted glass |
|
|
Built-in field diaphragm, aperture diaphragm, color filter conversion device, push-pull analyzer and polarizer |
|
Transmission illumination system |
Abbe condenser NA.1.25 can be moved up and down |
|
|
Built-in field diaphragm in collector lens, 6V30W halogen lamp, adjustable brightness |
|
Metallographic analysis system |
FMIA2020 genuine metallographic analysis software, Sony chip 3 million camera device, 0.65X adapter mirror interface, micrometer. |
|
computer |
HP Business Machine |
|
Power |
220V |
NOTE:
We are manufacturer not trade company.
High quality and low price ;Profesional technology and high quality
The comprehensive technical guidance and after-sales service
Send Inquiry to This Supplier
You May Also Like
-

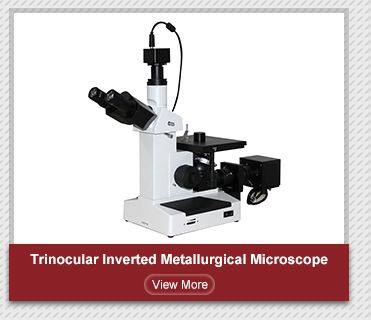

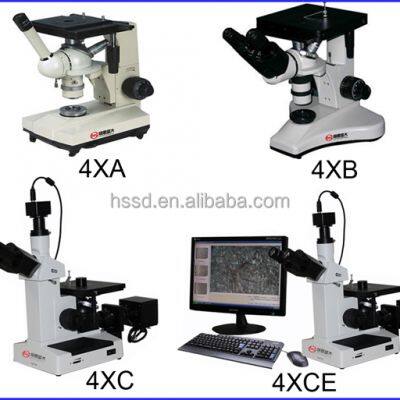

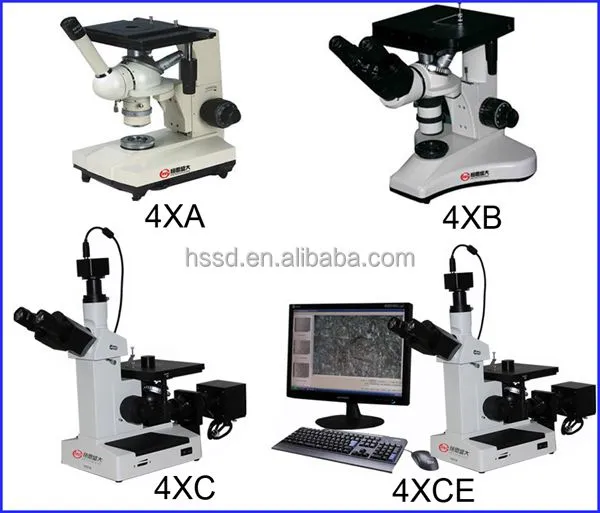

4XC Trinocular Inverted Metallurgical Microscope 500xNegotiableMOQ: 1
-
