YES-2000 1000kn 2000 3000kn YES Digital Concrete Compressive Compression Testing Machine Price
YES-1000/2000/3000 YES-1000/2000/3000D
Contact: Alice Zhang Skype: hssdtest What's APP / TEL: +86-15098778967
1. Application
Digital displayConcrete Compressive Compression Testing Machine Price price mainly used for
brick, cement, concrete, construction material and othermaterial compression resist testing. Widely used in metallurgy, building materials, space flight and aviation, colleges and universities, R&D institution lines. The test operation and data processing meets standard requirements.
2. Product description:

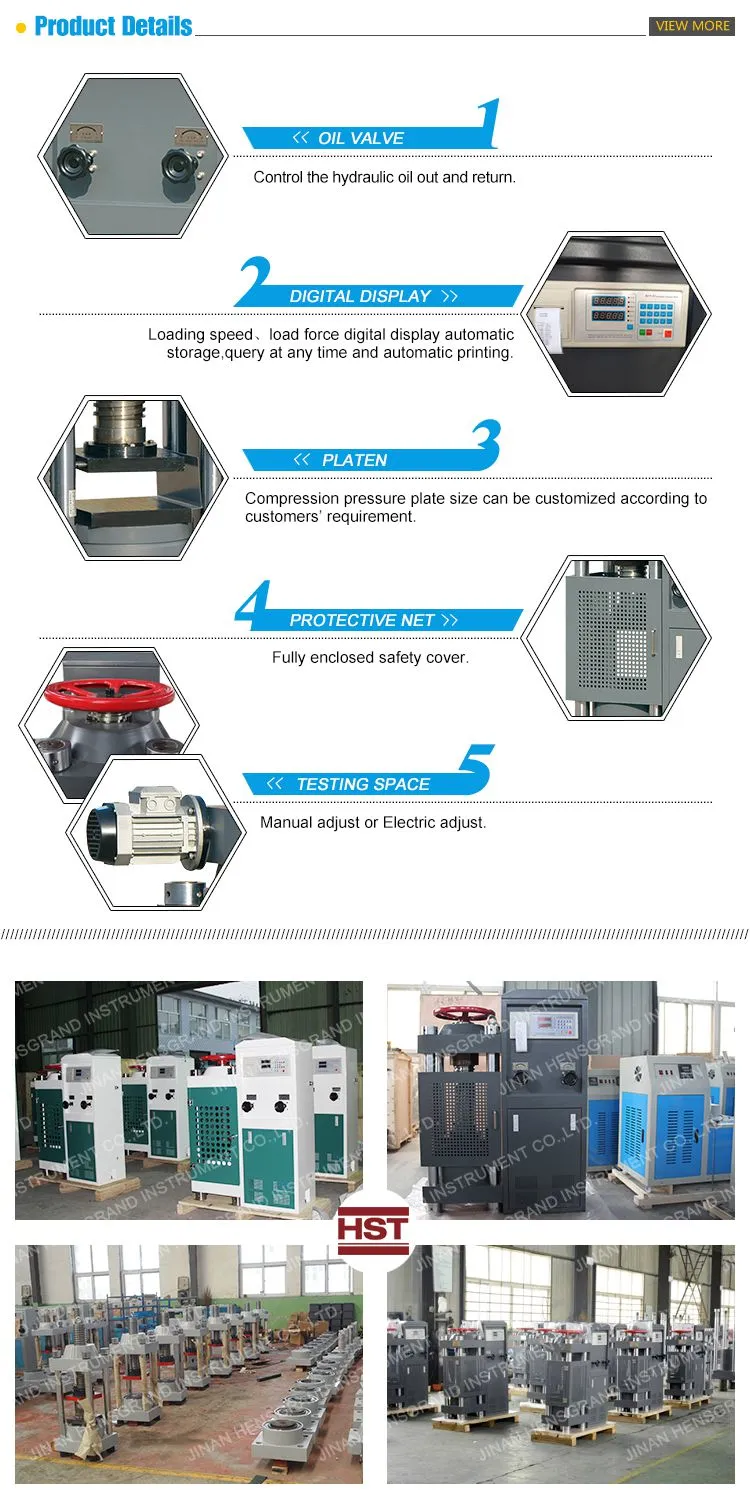

* Structure:mainly composed by main unit, oil source and measuring control system.
*Space adjusting way: Electric ball screw adjusting to realize the compression space adjusting
* Measuring control system:The machine adopts hydraulic loading, the electronic testing load. With digital display load, loading rate, keeping maximum load, overload protection and outage data keeping and other.
* Safety protection device:When the test foce exceed the 3% of the maximum test force ,overload protection, the oil pump motor stop.
3. Main Specifications Compression testing machine price
|
Model |
YES-2000D |
YES-3000D |
|
|
Max test force |
2000kN |
3000kN |
|
|
Test space adjusting way |
Electric ball screw adjusting |
||
|
Control way |
Manual control loading process |
||
|
Accuracy class |
1 class |
||
|
Test force range |
4%~100%F·S |
||
|
Test value accuracy |
Better than ±1% |
||
|
Oil cylinder stroke |
50mm |
||
|
Max distance between upper and lower plate |
320mm |
340 mm |
|
|
Max distance between two columns |
280mm |
||
|
Upper and lower pressure plate |
250×250mm |
270*270mm |
|
|
Main unit dimension |
1000×500×1450mm |
||
|
Power supply |
2.0Kw/AC380V |
||
|
Weight |
1000Kg |
1200kg |
|
YES-2000 YAW-2000D YES-300 YAW-300D
