200/300Ton asphalt-concrete mixtures hydraulic compression press strength testing machine
Contact: sunny Whatsapp/Line/Phone: +8615866777590 Skype:jessica-hssd
1. Application
Digital display concrete compression testing machine mainly used for concrete and other material
compression resist testing.
Widely used in metallurgy, building materials, space flight and aviation, colleges and universities, R&D institution lines. The test operation and data processing meets standard requirements.
2. Main Specifications
|
Model |
YES-2000D |
YES-3000D |
|
Max. load |
2000kN |
3000kN |
|
Class |
1 class |
1 class |
|
Testing space regulating way |
Electric ball screw adjust |
|
|
Control way |
Manual control load way |
|
|
Oil source control cabinet structure form |
One-piece bench oil source control cabinet |
|
|
Range of test force |
4% ~100%FS |
|
|
Indicating value accuracy |
±1% |
|
|
Piston route |
50mm |
50mm |
|
Max piston speed |
20mm/min |
20mm/min |
|
Test width |
330mm |
340mm |
|
Compression space |
320mm |
340mm |
|
Upper Pressure plate size |
240*240mm(Can be customized) |
|
|
Lower pressure plate size |
250*300mm(Can be customized) |
|
|
Display |
LCD |
|
|
Power supply |
2.1Kw/AC380V |
|

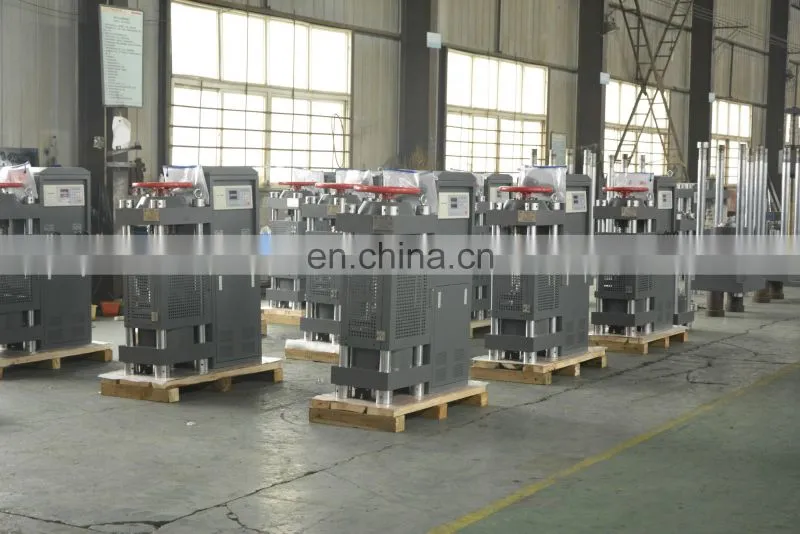

Machines in store show:
YES-300 Digital Display Compression Testing Machine YES-1000 Digital Display Compression Testing Machine
Welcome to contact Sunny for more informations: Whatsapp/Line/Phone: +8615866777590 Skype:jessica-hssd Email: sunny at
