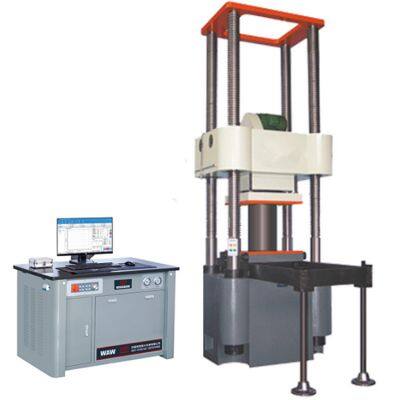

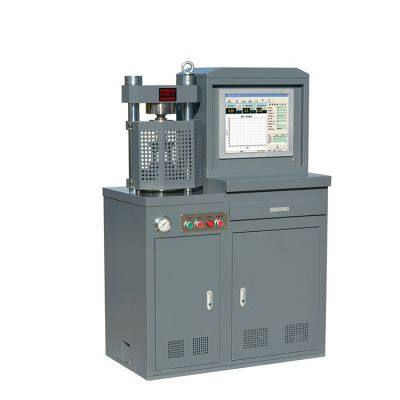

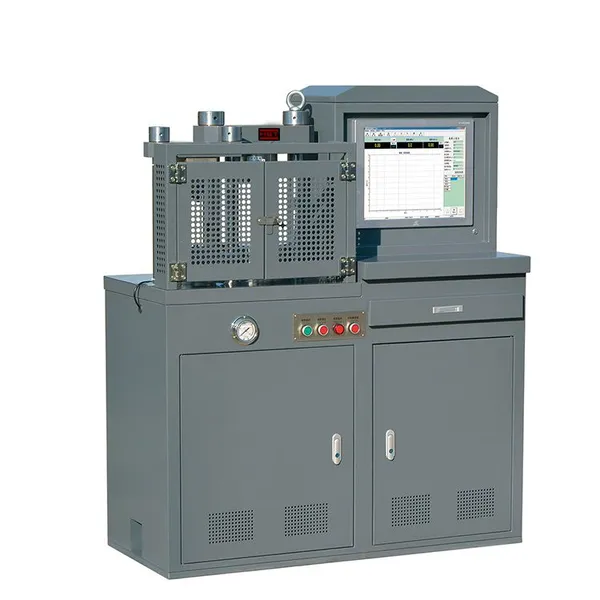

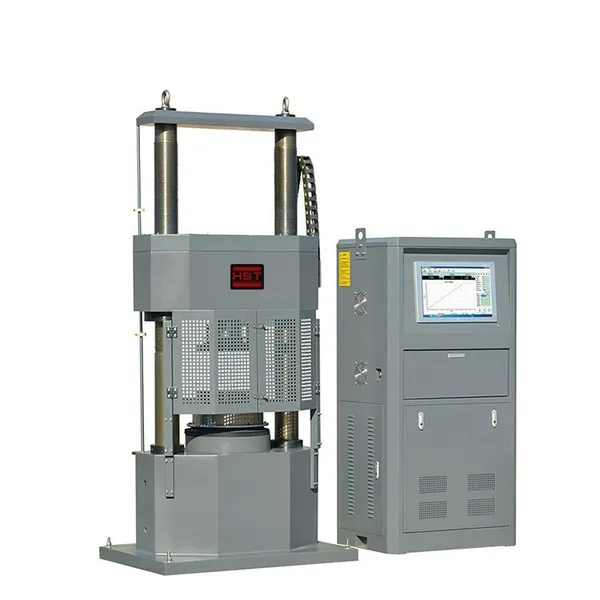

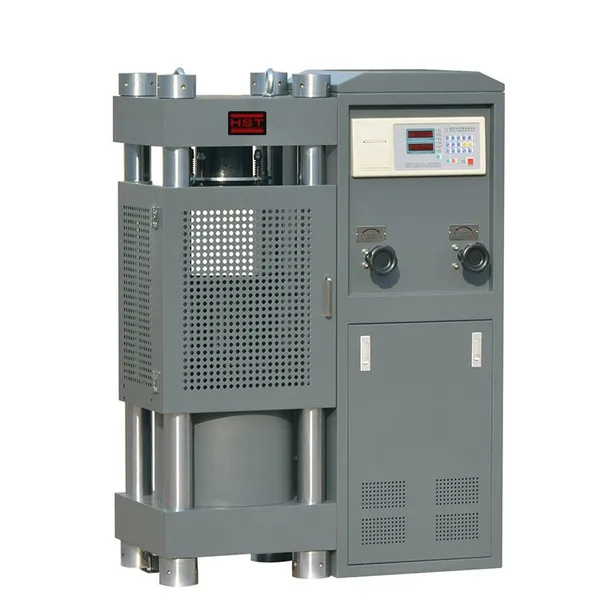

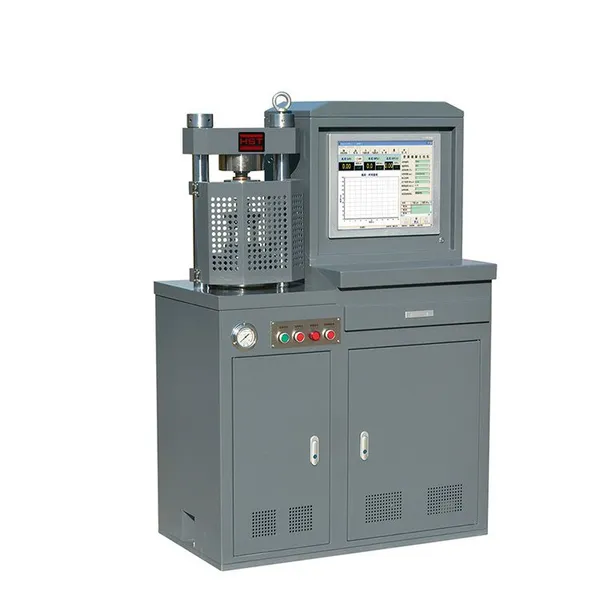

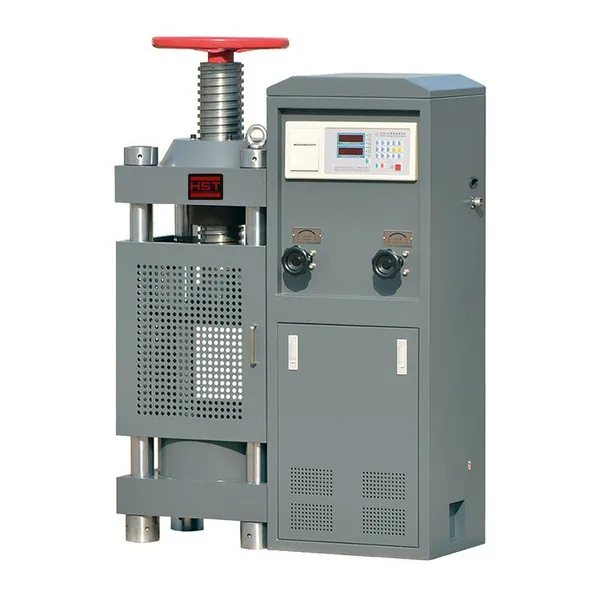

HYAW-5000 Concrete Cube And Concrete Blocks Computer Control Compression Testing Machine
Contact information: Skype:hstbetty009 Wechat/Whatsapp:86-15866781190
Application
This series compression testing machine is mainly designed for compression test of building material items, such as concrete cube, concrete blocks, cement specimen, and bricks etc, also used for compression performance test of rubber pad and top forge test of metal. With new design idea and advanced technology, this series have more advantages in appearance, operation & applications. It is the ideal test equipment for quality control at industry & mineral enterprises, education in high schools, and technology researches at scientific institutes.
Standards
It is conformed to EN 12390-3, 12390-4; BS 1881,ASTM E4, ASTM C139, ISO7500-1, EN10002-2, BS 1610, DIN51220, C1231 –AASHTO T22 -NF P18-411 -UNE 83304, 7242 etc.
Features:
l Adopt four-column frame structure, high strength and small volume
l Use ferrule type high-pressure G-class aviation joints to fasten oil pipes and hydraulic components to prevent oil leakage at the joint
l Adopt the table-top combined washer with inner aluminum and outer rubber edge to seal the outlet ends of each connecting device to prevent oil leakage from the end face seal.
l The fast and independent overload protection function can quickly protect the safety of the equipment in the event of an overload.
Main Specifications
|
Model |
HYAW-5000 |
|
Max. Load |
5000kN |
|
Control method |
Computer auto control loading process |
|
Test class |
1 class |
|
Load measuring range |
4-100% of F.S |
|
Load accuracy |
±1.0% |
|
Displacement measuring range |
0~80mm |
|
Displacement resolution |
0.001 |
|
Upper and lower compression platen (mm) |
600mm×600mm |
|
Piston stroke(mm) |
80 |
|
Distance between upper and lower plate |
1000mm |
|
Power supply |
AC380V/220V |
