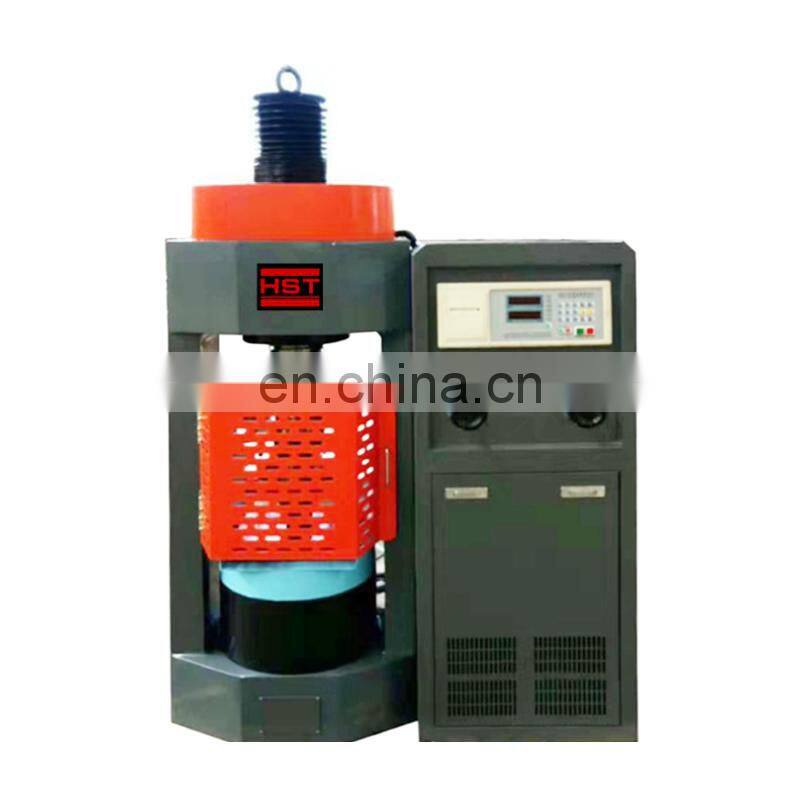

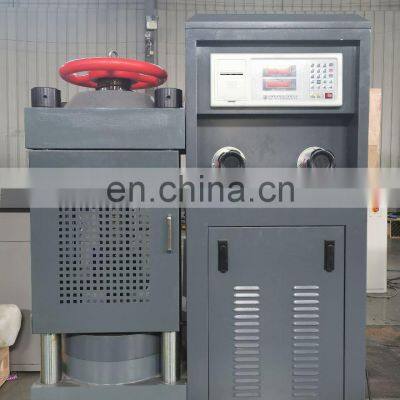

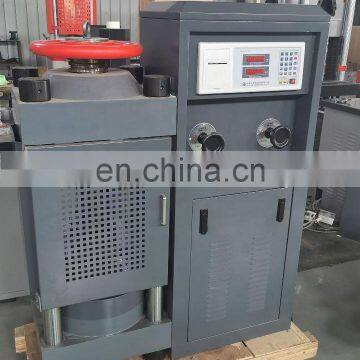

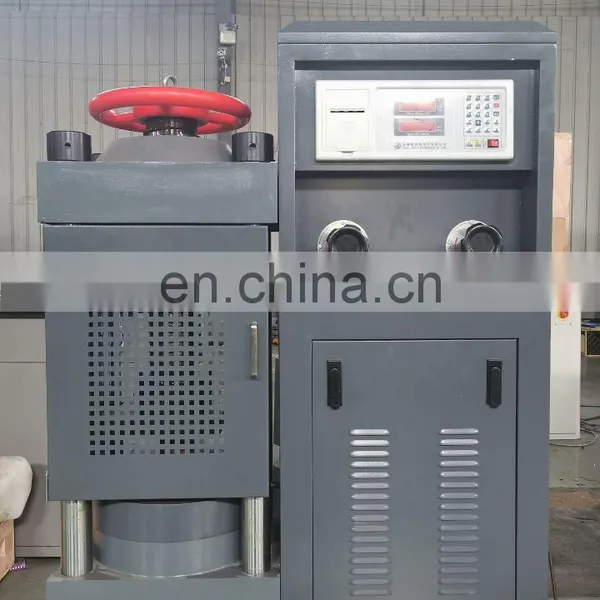

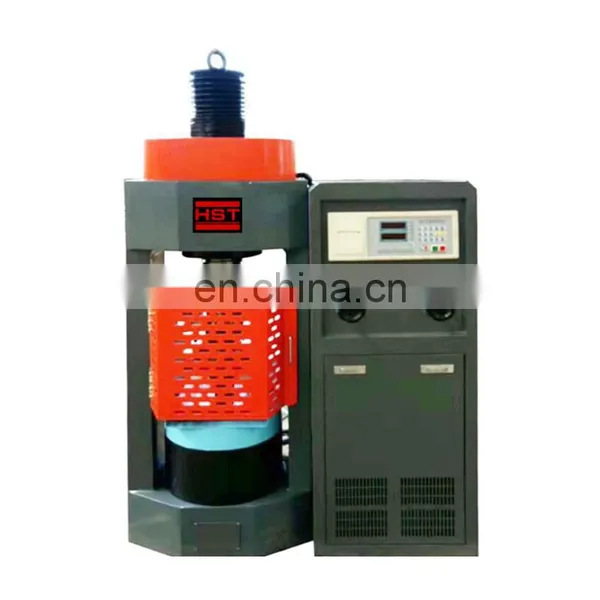

HCTM-2000/3000KN automatic concrete cube blocks/cement/brick compression testing machine
1. Application
This series compression testing machine is mainly designed for compression test of building material items, such as concrete cube, concrete blocks, cement specimen, and bricks etc, also used for compression performance test of rubber pad and top forge test of metal. With new design idea and advanced technology, this series have more advantages in appearance, operation & applications. It is the ideal test equipment for quality control at industry & mineral enterprises, education in high schools, and technology researches at scientific institutes.
2. Applicable Specimen size:
Extensive ranges for Cubic sample: 100mm, 150mm, 200mm and more;
Rectangular sample: 400x200x200mm, 400x200x400mm etc;
Cylindrical sample dia.150x300mm, dia.100x200mm, dia. 200x400mm or others as per customer required.
Remark: test space & compression platen can be customized according to specified specimen size.

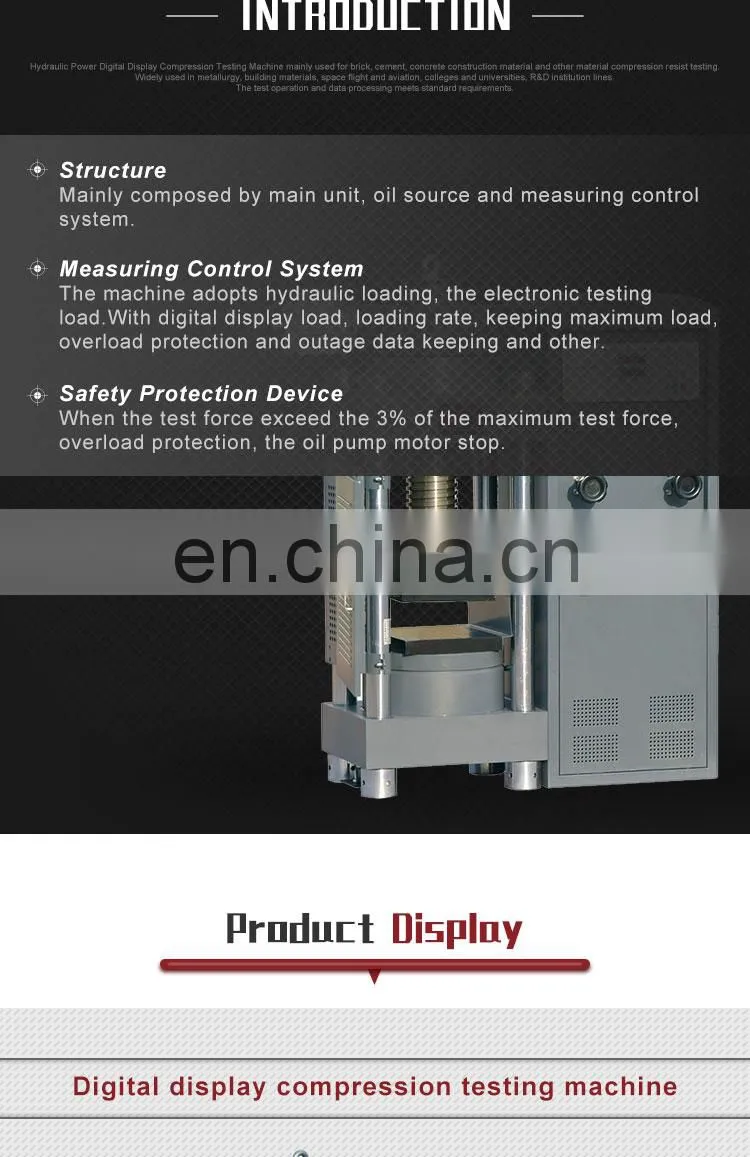

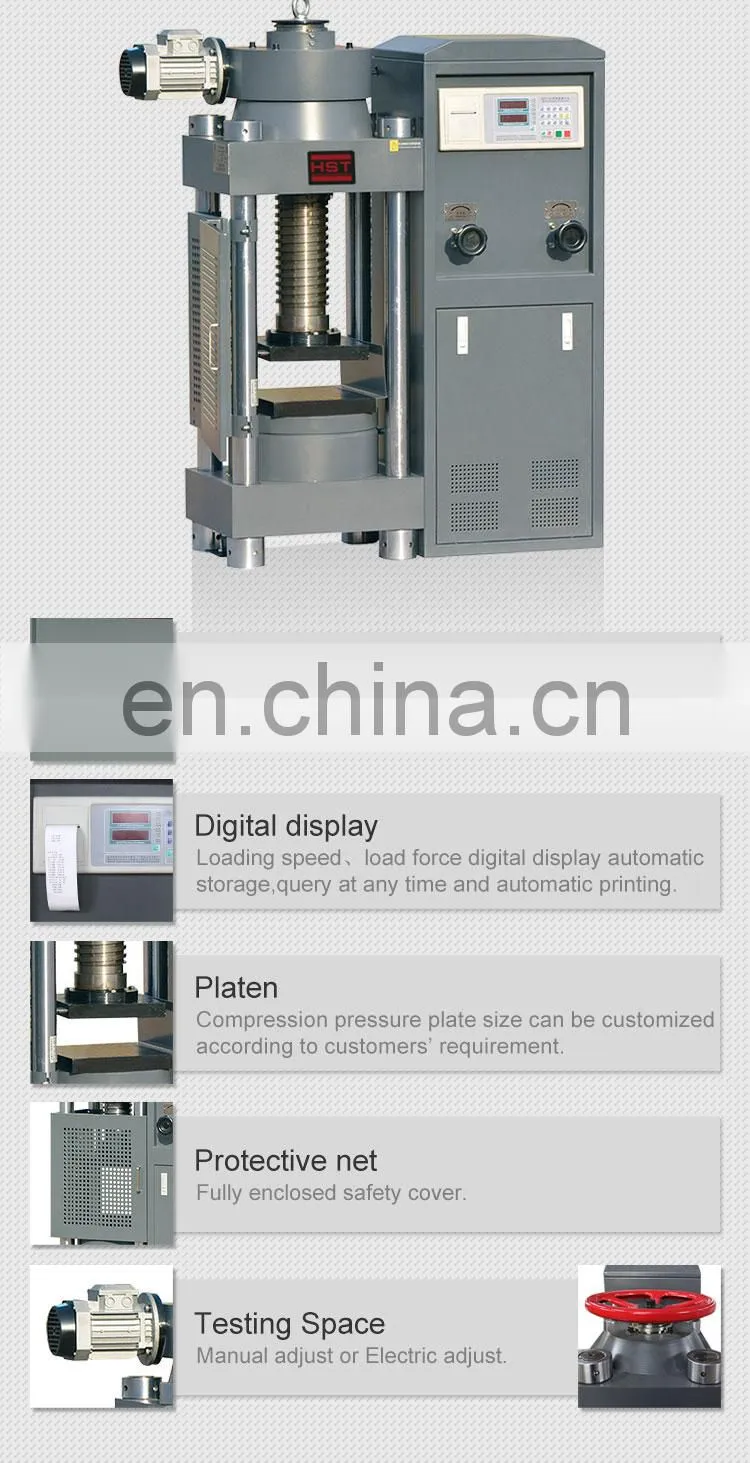

3. Product description:
Structure:
1) Welding structure provides the higher stiffness of load frame;
2) Safety covers is mounted around the columns to protect the operator, the front gate is with interlock switch to prevent machine operation when gate is open.
3) Modulus of Elasticity for concrete ( optional)
Dual-side average extensometers or compressometer with LVDT measuring device can be applied with this machine for determination of Modulus of Elasticity of concrete specimen.( optional)
4. Main Specifications
|
Model |
HCTM-2000S |
HCTM-2000SD |
HCTM-3000S |
HCTM-3000SD |
|
Max. Load (kN) |
2000 |
3000 |
||
|
Control method |
auto control loading process |
|||
|
Test space adjustment mode |
HCTM-2000/3000S manual ball screw adjust HCTM-2000/3000SD Electric ball screw adjust |
|||
|
Test class |
1 class |
|||
|
Load measuring range |
10-100% of F.S |
|||
|
Load accuracy |
±1.0% |
|||
|
The roughness value for texture of loading and auxiliary platens |
≤ 3.2μm |
|||
|
Upper compression platen (mm) |
300*300 |
|||
|
Lower compression platen (mm) |
300*300 |
300*300 |
||
|
Distance between columns(mm) |
380 |
430 |
||
|
Piston stroke(mm) |
150 |
150 |
||
|
Distance between upper and lower plate |
320mm |
410 |
||
|
Power supply |
AC380V/220V |
|||
|
Overall dimension (mm) |
1000x420x1550 |
1350x500x1680 |
||
|
Weight (kg) |
1200 |
1400 |
||
5. Configuration:
1) Main unit and oil source control cabinet- 1 set
2) High precision compression sensor-1 set
3) English version operate instrument-1pc
4) Micro printers-- 1 set
5) Specialized compression attachment---- 1set
6) Accompany documents
Machines have been upgraded normally, and the outlooking is subject to the actual delivery.
